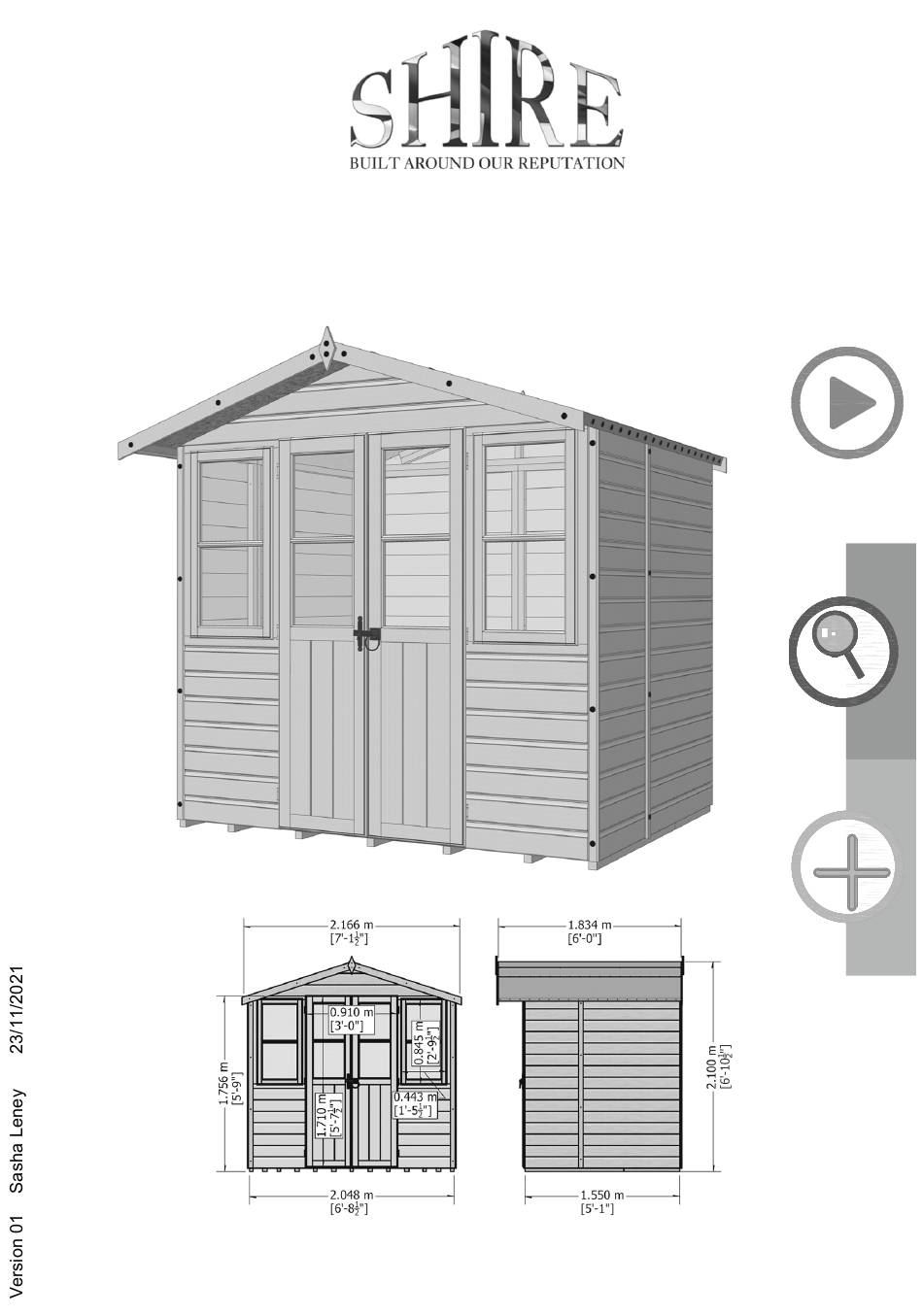

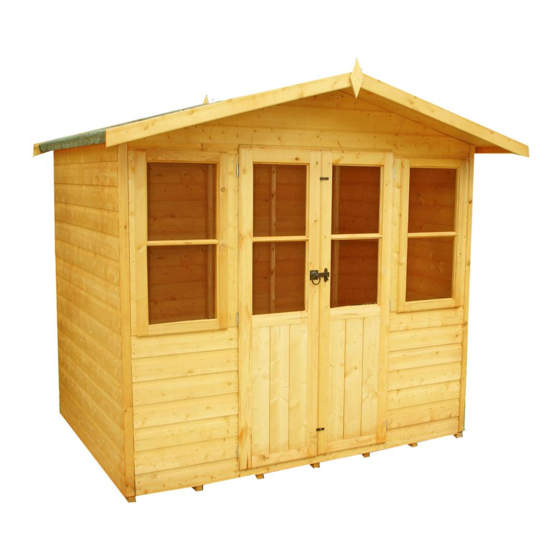

- Page 1 Batch No: 5060 Mass: 171.5 kg © 7x5 Haddon 2022 © 7x5(7) Houghton 2022 These instructions are for your safety. Please read through them thoroughly before use. PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Let’s get started... Important information... Safety Preparation of base Warranty Care, maintenance & Recycling In more detail... Parts List Fascia & Nail List Detailed Technical Drawing 08-10 Hardware Chart Before you start Assembly Instructions 12-24 For a copy of the instructions or a copy in another language please send an email or write to the address below. -
Page 3: Safety
Safety Check that you have noted all the following instructions: We advise the use of non slip protective gloves throughout the assembly process. We advise the use of steel capped protective footwear throughout the assembly process. We advise that you use a helper to hold the glass in position whilst you nail the beading in place. -
Page 4: Preparation Of Base
Base and Warranty Preparation of base... We recommend that the base onto which your building will stand should be at least 75mm larger in each direction than the total floor size of the building. Haddon without Verandah: Actual floor area of the building: 2048mm x 1550mm ... -
Page 5: Care, Maintenance & Recycling
Care, Maintenance and Recycling The 5 golden rules of care: Ensure your base is level and firm. Ensure the building is not sitting directly on the ground using damp proof membrane or the optional timber base. Ensure every piece of timber and surface, especially that is hidden upon assembly, is treated with a top quality wood preservative at least twice (before assembly). -
Page 6: Parts List
Stacked Parts List Description (part No ) - Qty... -
Page 7: Fascia & Nail List
Fascia and Nail Bag Parts List Description (part No ) - Qty... -
Page 10: Hardware Chart
Building Photographs It will be greatly appreciated if you could forward images of your completed building to - sales@shiregb.co.uk. Nail bag contents Description (part No ) - Qty Hardware Chart 16mm Panel Pins (A0024) x 96 Scale 1:1 8mm Felt Nail (A0266) x 112 40mm Round Head Nail (A0025) x 122... -
Page 11: Before You Start
Before you start... Things to check before you start: Ensure your base is ready – See page 4. Check all parts as listed in the parts lists. Read the instructions fully before starting work. Follow all the health and safety guidelines. When you see the drill icon Only ever drill through the first piece of framework which will be a... -
Page 12: Assembly Instructions
Assembly instructions: These instructions are for your safety. Please read through them thoroughly before use. Treat all the parts before assembly – see page 5! The “Panel layout” is showing you how to position the panels. GB-IE The Plain 990 and 310 Panels FIT INSIDE THE PLAIN 990 AND 560 PANELS! A0004 A0004... - Page 13 Nail the Joiners 34x46x230 (A0002) to the larger Floor Panel (A0001) as below. GB-IE Use 2x 40mm Nails (A0025) per joiner. Make sure you nail no less then 20mm from the edge. Place the other Floor Panel (A0003) onto the joiners and nail with 2x 40mm Nails as before.
- Page 14 Drill one Plain Panel 990 (A0004) as below. Make sure the bottom hole is inline with the floor GB-IE bearer. Drill one Plain Panel 560 (A0005) as below. Place the 560 into the corner, so that the cladding overlaps the floor. Push the 990 panel up to it and fix with 3x 60mm Screws (A0035).
- Page 15 Drill another Plain Panel 990 (A0004) as below, making sure the bottom hole is inline with the floor bearers. Fix with 3x 60mm Screws (A0035) using the pilot holes drilled in the other 990 panel. Drill the other Plain Panel 560 (A0005) as below. Fix with 3x 60mm Screws (A0035) using the pilot holes drilled. 5 mm Plain Panel 990 (A0004)x01...
- Page 16 Drill the last two Plain Panels 990 (A0004) as below. GB-IE Fix to your building with 3x 60mm Screws (A0035) in each, using the pilot holes drilled in the 560 panels. Plain Panel 990 (A0004)x02 60mm Screws (A0035)x06 DO NOT FIX WALLS TO FLOOR UNTIL ASKED...
- Page 17 Drill the two Window Panels (A3038) as below. Make sure the bottom holes are inline with GB-IE the floor bearers. Fix with 3x 60mm Screws (A0035) in each. Make sure the aperture measures 910mm top and bottom. Window Panel (A3038)x02 60mm Screws NOTE (A0035)x06...
- Page 18 GB-IE Drill the two Gables (A0007) as below. Make sure the gables can be screwed into the wall panels underneath. Fix the back gable with 4x 60mm Screws (A0035) and the front gable with 2x 60mm Screws (A0035). Gable (A0007)x02 60mm Screws (A0035)x06 Place the Roof Bearers 34x34 (A0008) onto your building into the slots in the gables.
- Page 19 Nail one Roof Edging 34x34 (A2808) to each OSB 1125x1828 (A0009-1) using 7x 40mm GB-IE Nails (A0025). Repeat so you have two Roof Panels. Place them onto your building as below, so that the edge is flush with the cladding on the back gable. Nail with 6x 40mm Nails (A0025) along each of the roof bearers and the sides, making sure the nails go into the walls.
- Page 20 Hang the Primary and Slave Doors (B0014) and (B0015) as below. GB-IE Use 1x 25mm Screw (A0032) per hinge first to align the doors. Once happy, finish the rest of the screws into the hinges. Test doors open and close correctly. Tip: Use coins or something similar as packing under the doors to help level them out.
- Page 21 GB-IE Make sure everything is square and true, Fix the walls to the floor with 60mm Screws (A0035) using the pilot holes drilled previously. 60mm Screws (A0035)x08 GB-IE Nail the Coverstrips 12x46x1720 (A0016) to your building as below. Fix with 4x 40mm Nails (A0025) in each. Coverstrip 12x46x1720 (A0016)x07 40mm Nails...
- Page 22 3 strips of Felt 2.1m (A0017) have been supplied. Fit the first two strips as below, Make sure there is an even overhang front and back, pull tight and secure with 8mm Felt Nails (A0266) approximately 100mm apart. Repeat with the top. Felt Strip 2.1m (A0017)x03 8mm Felt Nails...
- Page 23 Fix the Fascia 12x70x1180 (A0018) with 3x 40mm Nails (A0025) in each as below. Then fix the Diamonds (A0019) using 2x 40mm Nails (A0025) in each. Fascia 12x70x1180 (A0018)x04 Diamond (A0019)x02 40mm Nails (A0025)x16 Place the Window Casements (B0013) into the window panel as below. GB-IE Fix the casement to the window panel using 1x 60mm Screw (A0035) per side as below.
- Page 24 GLASS HANDLE WITH CARE, DANGER OF CUTTING GB-IE Using a helper to hold the Glass 360x373 (A2554) whilst you fit the Beading 377 ( ) and Beading 364 (A3147) using 3x 16mm Panel Pins A0024) in A0021 each in the Windows. Fit the Glass 323x373 (A0366), Beading 377 (A0021) and Beading 327 (A0074) within the doors using 3x 16mm Panel Pins (A0024) in each.
