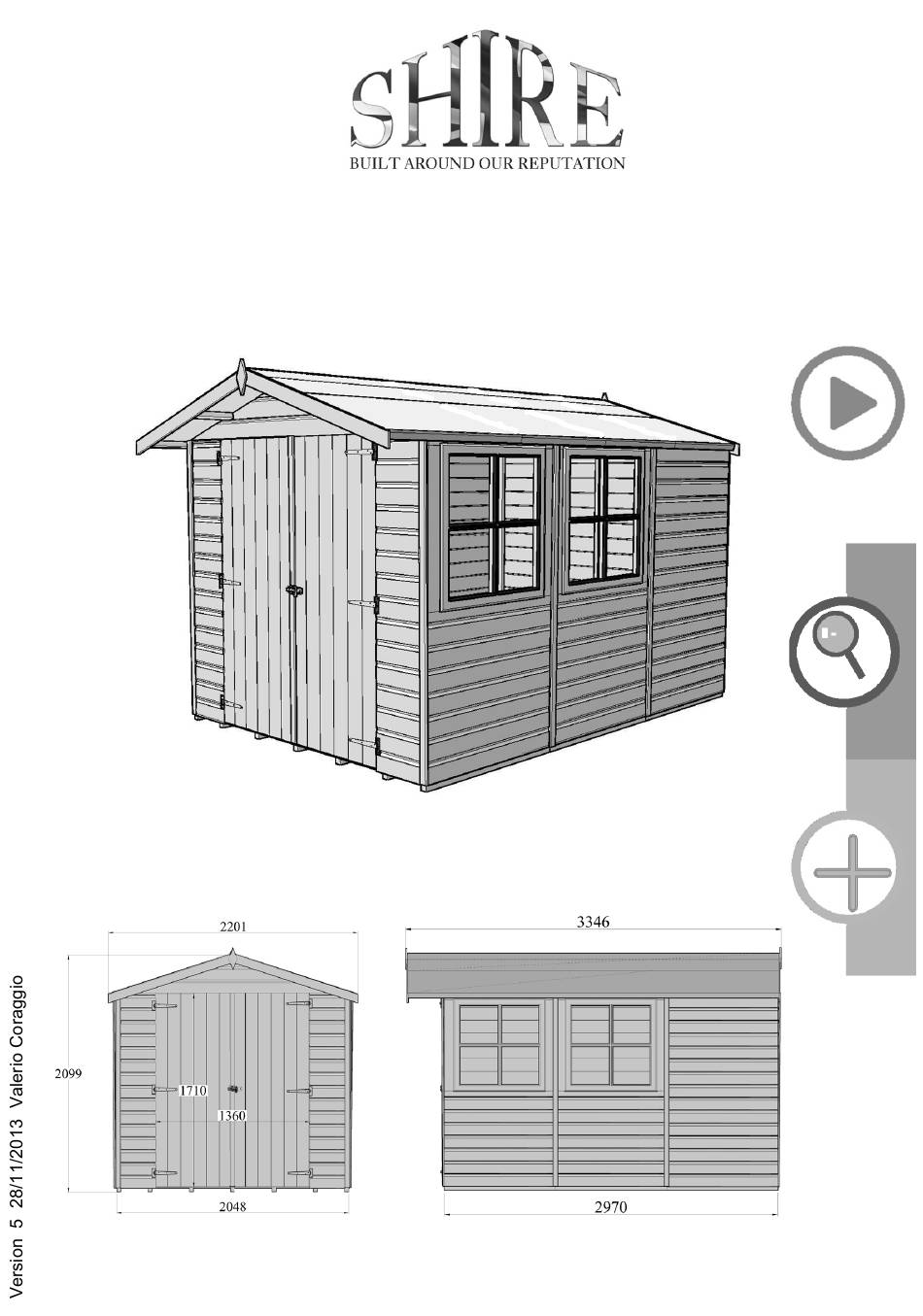

Batch No.3943
© Guernsey 7x10
© 7bi10 DDA
These instructions are for your safety. Please read through them thoroughly before use .
PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Guernsey 7x10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shire Guernsey 7x10

  • Page 1 Batch No.3943 © Guernsey 7x10 © 7bi10 DDA These instructions are for your safety. Please read through them thoroughly before use . PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE...
  • Page 2: Table Of Contents

    Let’s get started... Important information... Safety Preparation of base Warranty Care, maintenance & Recycling In more detail... Parts List Fascia & Nail List Hardware chart Before you start Detailed Technical Drawing 10-13 Assembly instructions 14-32 For a copy of the instructions or a copy in another language please send an email or write to the address below.
  • Page 3: Safety

    Safety Check that you have noted all the following instructions: We advise the use of non slip protective gloves throughout the assembly process. We advise the use of steel capped protective footwear throughout the assembly process. We advise that you use a helper to hold the glass in position whilst you nail the beading in place.
  • Page 4: Preparation Of Base

    Base and Warranty Preparation of base... We recommend that the base onto which your building will stand should be at least 75mm larger in each direction than the total floor size of the building.  Actual floor area of the building: 2048mm x 2970mm ...
  • Page 5: Care, Maintenance & Recycling

    Care, Maintenance and Recycling The 5 golden rules of care: Ensure your base is level and firm. Ensure the building is not sitting directly on the ground using damp proof membrane or the optional timber base. Ensure every piece of timber and surface, especially that is hidden upon assembly is treated with a top quality wood preservative at least twice (before assembly).
  • Page 6: Parts List

    Stacked parts list Description -- (part No ) - q.ty: Glazing (A0055) x08 Roof panel (A0045) x06 Floor Joiners (A0002) x12 46mm 770mm 355mm Roof panel (A0046) x02 A0001) Floor ( Truss block (A0042) x04 2048mm 990mm 44x44mm Plain Panel Plain Panel (A0007) x02 Cover strips (A0016) x10...
  • Page 7: Fascia & Nail List

    Fascia & nail bag contents Description -- (part No ) - q.ty: Diamond Roof support Window Hinges (A0019) x02 (A0011 (A0013) x04 34mm Door stop Fascia Tee hinge (A0051) x02 (A0018) x04 (A0049) x06 28mm Beading Door stop Door Bolt (A0050) x01 (A0056) x32 (A0014) x02...
  • Page 8: Hardware Chart

    Nail bag contents Description -- (part No ) - q.ty: Hardware Chart 08mmFelt Nail Scale 1:1 (A0266) x170 16mm Panel Pin (A0024) x64 40mm Round head nail (A0025) x246 25mm Posi-drive screw (A0032) x110 60mmPosi-drive screw (A0035) x71 80mm Posi-drive screw (A0036) x24...
  • Page 9: Before You Start

    Before you start Things to check before you start: Ensure your base is ready– See page 3 Check all parts as listed in the parts lists Read the instructions fully before starting work Follow all the health and safety guidelines When you see the drill icon Only ever drill through the first piece of framework which will be a...
  • Page 10 A0013 A0055 70FC- A0018 A0044 A0046 A0037 A0019 A0039 A0056 A0046 34S-309 A0043 A0038 34S-309 A0011 28R-1698 A0051 A0007 A0050 A0014 & A0052 A0006 A0004 A0049 44C- A0016 A0016 A0065 A0053 A0006 A0049 A0001 A0048...
  • Page 11: Detailed Technical Drawing

    Detailed Technical drawing 1:30 A0018 A0054 A0019 A0054 A0045 A0045 A0045 A0047 A0007 A0004 34S-1976 A0044 A0004 A0004 A0004 A0001 A0004 A0001 A0037 44C-1720 A0016 A0002...
  • Page 12 75mm A0040 A0040 A0041 A0042 A0042...
  • Page 13 If we use your image we will pay you a one off payment of £100.00 for the right to do so. E-mail your pictures to: sales@shiregb.co.uk Mail: Building photographs, Shire Brigstock Road Wisbech Cambridgeshire PE13 3JJ...
  • Page 14: Assembly Instructions

    Assembly instructions: These instructions are for your safety. Please read through them thoroughly before use. Treat all the parts before assembly – see page 5! GB-IE The hinges fit the top of the window. Try the window in position to check that you have it the correct way around.
  • Page 15 Casement stay and pins ”A0038” must fit together loosely. Position as shown. GB-IE Fix the casement stay to the window insert first. Then mark and fix the pins as shown. Casement set (A0038) x02 25mmScrew (A0032)x12 Fix the hinges as shown so the screws go into the horizontal framework on the back of the door. GB-IE Doors (A0048)x 02...
  • Page 16 Position the roof edging under the short edge of the roof panels "A0045 & A0046" and fix as shown. GB-IE Roof Panel (A0045)x06 Roof Panel (A0046)x02 34mm Roof Edging (A0044)x02 34mm Roof Edging (A0047)x06 40mm Nails ((A0025)x32 Read Section ahead. See pages 12/13 for detailed drawing. Drill the truss components as shown in steps 6, and use the gable panel "A0007"...
  • Page 17 GB-IE 2 truss assemblies required. Drill positions for step 6. Truss Frame (A0040)x04 Truss Brace (A0041)x02 80mm Screw (A0036)x12 GB-IE Truss Frame (A0040)x04 Truss Brace (A0041)x02...
  • Page 18 Position the floor joiners “A0002” widest side down so they protrude half out from 1 floor, and fix with GB-IE 3x40mm nails. Push the next floor over the joiners and flush with the first floor then attach as before. Repeat with the last floor. Floor panel A0001)x03 46mm...
  • Page 19 Note: the end panels to be fix inside the side panel! GB-IE Doors go at the open end of the floor . The door end panels and the opposite end panels FIT INSIDE THE SIDE PANELS! A0004/A0037 A0004/A0037 A0004/A0037 Panel layout A0004/A0037 A0004/A0037...
  • Page 20 A panel "A0004" for the side goes into the corner, the cladding overlaps the floor, push another GB-IE panel"A0004" for the end up to it. Drill 3 places and fix with 60mm screws. Fix the walls to the floor with 1x60mm screw x panel. Plain panels (A0004) x05 60mm Screws...
  • Page 21 Continue adding and fixing the walls as before. GB-IE Plain panels (A0004) x01 A0004 A0037 REVERSE VIEW A0004 Window panel No drilling (A0037)x02 60mm Screws (A0035)x24???? A0037 No drilling...
  • Page 22 Continue adding and fixing the walls as before. GB-IE INTER- Plain Panel VIEW (A0006)x02 60mm Screws (A0035)x24??? A0006-Drilling A0006-Drilling A0006-Drilling from inside from inside from inside A0006 A0006...
  • Page 23 Align the Gable framework with the panels below. GB-IE Drill 4 holes in each gable and fix with 60mm screws. Make sure that the gap for the door is: 1360mm! Gable panels (A0007) x02 60mm Screws (A0035)x08 1360mm...
  • Page 24 Mark 75mm down from the top, fix the truss block"A0042" central to the 2 panels ensuring the fixing GB-IE screws go diagonally with one in each panel framework (four places). 75mm Truss block (A0042)x04 80mmScrew (A0036)x08 Drill 2 holes in each truss and fix into the truss blocks “A0042” with 80mm screws. GB-IE STEP 8 80mmScrew...
  • Page 25 Drill and fix the roof bearers into the trusses and gables at each end with 60mm screws. GB-IE 34mm Roof bearers (A0043)x04 34mm Roof edging (A0044)x04 60mm Screws (A0035)22???? GB-IE Use the marks from step 08 to help align the roof timbers. Also drill and screw the top pair of bearers together (4 places).
  • Page 26 Fix the first pair of roof panels “A0045” flush with the back With 3 nails per roof bearer/ wall. GB-IE The “A0046” roof panels must be at the front. Roof Panel A0045 Step 5: (A0045) x 02 40mm Nail (A0025)x18 Continue fitting the remaining roof sheets as before working forwards.
  • Page 27 Screw the two short roof bearers in position from above. GB-IE Make sure that the gap for the door is: 1360mm! 34mm Roof support (A0011) x02 1360mm 25mmScrews (A0032)x04 Carefully hang the doors using 1 screw per hinge to ensure they are square first. GB-IE Fix the panels to the floor with 1x60mm screw x panel.
  • Page 28 Fit the door stop strip flush with the outside edge of the framework not the cladding. GB-IE 28mm Door stop (A0051)x 02 28mm Door stop (A0050)x01 40mm Nail (A0025)x18 Fit a bolt to the top and bottom of the secondary door with a bolt shim between the bolt and the door GB-IE and then drill a hole for the bolt shaft.
  • Page 29 To hold the pad bolt, fix a door block “A0065” to the end of the middle framework piece of each door where it meets GB-IE the other door. Fix the pad bolt so the screws go into both the horizontal framework and door blocks on the back of the doors.
  • Page 30 GB-IE 3 Strips of felt have been supplied. Fit the 2 lower strips first folding the felt over the roof edging, with an even overhang front and back then secure with a couple of nails at the top to hold the felt in position and at the bottom nail at approximately 100mm centres.
  • Page 31 Fit cover strips at each corner and across the joins with 4 nails each. GB-IE 44mm Cover strip A0016 40mm Nail (A0025) x36 SIDE VIEW FRONT VIEW REVERSE VIEW...
  • Page 32 Drill and fix the Fascia's with 3 nails each and the diamonds with 2 nails each. GB-IE Fascia (A0018)x04 Diamond (A0019)x02 40mm Nail (A0025) x16 GLASS HANDLE WITH CARE DANGER OF CUTTING GB-IE USE GLOVES, SUITABLE SHOES AND CLOTHING. Swap the beading around to get the best fit. Fit with 2 panel pins each Get a helper to hold the glass whilst you fit the beading.
