Brigstock Road, Wisbech PE13 3JJ
TOOLS REQUIRED
Hammer
●
Step ladder
●
Sand paper
●
Battery-powered drill/screwdriver
●
8mm drill
●
Pencil
●
Tape measure
●
Gloves
●
Sharp knife and saw
●
IMPORTANT!
PLEASE READ PRIOR TO ASSEMBLY OF
THE BUILDING
EVERY PRECAUTION IS TAKEN TO
ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR
POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL
SURFACES FOR THE FOLLOWING:
1 RAISED GRAIN, SPLINTERS: sand
down timber to smooth finish
2 NAIL/SCREW/PIN HEADS PROUD: tap
home to be flush with surface of timber
3 DAMAGED SCREW HEADS
RESULTING IN SHARP SPLINTERS OF
METAL: replace
4 SHARP ENDS OF NAILS/ SCREWS/
PINS PROTRUDING THROUGH THE
PANEL: remove and reposition.
5 ENSURE ALL PARTS ARE SECURED
AGAINST REASONABLE FORCE:
remove and refit
6 ENSURE THERE ARE NO LOOSE
PARTS: remove and refit/discard
We recommend that protective
gloves be worn throughout
PLEASE NOTE
Wood is a natural product and is therefore
prone to changes in appearance, including
some warping, movement and splitting,
particularly during unusual climatic conditions
(long hot or wet spells of weather). As a natural
occurrence this is not covered by a guarantee.

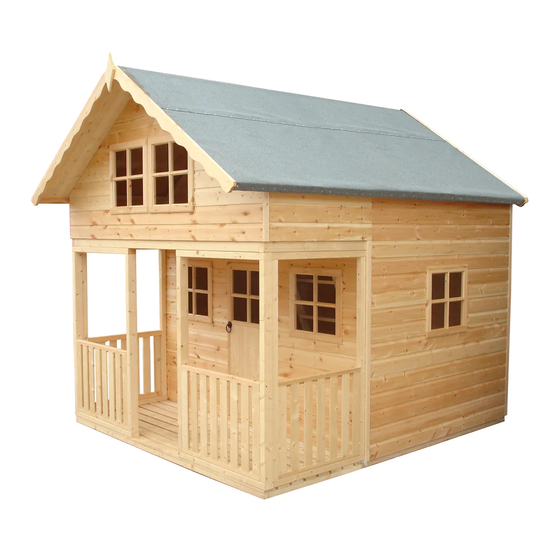

Assembly of Lodge Playhouse
Adult Assembly Only - do not attempt to modify this building
Thank you and congratulations on the purchase of your Shire garden building.
We believe that this product will give you many years of excellent service. This is a
natural product manufactured to a high standard therefore if you have any queries or
experience any difficulties then please contact our customer service hotline on
01945 465 295.
Normal office hours: 8.30 am to 5.00 pm Monday to Friday.
Preparation of base
We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Floor area of the building: 2390x2690 (8'x9') including verandah.
Total height clearance: 2606mm
The chosen position in your garden for the siting of the building should be excavated to
a depth of 75mm to allow a base of sand, on to which paving slabs can be evenly laid -
THEY MUST BE LEVEL AND FIRM.
Treatment/care of your Garden Building
Treat with a suitable decorative wood finish immediately. We recommend that all timber
pieces be treated again prior to assembly and again within 3 months of assembly. We
further recommend that all pieces are treated again at least annually or as frequently as
the instructions on the product used recommends.
We would suggest that all wall panels be treated in an upside-down position to allow
the finish/treatment to ingress into the tongue and groove jointing.
We would also remind you that you would rarely (if ever) be able to re-treat the
underside of the floor following assembly. We strongly recommend that the underside
of the floor is treated an absolute minimum of twice (not including pre-treatment).
Garden buildings are not waterproof, therefore on assembling building we
recommend using a silicon based sealant between wall panels and between wall
panels and floor.
1842
1182
ROOF PANEL - QTY 2
ROOF PANEL - QTY 2
2390
FRONT GABLE
1404
2390
FRONT PANEL
1828
1722
WINDOW SIDE PANEL
PLAIN SIDE PANEL
QTY
DESCRIPTION
4
Frame 44x44x1319mm
4
Frame 44x70x1319mm
4
Frame 44x44x820mm
4
Frame 44x70x889mm
24
Glazing
96
Beading

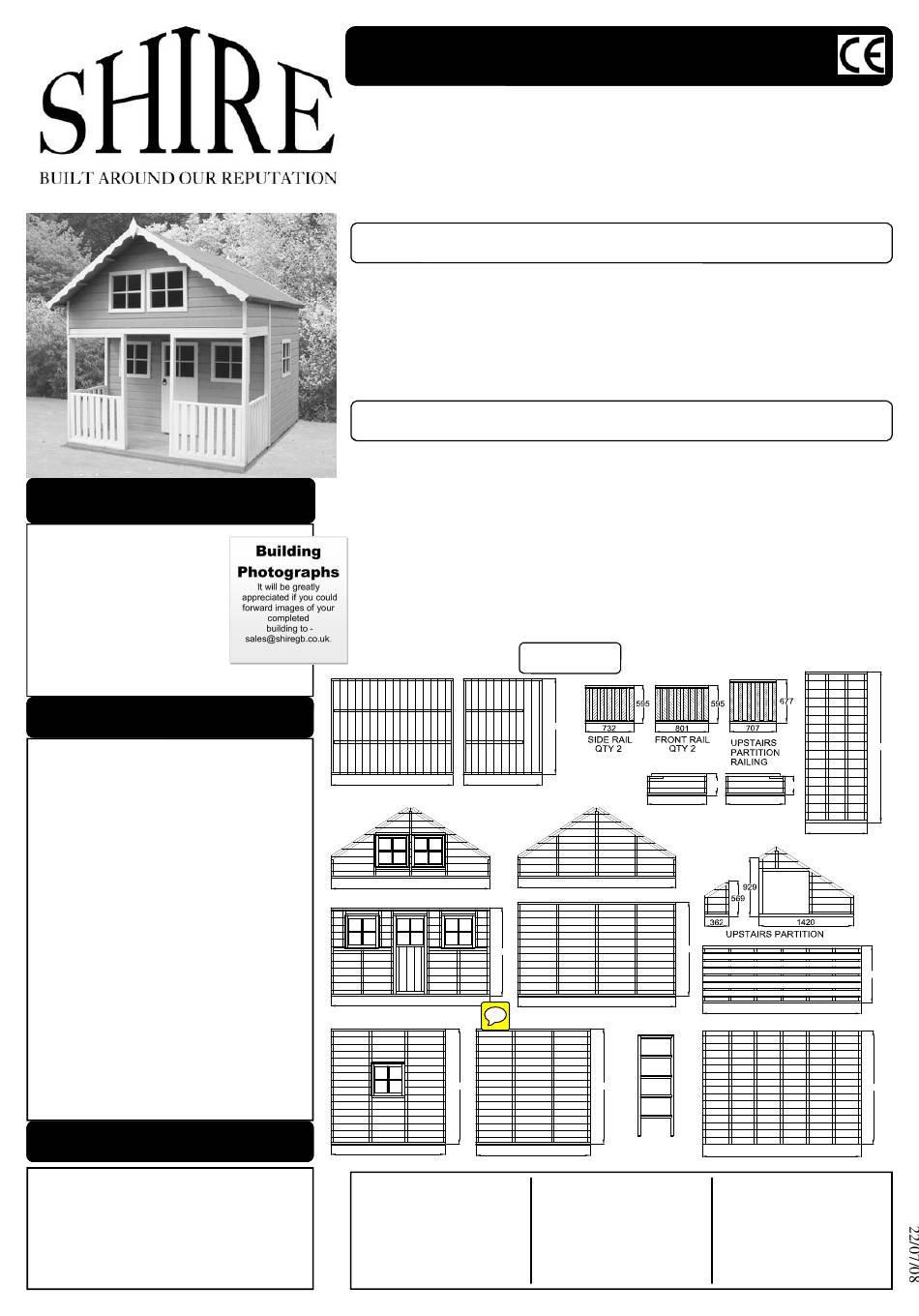

EXTERNAL VIEW OF PANELS
Parts List
1514
900
LH UPSTAIRS
SIDE PANEL
2390
BACK GABLE
1488
2390
BACK PANEL
1828
LADDER
1722
1
Ring handle
1
Wooden knob
2
Vents
2
Fascia profiled
2
Fascia plain
2
Diamonds
52
80mm screws
2390
342
304
900
RH UPSTAIRS
SIDE PANEL
934
UPSTAIRS FLOOR
900
2390
VERANDAH FLOOR
1790
2390
FLOOR PANEL
104
60mm screws
1
45mm flat head screw
4
25mm black screws
50
40mm nails
250
Felt nails
192
15mm panel pins
2
Felt roll 6.4mtr x 1mtr
