Summary of Contents for Shire 8x8 Sun Pent

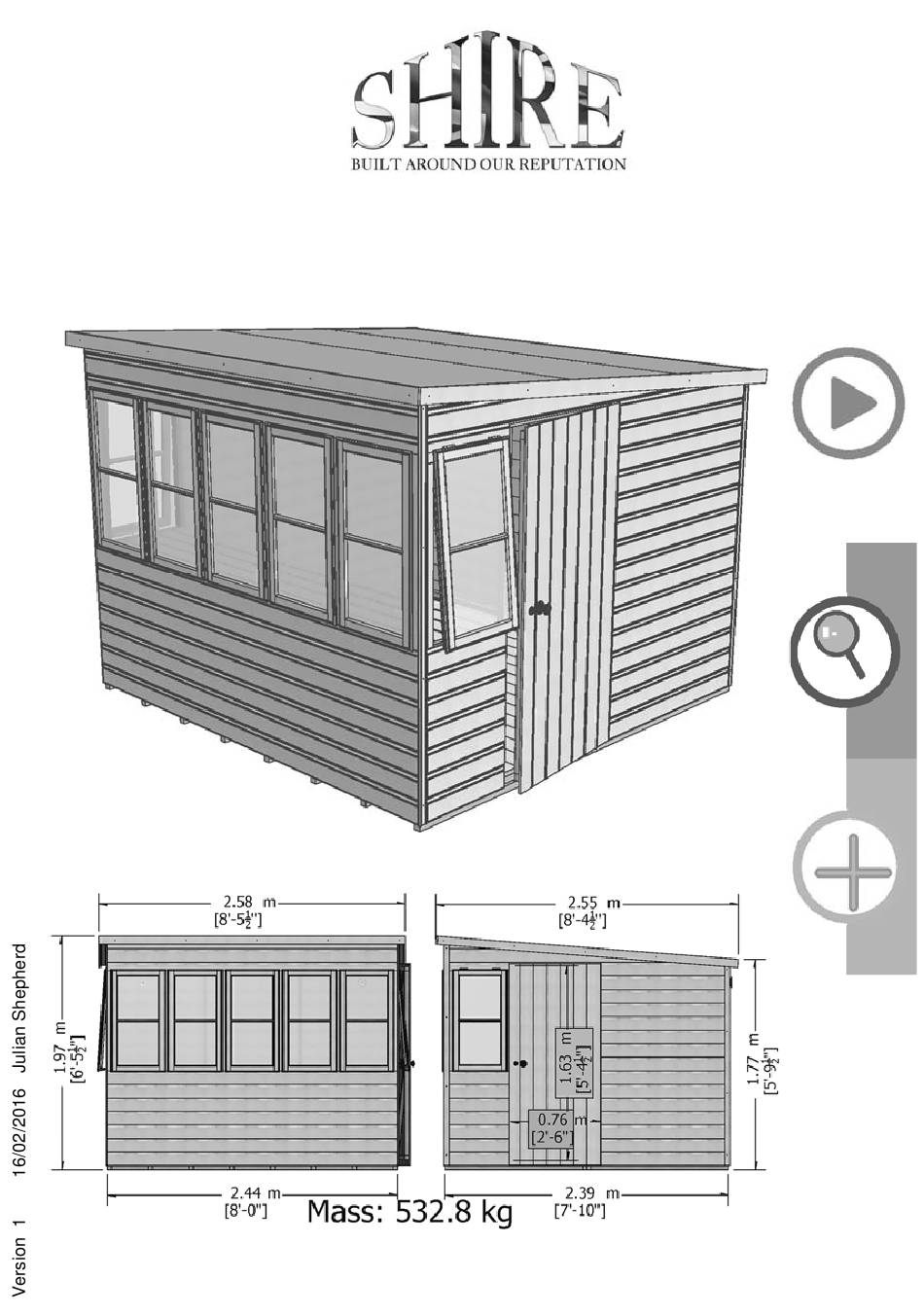

- Page 1 © 8x8 Sun Pent These instructions are for your safety. Please read through them thoroughly before use. PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Let’s get started... Important information... Safety Preparation of base Warranty Care, maintenance & Recycling In more detail... Parts List Fascia & Nail List Hardware chart Before you start Detailed Technical Drawing 10-11 Assembly instructions 12-20 For a copy of the instructions or a copy in another language please send an email or write to the address below. -
Page 3: Safety
Safety Check that you have noted all the following instructions: We advise the use of non slip protective gloves throughout the assembly process. We advise the use of steel capped protective footwear throughout the assembly process. We advise that you use a helper to hold the glass in position whilst you nail the beading in place. -
Page 4: Preparation Of Base
Base and Warranty Preparation of base... We recommend that the base onto which your building will stand should be at least 75mm larger in each direction than the total floor size of the building. Actual floor area of the building: 2444mm x 2390mm ... -
Page 5: Care, Maintenance & Recycling
Care, Maintenance and Recycling The 5 golden rules of care: Ensure your base is level and firm. Ensure the building is not sitting directly on the ground using damp proof membrane or the optional timber base. Ensure every piece of timber and surface, especially that is hidden upon assembly is treated with a top quality wood preservative at least twice (before assembly). -
Page 6: Parts List
Description Stacked Parts List (part No ) - Qty Building Photographs It will be greatly appreciated if you could forward images of your completed building to - sales@shiregb.co.uk. -
Page 7: Fascia & Nail List
Description Fascia Bag Parts List (part No ) - Qty... -
Page 8: Hardware Chart
Description -- Nail bag contents (part No ) - q.ty: Hardware Chart Scale 1:1 13mm 8mmFelt Nail (A0023) x 152 16mm Panel Pin (A0024) x112 40mmRound head nail (A0025) x 16 Black 25mm Posi-drive screw (A0031 ) x04 60mmPosi-drive screw (A0035) x52... -
Page 9: Before You Start
Before you start... Things to check before you start: Ensure your base is ready – See page 4 Check all parts as listed in the parts lists Read the instructions fully before starting work Follow all the health and safety guidelines. When you see the drill icon Only ever drill through the first piece of framework which will be a... -
Page 12: Assembly Instructions
Assembly instructions: These instructions are for your safety. Please read through them thoroughly before use. Treat all the parts before assembly – see page 5! Drill ONE of the A1686 floor panels only along the long piece of framework. Push the two floor together and screw into place making sure they are flush and true to each other.. GB-IE Turn the floors over and place on your base. - Page 13 Do not fix to the floor until asked GB-IE The Back panel A1689 is positioned first on top of and is the same length as the Floor A1686. The cladding overlaps the floor. Push the End panel A1690 up to the back panel. Repeat with the door panel.A1691.
- Page 14 The Front panel A1688 fits in front of the sides running the entire length of the floor. GB-IE The front panel only requires drilling ready to fix to the floor later Again make sure the holes are inline with the floor bearers. 5 mm Front Panel (A1688)x01...
- Page 15 1 Drill one 5mm hole all the way through the roof panel 17mm in from each end of the support frame. Position the Roof A1687 so the support frame sits on top of the ends frame and the slot goes over the GB-IE cladding.
- Page 16 3 Strips of felt have been supplied. Fit the lowest strip first folding the felt over the roof edging, GB-IE at the back then secure with a couple of nails at the top to hold the felt in position nail the sides to the wall with 4 nails each and at the bottom nail at approximately 100mm centres.
- Page 17 Fit cover strips at each corner and 4 nails each. GB-IE 46mm Front Cover strip (A2575) x02 46mm Back Cover strip (A0016) x02 40mm Nails (A0025)x16 GB-IE Fix the panels to the floor with 2x60mm screws per panel using the holes previously drilled. NOTE make sure the screws go into the floor bearers.
- Page 18 Fit the side fascia's A2894 first so the front edge is flush with the felt at the corner GB-IE Drill and fix the Fascia's with 4 nails each side . Drilling prevents splitting. The front fascia A2556 fits across the end fascia’s. Drill and fix the Fascia with 5 nails . 1 mm 70mm Side Fascia...
- Page 19 The Bench Legs A1692-1 are fitted with the narrow side to the floor. The outer pair are pushed up to the front and end walls drill 2 holes at the bottom and two at the top inline GB-IE with the end framework. The middle leg is fitted to the framework in the middle of the front panel with two screws.
- Page 20 Drill 2 holes in each of the top face of the legs. GB-IE Position the Bench top A1692 and screw into position. Bench Top (A1692) x01 60mm Screws (A0035)x06 Push the Safety vents A0476 into the holes in the back panel.– GB-IE Safety vent (A0476) x02...
