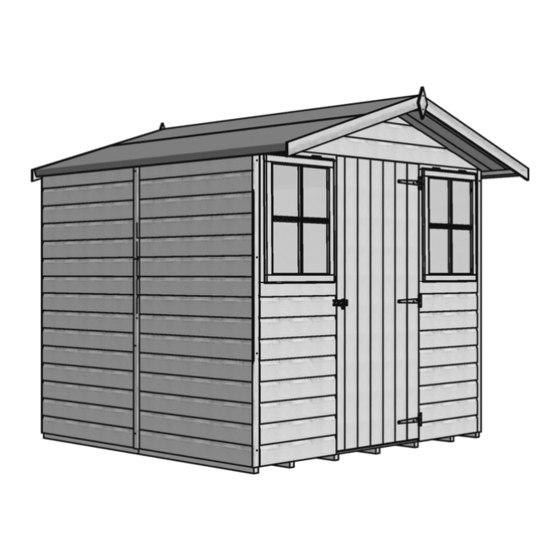

- Page 1 © Casita 2016 7x7 These instructions are for your safety. Please read through them thoroughly before use . PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Let’s get started... Important information... Safety Base and positioning Warranty Care maintenance & Recycling In more detail... Hardware chart Parts List 07-08 Before you start Detailed Technical Drawing 10-11 Assembly instructions 12-24 For a copy of the instructions or a copy in another language please send an email or write to the address below. -
Page 3: Safety
Safety Check that you have noted all the following instructions We advise the use of non slip protective gloves throughout the assembly process. We advise the use of steel capped protective footwear throughout the assembly process We advise that you use a helper to hold the glass in position whilst you nail the beading in place We advise the use of protective headwear and safety goggles throughout the assembly process... -
Page 4: Base And Positioning
Base and Warranty Preparation of base... We recommend that the base onto which your building will stand should be at least 75mm larger in each direction than the total floor size of the building. Actual floor area of the building: 2048mm x 1980mm Total height clearance: 2160mm Roof size 2170mm wide x 2360mm long The chosen position in your garden for your building should be excavated to a depth... -
Page 5: Care Maintenance & Recycling
Care, Maintenance and Recycling The 5 golden rules of care (1) Ensure your base is level and firm (2) Ensure the building is not sitting directly on the ground using damp proof membrane or the optional timber base. (3) Ensure every piece of timber and surface, especially that is hidden upon assembly is treated with a top quality wood preservative at least twice (see note on pressure treated buildings in warranty section). -
Page 6: Hardware Chart
nail bag contents Hardware Chart Scale 1:1 8mmFelt Nail (A0266) x 138 16mm Panel Pin (A0024) x 64 40mmRound head nail (A0025) x 150 25mmPosi-drive screw (A0032) x61 60mm Posi-drive screw (A0035) x 94... - Page 7 Fascia bag contents Description (part No ) qty Window Hinges Casement set Tee hinge (A0013) x04 (A3038)x02 (A0049) x03 Pad Bolt Floor Joiners Roof overhang (A0053) x01 (A0002) x 06 (A0011) x02 46mm 34mm Fascia Diamond Door Block (A0018)x04 (A0019) x02 (A0065) x01 34mm Beading...
-
Page 8: Parts List
Stacked parts list Description (part No ) qty Window Insert Window Panel Door Cover strips (A3293)x01 (B0016)x02 (A3292)x02 (A0016) x07 44mm 558mm 610mm 754mm Floor Plain Panel Gable Panel (A0001) x02 (A0004) x06 (A0007) x02 2048mm 2048mm 990mm Glazing Roof panel 2.4m Felt strips Roof bearers (A3297) x08... -
Page 9: Before You Start
Before you start Things to check before you start Ensure your base is ready– See page 4 Check all parts as listed in the parts lists Read the instructions fully before starting work Follow all the health and safety guidelines Treat as described on page 5 golden rules of care When you see the drill icon Only ever drill through the first... -
Page 10: Detailed Technical Drawing
These instructions are for your safety. Please read through them thoroughly before starting this assembly . Read any supplements before assembly. Treat all the parts before assembly –see page 5... -
Page 12: Assembly Instructions
Assembly These instructions are for your safety. Please read through them thoroughly before use . Treat all the parts before assembly –see page 5 The hinges fit the top of the window. GB-IE Try the window in position to check that you have it the correct way around Window Insert (B0016)x02 Hinges... - Page 13 GB-IE Fix the hinges as shown so the screws go into the horizontal framework on the back of the door Ensure The hinge is over the framework gap on the back of the door. Bracing to middle hinge. Door (A3293)x 01 Hinge over door framework Tee hinge...
- Page 14 Position the floor joiners “A0002” widest side down so they protrude half out from 1 floor, and fix with GB-IE 3x40mm nails. Push the next floor over the joiners and flush with the first floor then attach as before. Floor panel A0001)x02 A0001 46mm...
- Page 15 A panel "A0004" for the side goes into the corner, the cladding overlaps the floor, push another panel GB-IE "A0004" for the end up to it. If using a drill or electric screwdriver carefully but firmly push the opposite end to the screwdriver bit into the screw head and keep the This panel into the corner...
- Page 16 GB-IE Continue adding and fixing the walls as before A0004 A0004 Plain panels (A0004) x04 Window panel (Step 02)x02 60mm Screws (A0035)x24 REVERSE VIEW A0004...
- Page 17 A0004 No drilling A3292 A117 Building Photographs It will be greatly appreciated if you could forward images of your A3292-Drilling completed from inside building to - sales@shiregb.co.uk.
- Page 18 GB-IE Align the gable “A0007” framework with the framework of the panels below Drill 4 holes in each gable and fix with 60mm screws IMPORTANT! Make sure the window panels have a parallel 760mm opening for the doors Gable panels (GA0007) x02 60mmScrews (A0035)x08...
- Page 19 GB-IE Lay 2 roof panels “A0070” so the framework that is NOT AT THE EDGE OF THE ROOF is together. Mark and trim 42mm off the same end of the framework that sits together. This will be the top back of the roof. Note–...
- Page 20 GB-IE Continue fitting the next pair of roof sheets as in step 9 adjacent to the first pair The front pair of roof panels have an “A0011” roof overhang nailed flush with what will be the high point of the front edge A 46mm slot then needs to be cut through the existing framework flush with the “A0011”...
- Page 21 GB-IE Carefully hang the door using 1 screw per hinge at first to ensure they are square before adding the rest of the screws. Tip You can use coins or something similar under the doors as packing to level the doors. Step 03 25mm Screws (A0032)x011...
- Page 22 GB-IE Fix the walls to the floor with 1x60mm screw per panel 60mmScrews (A0035) x10 GB-IE Fit cover strips at each corner and across the joins with 4 nails each 44mm Cover strips (A0016) x07 40mmNails (A0025) x28...
- Page 23 GB-IE 3 Strips of felt have been supplied . Fit the 2 lower strips first folding the felt over the roof edging, with an even overhang front and back then secure with a couple of nails at the top to hold the felt in position and at the bottom nail at approximately 100mm centres The third piece overlaps the lower pair and goes over the ridge.
- Page 24 GB-IE Fix the Fascia's with 3 nails each and the diamonds with 2 nails each Fascia (A0018)x04 Diamond (A0019)x02 40mmNails (A0025) x16 GB-IE GLASS HANDLE WITH CARE DANGER OF CUTTING USE GLOVES ,SUITABLE SHOES AND CLOTHING Swap the beading around to get the best fit. Fit with 2 panel pins per piece of beading Get a helper to hold the glass whilst you fit the beading.
