Battery Installation

The transmitter is powered by two AA batteries. We
recommend using alkaline, lithium, or rechargeable
batteries for longest life. Standard zinc-carbon bat-
teries marked "heavy-duty" or "long-lasting" are not
adequate.
WARNING: Risk of explosion if the battery is
replaced by an incorrect type.
The battery status circuitry compensates for the dif-
ference in voltage drop between alkaline and lithium
batteries across their usable life, so it's important to
select the correct battery type in the menu.
Because rechargeable batteries run down quite
abruptly, using the Power LED to verify battery status
will not be reliable. However, it is possible to track
battery status using the Battery Timer function avail-
able in Lectrosonics Digital Hybrid Wireless
ers.

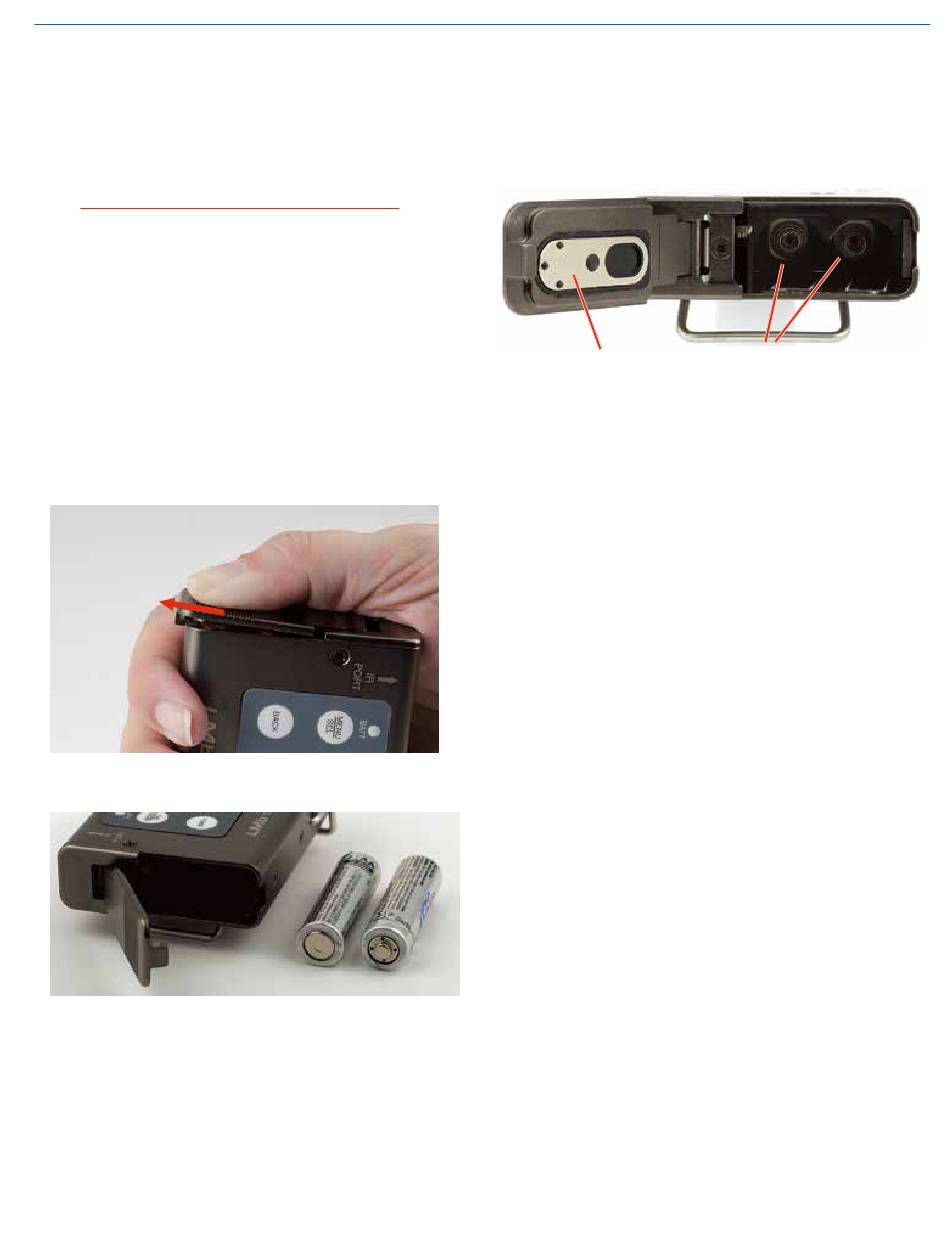

Push outward on the Battery Compartment Door and
lift it to open.
Insert the batteries according to the markings inside
the battery compartment.
If the batteries are inserted incorrectly, the door will
close but the unit will not operate.
Rio Rancho, NM
Digital Hybrid Wireless
The battery contacts can be cleaned with alcohol and
a cotton swab, or a clean pencil eraser. Be sure not
to leave any remnants of the cotton swab or eraser
crumbs inside the compartment.
Series connection plate

Belt Clips

receiv-
®
The wire belt clip may be removed by pulling the
ends out of the holes in the sides of the case. Use
pliers to grasp the wire and avoid scratching the
surface of the housing. Pliers also help when install-
ing the clip.
An optional spring-loaded, hinged belt clip (model
number BCSLEBN) is also available. This clip is at-
tached by removing the plastic hole cap on the back
of the housing and mounting the clip with the sup-
plied screw.
®
