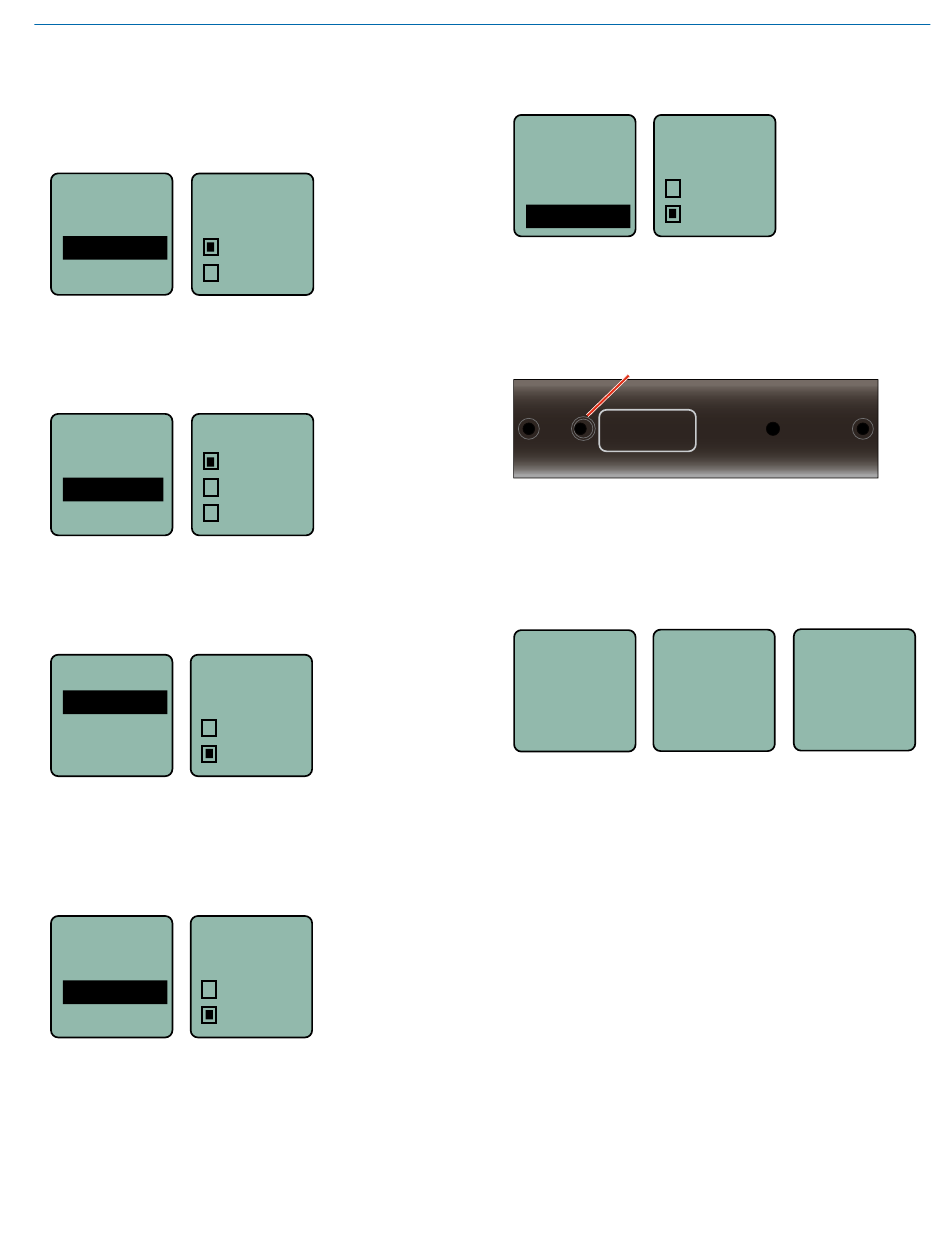

Selecting Audio Polarity (Phase)

Audio polarity can be inverted at the transmitter so
the audio can be mixed with other microphones with-
out comb filtering. The polarity can also be inverted
at the receiver outputs.
Compat Phase
StepSiz
Phase
Locked

Adjusting LCD Backlight

For viewing the LCD in dimly lit conditions, the back-
light can be turned on continuously or set to turn off
automatically after either 30 seconds or 5 minutes.
Phase Backlit
Locked
Backlit
Rf On?

RF ON/OFF on the Menu

The RF output of the transmitter can be turned off
and on with a menu item on the LCD to switch from
the standby mode to the operating mode.
Backlit Rf On?
Rf On?
BatType
Default

Selecting Battery Type

The voltage drop over the life of different batteries
varies by type and brand. Be sure to set the correct
battery type for accurate indications and warnings.
The menu offers alkaline or lithium types.
Backlit BatType
Rf On?
BatType
Default
If you are using rechargeable batteries, it is better to
use the timer function on the receiver to monitor the
battery life rather than the indicators on the transmit-
ter. Rechargeable batteries maintain a fairly constant
voltage across the operating time on each charge
and stop working abruptly, so you will have little or
no warning as they reach the end of operation. The
timer is available on all Lectrosonics Digital Hybrid
Wireless receivers.
®
Rio Rancho, NM
Pos.
Neg.
On
30 sec
5 min
No
Yes
Alk.
Lith.
Digital Hybrid Wireless

Restoring Default Settings

This is used to restore the factory settings.
Backlit
Rf On?
BatType
Default

IR (infrared) Sync

The opening on the side panel is an IR port for quick
setup using a receiver with this capability. The trans-
fer is initiated with a switch on the receiver.
IR Port
FCCID:DBZLMBC1
Lectrosonics, Inc.
Made in U.S.A.
The receiver can transfer the settings for Frequency,
Step Size and Compatibility mode to the transmitter
via the IR ports. When the settings are successfully
transferred, OK will appear on the transmitter LCD.
If a mismatch exists, an error message will appear
on the transmitter LCD indicating the nature of the
problem.
IR Sync
OK
®
UHF Belt Pack Transmitter
Default
settings
No
Yes
614.4 - 691.1 MHz
S/N XXXXX
Model: LMBC1
IC: 8024A-LMBC1
IR Sync IR Sync
BLOCK COMPAT
Mismatch
Mismatch
