Summary of Contents for Fluidwell F011-P

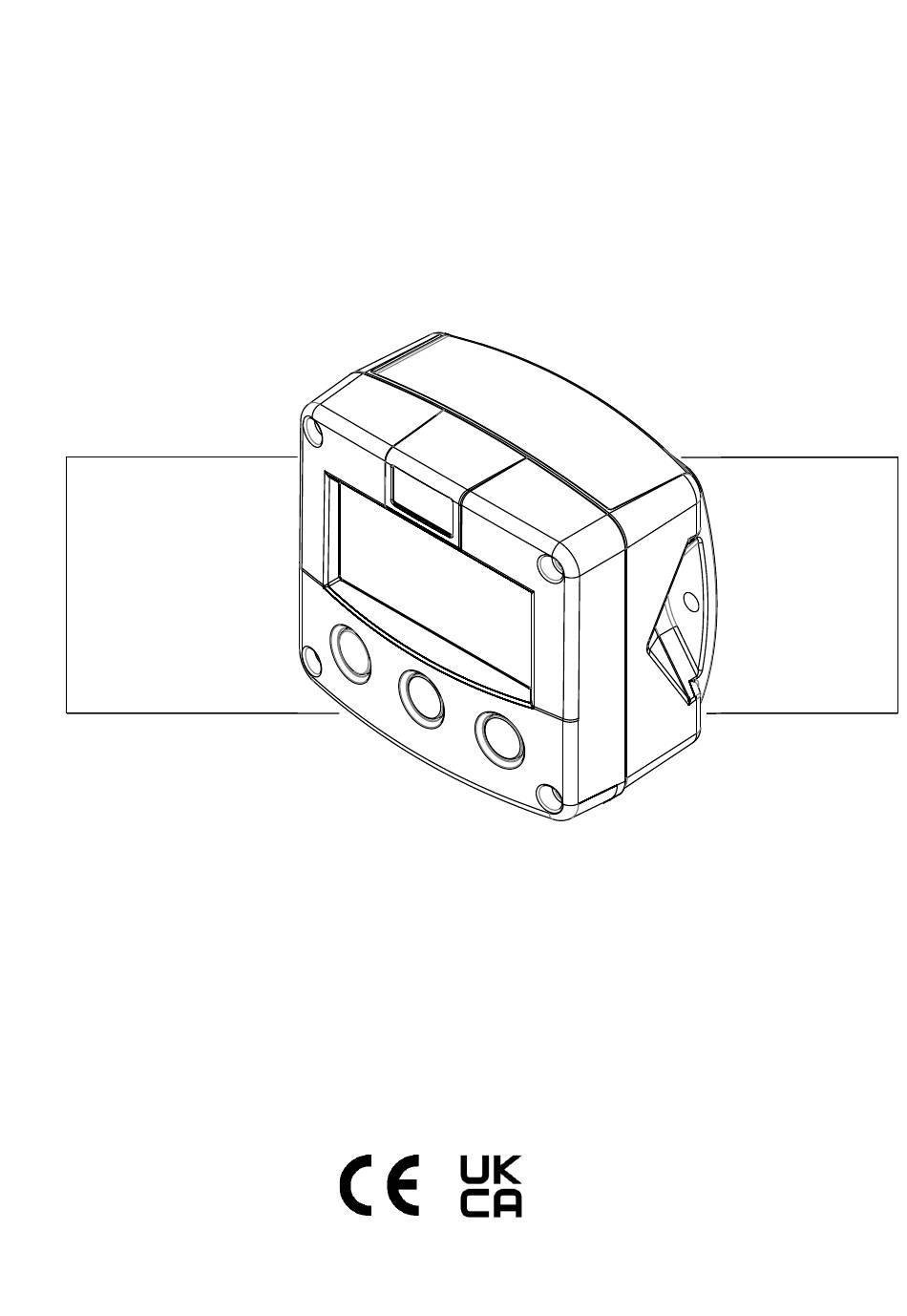

- Page 1 F011-P TOTALIZER Signal input flowmeter: pulse, Namur and coil Options: Intrinsically Safe F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries...
-
Page 2: Safety Instructions
The F011-P must be installed in accordance with the EMC guidelines (Electro Magnetic Compatibility). • Connect a proper grounding to the metal enclosure as indicated if the F011-P has an incoming power or signal line which carries a hazardous live voltage. The Protective Earth (PE) wire may never be disconnected or removed. -
Page 3: About The Manual
This operation manual describes the standard F011-P as well as most of the options available. For additional information, please contact your supplier. A hazardous situation may occur if the F011-P is not used for the purpose it was designed for or is used incorrectly. Please carefully note the information in this operating manual indicated by the pictograms: A "warning !"... -
Page 4: Table Of Contents
ABOUT THE MANUAL ........................3 WARRANTY AND TECHNICAL SUPPORT ..................3 CONTENTS MANUAL ......................... 4 INTRODUCTION ........................6 System description of the F011-P .................... 6 OPERATIONAL ........................7 General information ......................... 7 Control panel ..........................7 Operator information and functions ..................7 CONFIGURATION ........................ - Page 5 Sensor supply ........................37 Terminal connectors Intrinsically Safe applications .............. 38 Configuration examples Intrinsically Safe applications ............38 5.4.1 F011-P-PC-(PX)-XI-(ZB) Battery powered - Ex ia IIC/IIIC ............ 38 5.4.2 F011-P-PX-XI-(ZB) - Ex ia IIC/IIIC ..................39 5.4.3 F011-P-PX-XI-ZB - Ex ia IIc/IIIC .................... 39 5.4.4...
-
Page 6: Introduction
Fig. 1: Typical application for the F011-P. Configuration of the F011-P The F011-P has been designed to be implemented in many types of applications. For that reason, a SETUP-level is available to configure your F011-P according to your specific requirements. -
Page 7: Operational
Page 7 2 OPERATIONAL GENERAL INFORMATION This chapter describes the daily use of the F011-P. This instruction is meant for users / operators. • The F011-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed •... -
Page 8: Fig. 4: Example Of Low-Battery Alarm
After pressing the SELECT key, the reason of the alarm will be displayed: “LO RANGE” or “HI RANGE”. • Alarm 01-03 When "alarm" is displayed, please consult Appendix B: problem solving. FW-F011-P-M_v0404_01_EN.docx... -
Page 9: Configuration
Make sure that the unit is not being used for any application when altering the settings. 3.2.1 ENTERING SETUP-LEVEL Configuration of the F011-P is done at SETUP-level, which can be reached at all times while the F011-P remains fully operational. At SETUP-level the display will deactivate the indicator and... -
Page 10: Programming Sequence
The combination of the SELECT-key and CLEAR-key is used to select a negative value. When a value can also be entered as a negative number, pressing the SELECT- key and CLEAR-key simultaneously will toggle the ‘–‘ (minus) sign on and off. FW-F011-P-M_v0404_01_EN.docx... -
Page 11: Returning To Operator-Level
In order to return to the operator level, press the PROG-key for three seconds. When no keys are pressed for 2 minutes, SETUP-level will be left automatically. CONFIGURATION SETTINGS All settings of the F011-P can be set via the control panel. The following paragraphs give a detailed description of each setting. 3.3.1... -
Page 12: Explanation Of Setup-Menu 1 - Total
If a LED backlight has been supplied, it can be turned on or off. BL. BRIGHTNESS The backlight brightness is adjustable. The following can be selected: (optional) 1 – 5 (where 1 is minimum and 5 is maximum brightness) FW-F011-P-M_v0404_01_EN.docx... -
Page 13: Explanation Of Setup-Menu 3 - Power Management
3.3.5 EXPLANATION OF SETUP-MENU 4 - FLOWMETER The F011-P is able to handle several types of input signal. The type of flowmeter pickup / signal is selected with SETUP 4.1. Read also paragraph 4.6.1 Terminals 1-3: Flowmeter input. SETUP FUNCTIONS AND VARIABLES... -
Page 14: Explanation Of Setup-Menu 5 - Others
This protection is disabled with value 0000 (zero). Up to and including 4 digits can be programmed, for example 1234. TAGNUMBER For identification of the F011-P and communication purposes, a unique tag number of maximum 7 digits can be entered. FW-F011-P-M_v0404_01_EN.docx... -
Page 15: Installation
Operating Manual before carrying out its instructions. • The F011-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 16: Handling The F-Series Enclosure
The F0-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model code by Type XI (e.g. F011-P-XI). For Intrinsically Safe applications: Installation and identification labels are shown in chapter 5. -
Page 17: Fig. 8: Identification - Example Of F0-Series Installation Label (Safe Area - Type Pm Or Pf)
The serial number can be reviewed on the identification label or in SETUP-menu Others. The production date is either shown separately on the label or indicated by the first 4 digits of the serial number representing year and week number (YYWW). FW-F011-P-M_v0404_01_EN.docx... -
Page 18: Opening / Removing The Cover
Plastic enclosure: 1 Nm per screw Aluminum enclosure: 1 Nm per screw Aluminum w. extended back enclosure: 1 Nm per screw Stainless steel enclosure: 2 Nm per screw 5. The F-Series in now ready to be returned to service. FW-F011-P-M_v0404_01_EN.docx... -
Page 19: Mechanical Installation
0.12" 0.12" M20 x 1,5 3x 1/2"NPT 25mm 25mm 15 15 M20 x 1,5 M20 x 1,5 4x M20 x 1,5 29.1 mm (1.15”) 115 mm (4.53”) 31 mm (1.22”) Fig. 9: Dimensions – Aluminum and stainless steel enclosures FW-F011-P-M_v0404_01_EN.docx... -
Page 20: Dimensions - Non-Metallic Enclosures
118 mm (4.65”) 25mm 25mm D=20mm D=20mm 12mm 12mm 30mm 30mm 24mm 24mm D=12mm D=16mm D=16mm D=20mm 36mm 36mm 0.12” 0.12” D=22mm (0.866") 3x D=22mm (0.866”) 29.1 mm (1.15”) 115 mm (4.53”) 31 mm (1.22”) Fig. 10: Dimensions – Non-metallic enclosures FW-F011-P-M_v0404_01_EN.docx... -
Page 21: Mounting
Meter mount by using one of the openings Pipe mount by using the mounting plate in the bottom of the back cover. with the bracket and hose clamps (accessory). Panel mount by using only the front cover Fig. 11: Installation – Mounting configurations FW-F011-P-M_v0404_01_EN.docx... -
Page 22: Electrical Installation
General directions: • The F011-P that came with a power module type PM; 110V-230V AC or type PD/PF with an option OR (the relays can handle 110V-230V AC) shall be connected to the Protective Earth (PE) stud which is installed in the metal back panel. -
Page 23: Field Wiring Connections
Within the United States all field wiring must conform to the National Electric Code, NFPA 70, Article 501-4(b). All field wiring enters the F011-P through the bottom of the enclosure and connects to the circuit assembly inside the enclosure. Wiring is routed through cable glands. Please make sure to order the F011-P with the correct drilling pattern and thread (metal) or hole (plastic) sizes. -
Page 24: Power Supply Wiring
C22.2 No. 61010-1 / UL61010-1 / EN/IEC 61010-1. The F011-P can be powered from an external power supply. An internal power supply is also available in the form of a lithium battery. When both external and internal power supplies are available, the internal power supply is interrupted and will act as a backup supply. -
Page 25: Terminal Connectors Safe Area Applications - Type Pb / Px / Pd
For Intrinsically Safe applications: read chapter 5. Following terminal connectors are available on the F011-P when supplied with Type PB / PX / PD: Fig. 14: Overview of terminal connectors F011-P – type PB / PD / PX 4.6.1... -
Page 26: Fig. 16: Terminal Connections - Npn Signal Input
Page 26 Pulse-signal NPN / NPN-LP The F011-P is suitable for use with flowmeters which have a NPN output signal. For reliable pulse detection, the pulse amplitude has to go below 1.2V. Signal setting NPN-LP employs a low-pass signal noise filter, which limits the maximum input frequency (read chapter 3.3). -
Page 27: Terminal 4-5: Power Supply - Type Px (Default) And Pd (Option)
TERMINAL 4-5: POWER SUPPLY - TYPE PX (DEFAULT) AND PD (OPTION) To power the F011-P an internal battery can be used (type PB) and / or an external DC power supply of 8-30V DC (type PX) or 16-30V DC (type PD). -
Page 28: Terminal 6: Power Supply Type Pd: 8.2V Sensor Supply
Fig. 22: Overview of terminal connectors F011-P – type PF / PM 4.7.1 TERMINAL GND-1-2: POWER SUPPLY To power the F011-P with a power supply option of type PF or type PM, connect a suitable power supply to the terminals as indicated in below table: Terminal... -
Page 29: Terminals 5-7: Flowmeter Input
4.7.2 TERMINALS 5-7: FLOWMETER INPUT Three basic types of flowmeter signals can be connected to the F011-P: pulse, active pulse or coil. The screen of the signal wire can be connected to the common ground terminal. See paragraph 4.5. The input signal type has to be selected with the correct SETUP-function (read chapter 3.3). -
Page 30: Fig. 25: Terminal Connections - Pnp Signal Input
Page 30 Pulse-signal PNP / PNP-LP The F011-P is suitable for use with flowmeters which have a PNP output signal. For a reliable pulse detection, the pulse amplitude has to go above 1.2V. Signal setting PNP-LP employs a low-pass signal noise filter, which limits the maximum input frequency (read chapter 3.3). -
Page 31: Fig. 28: Terminal Connections - Namur Signal Input
Page 31 NAMUR-signal The F011-P is suitable for flowmeters with an NAMUR signal. Terminal 7 can provide a 8.2V sensor supply voltage (please read section “sensor supply”). Fig. 28: Terminal connections - NAMUR signal input. FW-F011-P-M_v0404_01_EN.docx... -
Page 32: Intrinsically Safe Applications
The F0-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model code by Type XI (e.g. F011-P-XI). If Type XI is not indicated your device is not suitable for Intrinsically Safe applications! -
Page 33: Electrical Installation In Hazardous Area
Ga, the indicator shall be installed so, that even in the event of rare incidents, an ignition source due to impact or friction sparks between the enclosure and iron/steel is excluded. FW-F011-P-M_v0404_01_EN.docx... -
Page 34: Electrical Data - Control Drawing
The cable parameters are determined by the parameters of the system into which the F0-Series General Purpose Indicators is connected. Only certified Intrinsically Safe Fluidwell battery type FW-LiBat-0xx may be used and replaced in hazardous area. The entity parameters for F0-Series General Purpose Indicators, model F0xx-P-XI, are as follows: Terminals 1 and 2 –... -
Page 35: Installations Based On Atex Or Iecex Certificate
Ga, the indicator shall be installed so, that even in the event of rare incidents, an ignition source due to impact or friction sparks between the enclosure and iron/steel is excluded. • For EPL Da the ambient temperature Ta shall not exceed 50 °C. FW-F011-P-M_v0404_01_EN.docx... -
Page 36: Electrical Data - Annex 1
(terminals 11 and 12) 30 V 0 mH 100 mA 6.1 nF = 0.75 W From the safety point of view the circuits shall be considered to be connected to earth. FW-F011-P-M_v0404_01_EN.docx... -
Page 37: Power Supply Wiring
5.2.6 POWER SUPPLY WIRING The F011-P can be powered from an extern power supply. An internal power supply is also available in the form of a lithium battery. When both external and internal power supplies are available, the internal power supply is interrupted and will act as a backup supply. Note that the optional backlight only works with an external power supply. -
Page 38: Terminal Connectors Intrinsically Safe Applications
Sensor supply voltage for pulse type P: Terminal 3: 1.2-3.2V DC. Please note: Type PX may be used in combination with the battery (Type PC). PX will power the F011-P, the battery will be disabled automatically until the power is disconnected. FW-F011-P-M_v0404_01_EN.docx... -
Page 39: F011-P-Px-Xi-(Zb) - Ex Ia Iic/Iiic
Please note: Type PX may be used in combination with the battery (Type PC). PX will power the F011-P, the battery will be disabled automatically until the power is disconnected. Configuration example IIA - IIB and IIC application - F010-P-PX-XI-ZB 5.4.3... -
Page 40: F011-P-Pd-Xi-Zb - Ex Ia Iic/Iiic
Sensor supply voltage for pulse type P: Terminal 3: 1.2-3.2V DC; Terminal 6: 8.2V DC. Please note: Type PD may be used in combination with the battery (Type PC). PD will power the F011-P, the battery will be disabled automatically until the power is disconnected. FW-F011-P-M_v0404_01_EN.docx... -
Page 41: Maintenance
(above 90% annual mean). It is the users responsibility to take all precautions to dehumidify the internal atmosphere of the F011-P in such a way that no condensation will occur, for example by placing dry silica-gel sachet in the casing just before closing it. -
Page 42: Battery Replacement
Safe area applications – Type PB • Before replacing the battery, verify that the new battery is undamaged, in good condition and suitable for use in the unit. (Type: StdLiBAT021 - re-ordering nr. SPB02) Fig. 37: Marking Type PB battery: Safe area StdLiBAT021 (SPB02) FW-F011-P-M_v0404_01_EN.docx... -
Page 43: Replace The Battery
Dispose of batteries in accordance with the (inter)national, the manufacturer’s and the plant owner’s standards and regulations. • Batteries pose an environmental hazard. • Do not dispose of as general waste or incinerate. • Return used batteries to a recycling point. FW-F011-P-M_v0404_01_EN.docx... -
Page 44: Technical Specification
Note for Type PF and PM The total consumption of the sensor, transistor output type OA and backlight type ZB may not exceed 400mA@24V DC. Note for I.S. applications For Intrinsically safe applications, consult the safety values in the certificate. FW-F011-P-M_v0404_01_EN.docx... - Page 45 • total and accumulated total. • total can be reset to zero by pressing the CLEAR-key twice. (Accumulated) Total Digits 7 digits. Accumulated Total: 11 digits. Unit L, m3, GAL, USGAL, KG, lb, bbl, no unit Decimals 0 - 3. FW-F011-P-M_v0404_01_EN.docx...
-
Page 46: Problem Solving
Page 46 PROBLEM SOLVING In this appendix, several problems are included that can occur when the F011-P is going to be installed or while it is in operation. Flowmeter does not generate pulses: Check: • Signal selection SETUP - 4.1, •... -
Page 47: Declaration Of Conformity
Page 47 DECLARATION OF CONFORMITY Veghel, February 2 22 e, Fluidwell V, declare under our sole responsibility that the F Series indicators are designed and will operate conform the following applicable European Directives and Harmonised Standards, when installed and operated according to the related manuals:... -
Page 48: Index Of This Manual
PNP 26, 30 flow rate range error decimals rate / total decimals k-factor reed-switch: flowmeter sensor supply voltage signal SETUP-level flowmeter input terminal connectors 25, 28 functional description total intrinsic safety k-factor Intrinsic safety 33, 38, 41, 43 FW-F011-P-M_v0404_01_EN.docx... -
Page 49: List Of Figures
Fig. 12: Protective Earth (PE) connections on metal enclosure Fig. 13: Switch position voltage selection (type PF and PM). Fig. 14: Overview of terminal connectors F011-P – type PB / PD / PX Fig. 15: Terminal connections - Coil signal input. - Page 50 Page 50 FW-F011-P-M_v0404_01_EN.docx...
- Page 51 Page 51 FW-F011-P-M_v0404_01_EN.docx...
- Page 52 _ _ _ _ _ _ _ 5.4 pass code 0000 5.5 tagnumber 0000000 Fluidwell bv PO box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives The Netherlands The Netherlands Fluidwell bv - © 2022 - FW-F011-P-M_v0404_01_EN.docx FW-F011-P-M_v0404_01_EN.docx...
