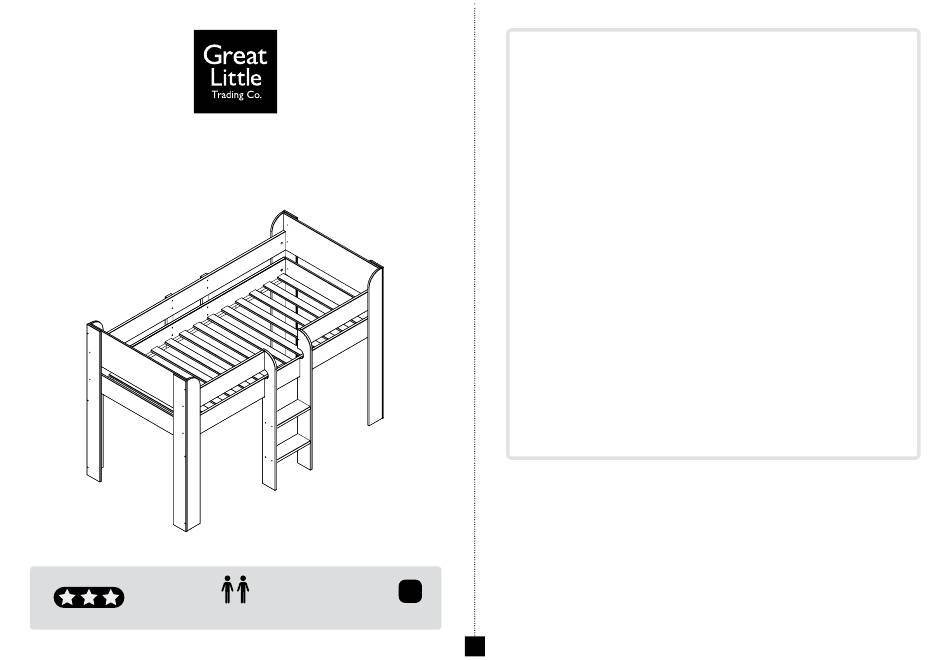

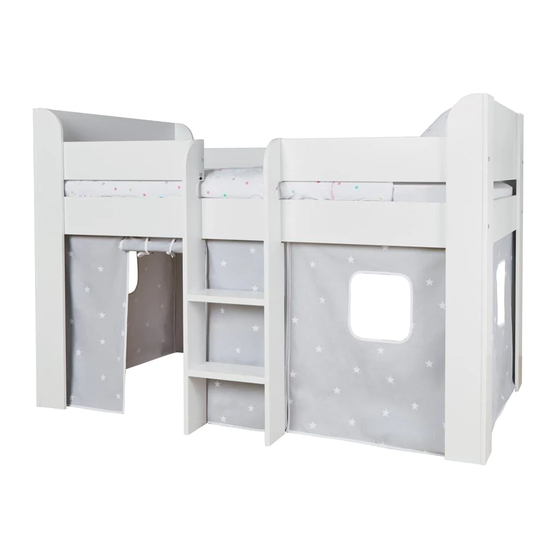

Paddington Midsleeper
Assembly Difficulty
two-person job
easy - medium -
hard
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
A few important pointers before you start:
Please read the instructions right through before you start, and
check that all the components have been included in the pack;
we find separating all the hardware into piles makes it easier to
be sure that everything is present and correct.
Make sure you have the right tools. Allen keys are provided
if required, but screw drivers and other tools are not. You'll
find details of the tools you need at the beginning of the
instructions.
It's a good idea to build the unit in the room where you are
going to be using it, to avoid the need to move it after it's been
assembled.
Do not throw away any packing materials until assembly is
complete, just in case you accidentally discard smaller parts or
hardware.
V5
10/05/2021
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Paddington Midsleeper and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Great Little Trading Paddington Midsleeper

  • Page 1 A few important pointers before you start: Paddington Midsleeper • Please read the instructions right through before you start, and check that all the components have been included in the pack;...
  • Page 2: Safety Warnings

    Safety Warnings: Customer Service: • If you find that any components are missing or damaged, please do • IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE not begin assembly and do not use the item. Please contact GLTC REFERENCE. Customer Services on 0344 848 6000 immediately. •...
  • Page 3: Component Checklist

    Component Check List 2x RH Leg Side Panels 2x LH Leg Side Panels 2x Front Guard Rails 2x Rail Support Braces 2x RH Leg Front Panels 2x LH Leg Front Panels 1x Ladder Side 1x Ladder Side 2x Headboard Rails 2x Headboards 2x Tread Panels 1x Slat Set...
  • Page 4: Hardware Check List

    Hardware Check List 32x Cover Caps 28x Wooden Dowels 20x Wooden Dowels 28x Screws (*Note: These cover caps only 40mmL 35mmL cover hardware #3 & #4) 35mmL You will need (not supplied) 8x Bolts 24x Bolts 1x Allen Key Hammer 40mmL (Use ONLY with Step 8) 50mmL You will need (not supplied)
  • Page 5 This bed is heavy and is best built in the room that it is intended for. STEP 2: Build the leg structures. Please ensure you are building on a protective surface such as a carpet or Start by securing one of the RH leg side panels (A) to one of the RH leg front panels rug to ensure the panels are not damaged during the build.
  • Page 6 STEP 3: It is suggested this step is completed on the floor. STEP 4: Using the dowels, assemble the bed end by locating one of the prepared headboards Secure panels F & E to the assembled legs using 6x 30mm SHORTER wood screws (F) and headboard rails (E) into the LH assembled leg.
  • Page 7 IMPORTANT: Two people are required from this point forward. STEP 5: Take the 2x front guard rails (I), 1x rear guard rail (H) and 2x side rails (G) and insert 20x LONGER 40mm wooden dowels (#2) as shown. Lightly tap the dowels with a hammer for this step. STEP 6: Attach back side rail &...
  • Page 8 STEP 7: Take the remaining side rail (G) and orientate with the wooden slat support rail closest to the lower edge. With one person supporting the side rail, connect with the bed end at the lower position as shown using the dowels.
  • Page 9 STEP 9: NOTE: Ensure you are using the SHORTER Secure 2x ladder tread panels (M) to the ladder sides using 4x LONGER 50mm bolts 40mm bolts (#3) for (#4) for EACH tread. attaching panels J or you could damage the panels. Fully tighten all the bolts with the Allen key.
  • Page 10 32x #10 Cover Caps have access to the bed as they could become a 4x #4 Bolts 50mm choking hazard. Copyright© 2016 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
