Batch nr:

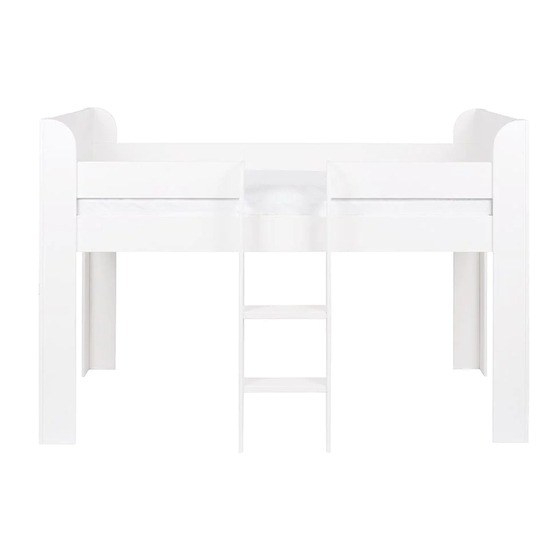

Paddington Bunkbed
Assembly Difficulty
easy - medium -
hard
www
www.gltc
.gltc.co
.co.uk
.uk
L5481
two-person job
Thank you for shopping with GLTC, we hope you enjoy having this
product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make
assembling this item as quick and painless as possible.
A few important pointers before you start:
Please read the instructions right through before you start, and
check that all the components have been included in the pack;
we find separating all the hardware into piles makes it easier to
be sure that everything is present and correct.
Make sure you have the right tools. Allen keys are provided
if required, but screw drivers and other tools are not. You'll find
details of the tools you need at the beginning of the
instructions.
It's a good idea to build the unit in the room where you are
going to be using it, to avoid the need to move it after it's been
assembled.
Do not throw away any packing materials until assembly is
complete, just in case you accidentally discard smaller parts or
hardware.
V1
09/12/2022
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Paddington Bunkbed L5481 and is the answer not in the manual?

Questions and answers

Summary of Contents for Great Little Trading Paddington Bunkbed L5481

  • Page 1 Batch nr: Thank you for shopping with GLTC, we hope you enjoy having this product in your home. We know assembling furniture, toys or accessories is not everyone’s favourite way to spend their time, so we’ve tried to make www.gltc .gltc.co .co.uk assembling this item as quick and painless as possible.
  • Page 2 Safety Warnings: Customer Service: IMPORTANT - READ CAREFULLY -RETAIN • Thank you for shopping with GLTC, we hope you enjoy having this • product in your home. FOR FUTURE REFERENCE. • Should you have any queries regarding your product, missing parts or information and need help please follow the guaidance below.
  • Page 3: Component Checklist

    Component Check List 1x Back Side Rail 2x RH Leg Side Panels 2x LH Leg Side Panels 2x Front Guard Rails 2x Tread Panels 1x Ladder Side 2x RH Leg Front Panels 2x LH Leg Front Panels 1x Ladder Side 1x Slat Sets 2x Headboards 2x Headboard Rails...
  • Page 4: Hardware Check List

    Hardware Check List 2x Connecting 4x Screw 44x Wooden 20x Bolts Screws 30mm 55mm Dowels 30mm 50mm 20x Cover Caps 12x Screws 8x Flat Cover Caps 1xAllen Key 4x13mm 25mm 13mm You will need (not supplied) 8x Connecting Bolts 2x Connecting Bolts 28x Screws 70mm 55mm...
  • Page 5 This bed is heavy and is best built in the room that it is intended for. STEP 2: Build the leg structures. Start by securing one of the RH leg side panels (A) to one of the RH leg Please ensure you are building on a protective surface such as a carpet or rug front panels (C) using 3x 50mm bolts (#2) in the positions shown.
  • Page 6 STEP 3: It is suggested this step is completed on the floor. STEP 4: It is suggested this step is completed on the floor. Secure the headboard (F) & headboard rail (E) with 6x screws 25mm (#13) in Assemble the bed end. the positions shown.
  • Page 7 IMPORTANT: Hardware for Step 6: Two people are required from this point forward. 4x #5 Connecting Bolts 70mm 4x #7 Barrel Nuts STEP 6: Carefully stand the bed on its feet. STEP 5: With one person supporting the panel, take front side rail (G) and connect with With one person supporting the first assembled bed end, one bed end in the position as shown using the dowels.
  • Page 8 STEP 8: Secure 2x ladder tread panels (K) to the ladder sides using 4x 50mm bolts (#2) for EACH tread. 2x #6 Fully tighten all the bolts with the allen key. 2x #2 2x #2 2x #2 2x #2 Hardware for Step 7 STEP 7: IAttach the ladder side panels (L &...
  • Page 9 Do not use the caps if children under 3 years have access 20x #4 Cover Caps to the bed as they could become a choking hazard 4x #12 Screw 30mm Copyright© 2022 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
