Paddington Bunkbed
L5479
Assembly Difficulty
two-person job
easy - medium -
hard
.co.uk
.uk
V1
09/12/2022
Thank you for shopping with GLTC, we hope you enjoy having this
product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make
assembling this item as quick and painless as possible.
A few important pointers before you start:
Please read the instructions right through before you start, and
check that all the components have been included in the pack;
we find separating all the hardware into piles makes it easier to
be sure that everything is present and correct.
Make sure you have the right tools. Allen keys are provided
if required, but screw drivers and other tools are not. You'll find
details of the tools you need at the beginning of the
instructions.
It's a good idea to build the unit in the room where you are
going to be using it, to avoid the need to move it after it's been
assembled.
Do not throw away any packing materials until assembly is
complete, just in case you accidentally discard smaller parts or
hardware.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Paddington L5479 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

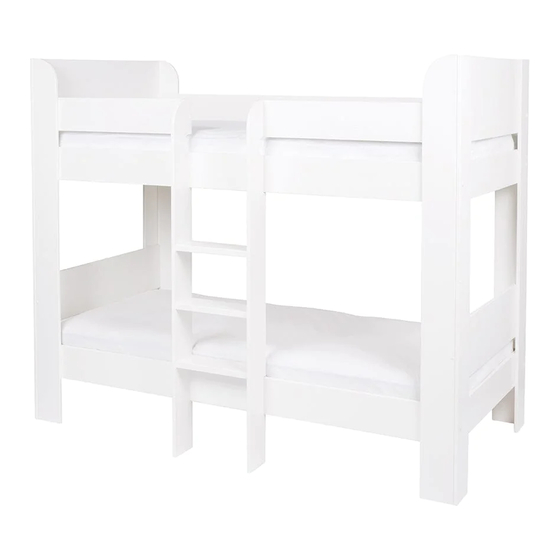

Summary of Contents for Great Little Trading Paddington L5479

  • Page 1 Thank you for shopping with GLTC, we hope you enjoy having this product in your home. We know assembling furniture, toys or accessories is not everyone’s favourite way to spend their time, so we’ve tried to make www.gltc .gltc.co .co.uk assembling this item as quick and painless as possible.
  • Page 2 Customer Service: Safety Warnings: IMPORTANT - READ CAREFULLY - • Should you have any queries regarding your product, missing parts or • information and need help please follow the guaidance below. RETAIN FOR FUTURE REFERENCE. • For gltc.co.uk orders contact GLTC Customer Services on 0344 848 6000.
  • Page 3: Component Checklist

    Component Check List 2x RH Leg Side Panels 2x LH Leg Side Panels 1x Rear Guard Rail 2x Front Guard Rails 2x Rear Side Rails 2x RH Leg Front Panels 2x LH Leg Front Panels 3x Tread Panels 4x Headboard Rails 2x Lower Bunk Headboards 1x Ladder Side 1x Ladder Side...
  • Page 4: Hardware Check List

    Hardware Check List 4x Connecting 8x Screw 76x Wooden 20x Bolts Screws 30mm 55mm Dowels 30mm 50mm 32x Cover Caps 16x Screws 8x Flat Cover Caps 1xAllen Key 4x13mm 25mm 13mm You will need (not supplied) 12x Connecting Bolts 2x Connecting Bolts 56x Screws 70mm 55mm...
  • Page 5 This bed is heavy and is best built in the room that it is intended for. STEP 2: Build the leg structures. Start by securing one of the RH leg side panels (A) to one of the RH leg Please ensure you are building on a protective surface such as a carpet or rug front panels (C) using 5x 50mm bolts (#2) in the positions shown.
  • Page 6 STEP 3: It is suggested this step is completed on the floor. STEP 4: It is suggested this step is completed on the floor. Secure the upper headboard (G) & 2x headboard rails (E) with 8x screws 25mm Assemble the bed end. Place the prepared headboard and rail panels (G, E, F, E) in the positions (#13) in the positions shown.
  • Page 7 IMPORTANT: Hardware for Step 6: Two people are required from this point forward. 6x #5 Connecting Bolts 70mm 6x #7 Barrel Nuts STEP 6: STEP 5: Carefully stand the bed on its feet. With one person supporting the first assembled bed With one person supporting the panel, take 1x front side rail (H) and connect with end, use the dowels to locate 1x rear guard rail (I) &...
  • Page 8 STEP 8: Secure 3x ladder tread panels (L) to the ladder sides using 4x 60mm bolts (#3) for EACH tread. 2x #6 Fully tighten all the bolts with the allen key. 2x #2 2x #2 2x #2 2x #2 2x #2 2x #2 Hardware for Step 7 Hardware for Step 8:...
  • Page 9 Do not use the caps if children under 3 years have access 32x #4 Cover Caps to the bed as they could become a choking hazard 8x #12 Screw 30mm Copyright© 2022 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
