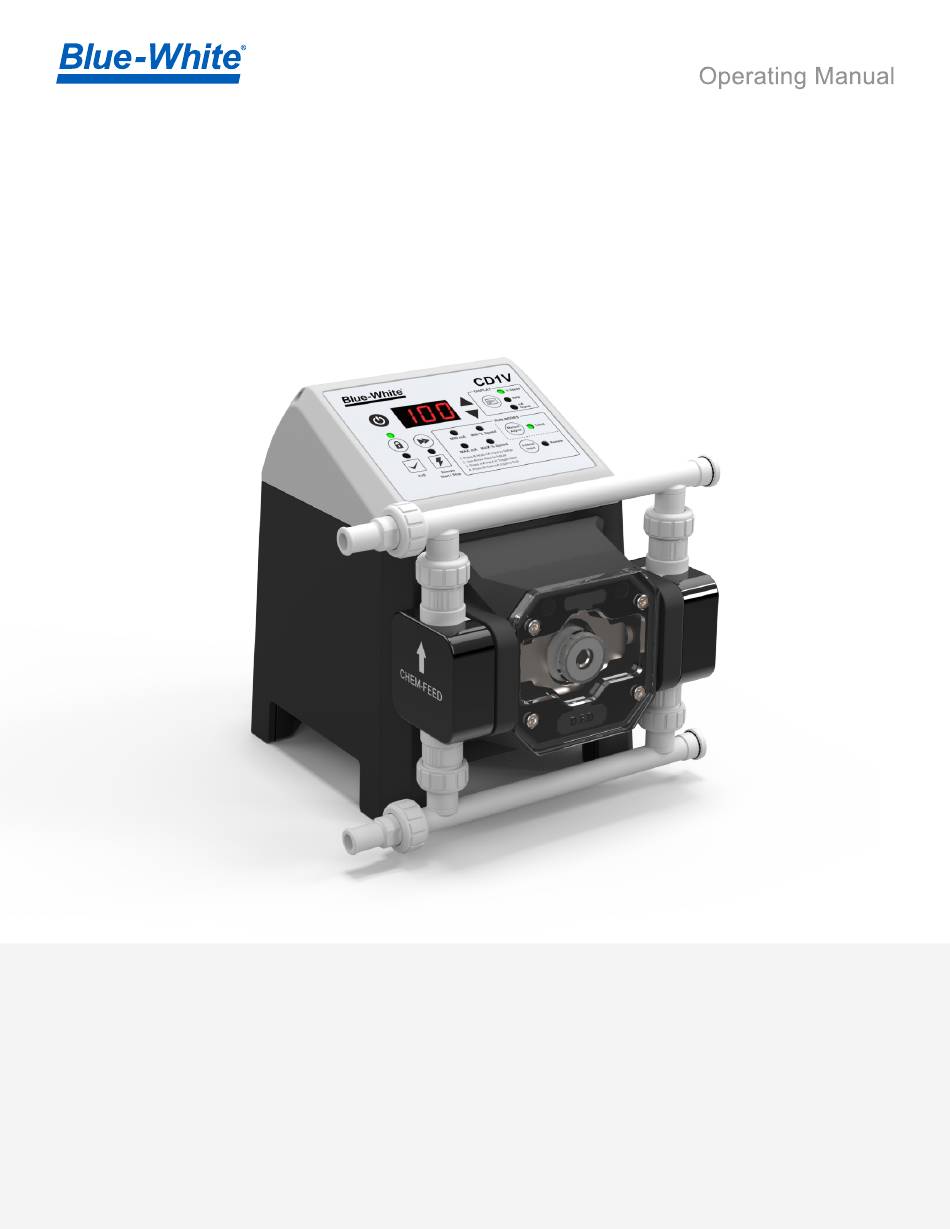

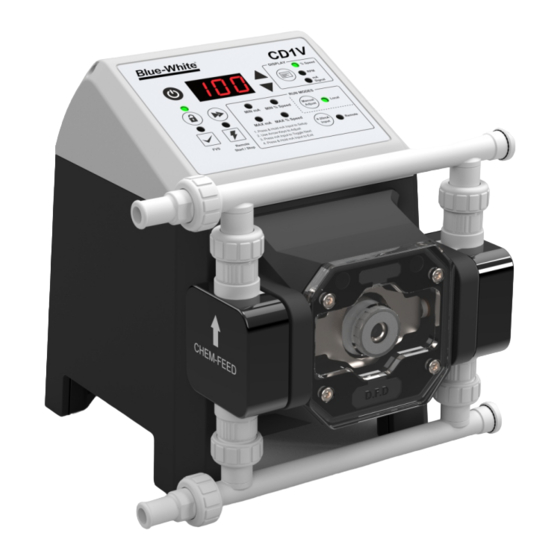

- Page 1 ® CHEM-FEED Multi-Diaphragm Metering Pump Series CD1...
-
Page 2: Table Of Contents
CHEM-FEED CD1 Introduction 1.1 Available Models Engineering Specifications Construction Materials 3.1 Wetted Components 3.2 Non-Wetted Components What’s In The Box 4.1 Agency Listings Installation 5.1 Mounting Location 5.2 Wall Mounting 5.3 Programming 4-20mA Input (V option only) 5.4 Programming FVS (Flow Verification Sensor) Power Connections Touchpad Layout 7.1 IO Connection... - Page 3 CHEM-FEED CD1 Page 3 READ THE INSTRUCTION MANUAL PRIOR TO INSTALLATION AND USE. +1 (714) 893 - 8529 sales@blue-white.com customerservice@blue-white.com 5300 Business Drive Huntington Beach, CA 92649...
-
Page 4: Introduction
Congratulations on purchasing the 1 variable speed Multi-Diaphragm Metering Pump. Please Note: Your new pump has been pressure tested at the factory with clean water before shipping. This is part of our stringent quality assurance program at Blue-White Industries. Available Models ®... -
Page 5: Construction Materials
CHEM-FEED CD1 Page 5 CONSTRUCTION MATERIALS Wetted Components Pump Head Assembly Pump Head PVDF Adapter Connections PVDF Valve Cartridge PVDF Valve Balls Ceramic Elastometer TFE/P (optional EP) Static Seals TFE/P (optional EP) ® ® Diaphragm DiaFlex (optional Flex-A-Prene ) Injection / Back-Flow Check Valve Body &... -
Page 6: What's In The Box
Page 6 CHEM-FEED CD1 What’s In The Box CD1 Multi-Diaphragm Pump Instruction Manual Wall Mounting Bracket Suction Tubing (3/8”x5’) Parts Kit Discharge Tubing (3/8”x5’) !Injection Fitting !Foot Valve !Screws !Ceramic Weight !Tube Nuts Agency Listings This pump complies to the Machinery Directive 2006/42/EC, BS, EN 60204-1, Low Voltage Directive 2014/35/EU BS EN 61010-1, EMC Directive 2014/30/EU, BS EN 50081-1/BS EN 50082-1. -
Page 7: Installation
CHEM-FEED CD1 Page 7 ENCLOSURE RATING NEMA 4X Constructed for either indoor or outdoor use to provide a degree of protection to personnel against incidental contact with enclosed equipment; to provide a degree of protection against falling dirt, rain, sleet, snow, windblown dust, splashing water, and hose-directed water;... -
Page 8: Wall Mounting
Page 8 CHEM-FEED CD1 Wall Mounting Using the provided #10 self-tapping screws, mount the bracket to a secure wall that is located where it can be easily serviced. 4.50 in. [11.43 cm] #10 Self-Tap (2 X) Wall Mount Bracket (Side View) Mounted Pump (Front View) Lower the pump so that the tab on the wall mount is inserted into the slot located on the back of the pump. -
Page 9: Programming 4-20Ma Input (V Option Only)
CHEM-FEED CD1 Page 9 4-20mA Input CAUTION Proper eye and skin protection must be worn when installing and servicing the pump. 5.31 Selecting 4-20mA input mode Directions Confirm that pump is in the OFF position Press 4-20mA Input button 5.32 Programming 4-20mA input mode Directions Confirm that pump is in the OFF position. -
Page 10: Programming Fvs (Flow Verification Sensor)
Page 10 CHEM-FEED CD1 Programming FVS (Flow Verification Sensor) CAUTION Proper eye and skin protection must be worn when installing and servicing the pump. Directions CD1F - CHEM-FEED Chemical Metering Pump Confirm that pump is in the OFF position % Speed Press and hold FVS button Toggle up/down arrow until desired Feed Rate Units... -
Page 11: Touchpad Layout
CHEM-FEED CD1 Page 11 TOUCHPAD LAYOUT Item Number Item LED/LCD Readout Rate Display Key Flow Verification Sensor (FVS) Key Remote Start/Stop Key Lock-Out Key Prime Key Start & Stop Key Down Key Up Key Manual Speed Adjust 4-20mA... -
Page 12: Io Connection
Pump (Right Side Panel) Item Number Item M12 Input Connector 1 M12 Input Connector 2 (Included with CD1V ONLY) M12 Output Connector USB-C Connector M12 connectors not included with product. Blue-White Industries recommends any A-Type M12 connector with 5 position female sockets... - Page 13 CHEM-FEED CD1 Page 13 M12 Input Connector M12 Input Connector 1 Function Specifications Reference 120 Ohm Impedance, Non 4-20mA Input (+) (+) Positive powered loop 120 Ohm Impedance, Non 4-20mA Input (-) (-) Negative powered loop Not Used Not Used Not Used M12 Input Connector 2 - Included with CD1V ONLY Function...
-
Page 14: Output Adjustment
Page 14 CHEM-FEED CD1 OUTPUT ADJUSTMENT The speed of the pumping mechanism is adjustable from 0.05 to 100 % motor speed (0.05 RPM to 100 RPM). DFD (Diaphragm Failure Detection) This system is capable of detecting presence of a large number of chemicals including Sodium Hypochlorite (Chlorine), Hydrochloric (muriatic) Acid, Sodium Hydroxide, and many others. -
Page 15: Pump Maintenance
CHEM-FEED CD1 Page 15 10.0 Pump Maintenance CAUTION Prior to service, pump clean water through pump and suction / discharge line to remove chemical. Always wear protective clothing, face shield, safety glasses and gloves when working on or CAUTION near your metering pump. Additional precautions should be taken depending on solution being pumped. -
Page 16: Accessories
Page 16 CHEM-FEED CD1 11.0 ACCESSORIES The following accessories are available for the CD1 Multi-Diaphragm Metering Pump. Please visit Bluewhite.com for more information. KIT-M12 KIT-M12 WIRING INSTRUCTIONS DIAGRAM PIN # WIRE COLOR Kit contains: Two M12 PIN 1 BROWN cables. PIN 2 WHITE PIN 3... - Page 17 CHEM-FEED CD1 Page 17 KIT-S7 Kit contains: One 7 gallon tank, One 3/8” suction tube, One 3/8” discharge tube, One foot valve and strainer and One mounting bracket with screws KIT-S07 STAR III 7 GALLON TANK KIT-S15 Kit contains: One 15 gallon tank, One 3/8” suction tube, One 3/8” discharge tube, One foot valve and strainer and One mounting bracket with screws KIT-S15 STAR III 15 GALLON TANK...
-
Page 18: Replacement Parts List
Page 18 CHEM-FEED CD1 12.0 REPLACEMENT PARTS LIST ITEM PART NUMBER DESCRIPTION QTY. 90011-246 SCREW 1/4-20 X 1.50 SOC CAP SS 76001-945 HYPER-DRIVE MACHINED 90006-600 BACK-UP WASHER HD .100" THICK MANIFOLD NUT UNION AND FLANGE 71010-730 SPIN WELD 90002-707 ADAPTER CART 70004-539 P/HEAD COVER CHEM-FEED 90002-708... -
Page 19: Exploded View
Page 19 CHEM-FEED CD1 12.1 EXPLODED VIEW... -
Page 20: 13.0 Troubleshooting
Check power supply output voltage Under Voltage Check power supply output voltage Check ambient conditions, restart pump once cooled Temperature exceeds 75°C at control to ambient temperature Contact Blue-White Industries (714) 893-8529 Inverter Error techsupport@blue-white.com Contact Blue-White Industries (714) 893-8529 No Motor Connection techsupport@blue-white.com... -
Page 21: Warranty
Limited Warranty Your Blue-White product is a quality product and is warranted for a specific time from date of purchase (proof of purchase is required). The product will be repaired or replaced at our discretion. Failure must have occurred due to defect in material or workmanship and not as a result of operation of the product other than in normal operation as defined in the product manual. -
Page 22: Appendix A Acronyms
Page 22 CHEM-FEED CD1 ACRONYMS Minute °C Celsius Milliliters °F Fahrenheit MSDS Material Safety Data Sheet Alternating current N.C. Normally Close Unit of pressure N.O. Normally Open Clean-in-place National Pipe Thread Centimeters National Sanitation Foundation Cash on Delivery Outside diameter Depth P.N. -
Page 23: Appendix B Model Number Matrix
CHEM-FEED CD1 Page 23... - Page 24 Contact your local waste recovery agency for a Designated Collection Facility in your area. Blue-White Industries, Ltd. 5300 Business Drive, Huntington Beach, CA 92649, USA Phone: 714-893-8529 FAX: 714-894-9492 E mail: sales@blue-white.com or techsupport@blue-white.com URL: www.Blue-White.com P.N. 80000-610 Rev 11 20220622...
