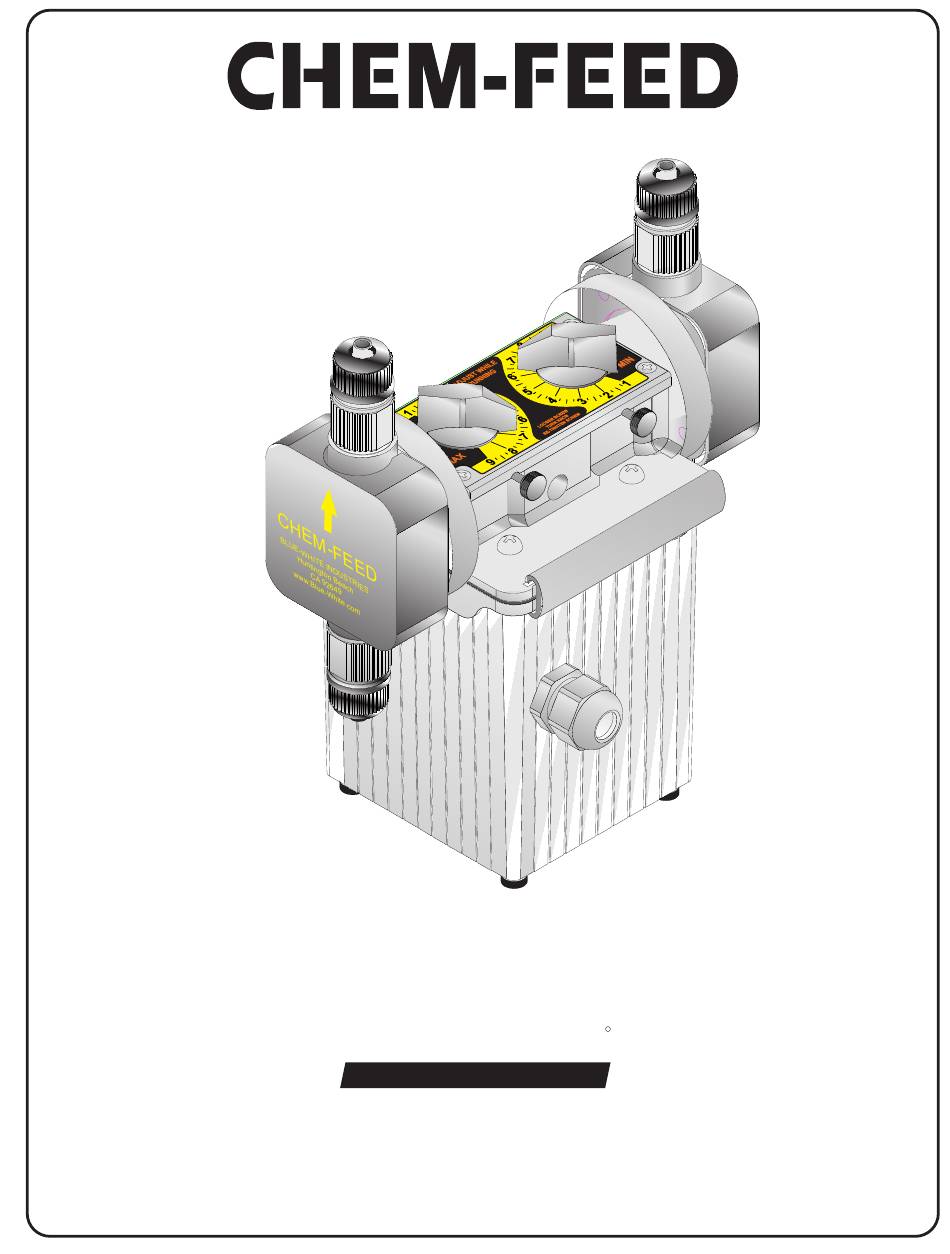

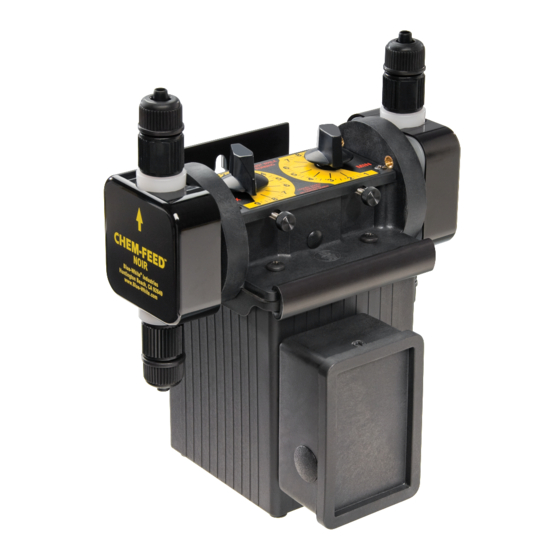

- Page 1 ® INJECTOR MODEL C-1700N Positive Displacement Injector Pump Operating Manual Blue-White Industries, Ltd. 5300 Business Drive Huntington Beach, CA 92649 Phone: 714-893-8529 FAX: 714-894-9492 E mail: sales@blue-white.com or techsupport@blue-white.com www.Blue-White.com...
-
Page 2: Table Of Contents
C-1700N Page 2 TABLE OF CONTENTS SECTION HEADING PAGE Introduction Specifications C-1700N Features How to install the C-1700N Mounting location Electrical connections How to install the tubing and fittings How to operate the C-1700N Adjusting the Pump Output - Standard Models Adjusting the Pump Output - Fixed cycle timer Models Measuring the pump’s output - volumetric test How to maintain the C-1700N... -
Page 3: C-1700N Features
C-1700N Page 3 C-1700N Features Double-ball ceramic check valves. PVDF (Kynar) valve assemblies. Viton o-rings. High outlet pressure capability of 125 PSIG.* Easy access, top mounted mechanical feed rate adjustment. Ball bearing supported motor drive shaft. Permanently lubricated ball bearing motor. 20:1 adjustment turn down ratio. - Page 4 C-1700N Page 4 4-1/2” 7-5/32” (114.3mm) (142.9mm) #10 Self-Tap (2 X) Slide in 2.30” 9-1/16” (230.2mm) (230.2mm) Clamp Wall Mount FIG. 4.1 INJECTOR WALL MOUNTING FIG. 4.0 DIMENSIONAL DRAWING C-1700N Pumping unit Discharge Tube Discharge Tube Suction Suction Tube Tube Chemical Chemical FIG.
-
Page 5: Electrical Connections
C-1700N Page 5 Electrical Connections 4.2.1 Input Power Connections Risk of electric shock. Be certain to connect the pump to the proper WARNING supply voltage. Using the incorrect voltage will damage the pump and may result in injury. The voltage requirement is printed on the pump serial label. -
Page 6: How To Install The Tubing And Fittings
C-1700N Page 6 Cycle Adjustment Timer Potentiometer Board Common AC/LOAD Input Ground (green) Power LOAD JB2 JB3 JB1, JB2, JB3 = Voltage Selector Jumpers Neutral Jumpers Configuration Motor Install JB2 & JB3, (JB1 left open) = 24 V AC input Install JB1 &... - Page 7 C-1700N Page 7 Discharge Tubes (Rigid P.E.) Tube Nuts Footvalve Adapter Outlet Adapters Suction Tubing Adjustment Knobs O-Ring (cam type mechanism) Ceramic Ball Pump Head Ceramic bracket O-Ring Weight Inlet Adapter FootValve (2X) Footvalve Body Sub-Assembly (in vertical position) Tube Nut (2X) Footvalve Strainer Suction Tubings...
-
Page 8: How To Operate The C-1700N
C-1700N Page 8 How To Operate The C-1700N Adjusting the Pump Output- Standard models (fig. 5.1) - The C-1700N flow rate(s) can be adjusted within a range of 5% -100% of maximum output (20:1 turndown ratio) by means of two mechanical, cam type mechanisms. -
Page 9: 5.3 Measuring The Pump's Output - Volumetric Test
C-1700N Page 9 5.3 Measuring the Pump’s Output - Volumetric Test. This volumetric test will take into account individual installation factors such as line pressure, fluid viscosity, suction lift, etc. This test is the most accurate for measuring the injector’s output in an individ- ual installation. - Page 10 C-1700N Page 10 Replacement Parts Drawing...
- Page 11 C-1700N Page 11...
- Page 12 Warranty status is determined by the pump’s serial label and the sales invoice or receipt. The serial label must be on the pump and the pump must be accompanied by the sales invoice or receipt to obtain warranty coverage. The warranty status of the pump will be verified by Blue-White or a factory authorized service center.
