Summary of Contents for Heinner HC-N268WDF+

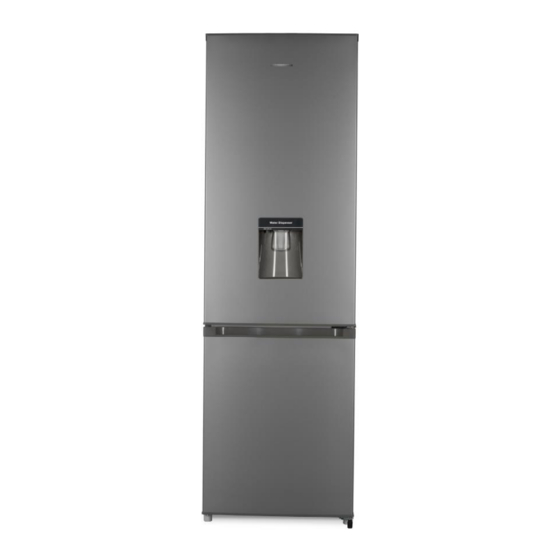

- Page 1 COMBI FRIDGE Model: HC-N268WDF+/HC-N268SWDF+ • Combi fridge • Energy class: F • Total capacity: 268 L...
- Page 2 Thank you for choosing this product! INTRODUCTION Please read the instructions carefully and keep the manual for future information. This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.
-
Page 3: Safety Information
III. SAFETY INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. - Page 4 General safety WARNING! This appliance is intended to be used in household and similar applications such as: • staff kitchen areas in shops, offices and other working environments; • farm houses and by clients in hotels, motels and other residential type environments;...
- Page 5 Replacing the illuminating lamps WARNING - The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps. Refrigerant...
-
Page 6: Daily Use
IV. DAILY USE • Do not store flammable gass or liquids in the appliance. There is a risk of an explosion. • Do not operate any electrical appliances in the appliance (e.g.electric ice cream makers.mixers etc.). • When unplugging always pull the plug from the mains socket.do not pull on the cable. -
Page 7: Cleaning And Maintenance
V. CLEANING AND MAINTENANCE • Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. • Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. •... - Page 8 VII. SERVICE AND ENERGY SAVING Service • Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person. • This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.
-
Page 9: Product Description
VIII. PRODUCT DESCRIPTION 1. Controller box and LED light 2. Door switch 3. Shelves 4. Crisper box cover 5. Crisper drawer 6. Freezer upper drawer 7. Freezer lower drawer 8. Adjustable bottom feet 9. Egg tray (inside) 10. Upper rack 11. - Page 10 IX. INSTALLING Before using the appliance for the first time, you should review the following tips. Ventilation of appliance In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance. For this reason, sufficient clear space should be available around the refrigerator.
- Page 11 Tools you will need Note: If required you may lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator.
- Page 12 3. Unscrew the special flange self-tapping screws which are used for fixing the right upper hinge part by a 8mm socket driver or a spanner (please support the upper door with your hand when doing it). 4. Remove the upper hinge axis, transfer it to reversed side and tighten securely, then put it in a safe place.
- Page 13 7. Unscrew the two special flange self- tapping screws which are used for fixing the middle hinge part, then remove the middle hinge part that hold the lower door in place. Note: When removing the door, watch for washer(s) between the center hinge and the bottom of the freezer door that may stick to the door.
- Page 14 9. Change screw hole covers on middle cover plate from left to right (as shown in figure below). 10. Lay the refrigerator on soft foam packaging or similar material. Remove both adjustable bottom feet parts and remove the front feet board and the lower hinge part by unscrewing the special flange self-tapping screws.
- Page 15 13. Transfer the lower door to the property position, adjust the lower hinge part, make the hinge axis into the lower hole of the lower door, then tight the bolts. 14. Upturn the middle hinge part the direction 180 degree, transfer it and adjust its position, make the middle hinge axis into the upper hole of the lower door, tight the bolts.
- Page 16 17. Install the screw hole cover on the top right corner of the refrigerator. Install the upper hinge cover (which is in the plastic bag) on the left corner. Put the other upper hinge cover into the plastic bag.
-
Page 17: Temperature Setting
X. TEMPERATURE SETTING Insert the plug of the connection lead into the plug socket with protective earth contact. When the refrigerator compartment door is opened, the internal lighting is switched on. After the fridge has been placed in position, wait for 5 minutes before electricity is supplied. Don’t store anything until the temperature inside the fridge becomes low enough. - Page 18 • Press the light bulb cover, and slide it backwards • To change the light bulb, undo the screw • Remove the bulb fixed block, change the defective light bulb • Refit the bulb fixed block, the light bulb cover and the screw •...
- Page 19 Vegetable drawer: For storing fruit and vegetables. Freezer drawer: For storing frozen food. Ice cube tray: For making ice and storing ice-cubes. Refrigerator compartment 2) For storing food that does not need to be frozen and different sections suitable for different kinds of food.
- Page 20 Before using Before using this appliance for the first time, you should use it based on following instructions. 1. Hold the two sides of the water tank tightly, then pull up the water tank by shaking up and down.
- Page 21 Filling water 1. Open the water supply inlet cover from the left side. 2. Fill the water. Caution! Fill with water up to 2.5L (which is suggested), and not above the level. Otherwise, it may overflow when the lid is close.
- Page 22 Receiving water You should use the correct cups to receive water underneath the water dispenser. Warning! Don't push the dispenser lever forward without cup, it may cause the water leak from the dispenser. Cleaning 1. Put the water tank out of the door carefully, and then wash the tank, lid, and head lightly in water.
- Page 23 XI. STORING THE FOOD Hints for fresh food refrigeration • Do not place hot food directly into the fridge or freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.
- Page 24 To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Page 25 Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within 0-star the same day, preferably no more than 3 days). -6≤0 Partially encapsulated processed foods...
- Page 26 XII. CLEANING AND DEFROSTING THE FREEZER For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months). Caution! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.
- Page 27 Door seals cleaning Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.
- Page 28 Go out of use for a long time Remove all refrigerated packages. Switch off the appliance by turning the temperature regulator to position “0”. Remove the mains plug or switch off or disconnect the electricity supply. Clean thoroughly (see section: Cleaning and Care).
-
Page 29: Troubleshooting
XIII. TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product. - Page 30 Temperature inside is Increase the temperature by following the "Display controls" chapter. too cold Doors can't be closed Check whether the top of the refrigerator is tilted back by 10- 15 mm to allow the doors to easily self close or if something inside is preventing the doors from closing.
- Page 31 CUSTOMER CARE AND SERVICE Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model and Serial Number. The information can be found on the rating plate. Subject to change without notice.
- Page 32 Environment friendly disposal You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipment’s to an appropriate waste disposal center. HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.
