Heinner HC-V336F+ Instruction Manual

Combi fridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

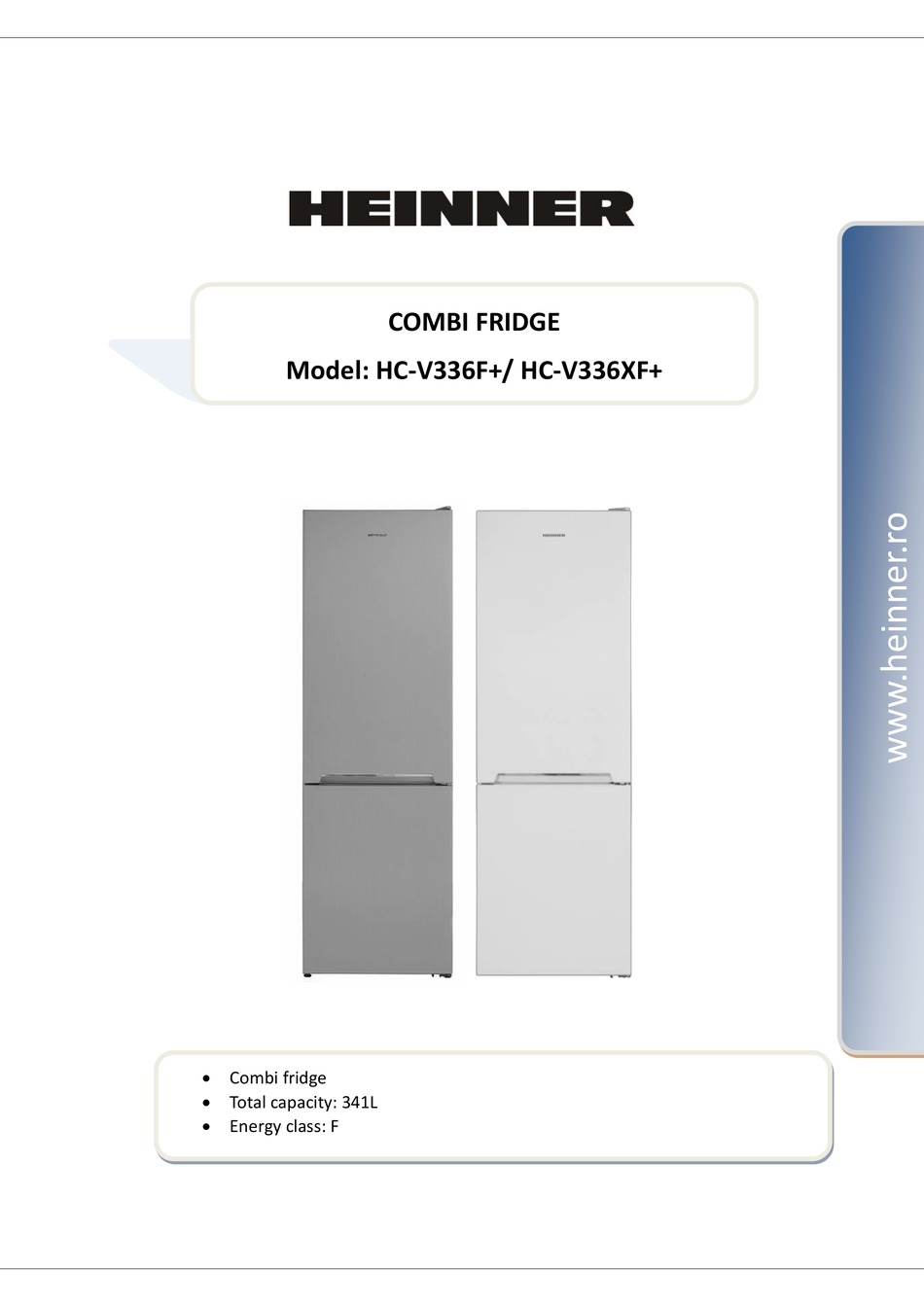

COMBI FRIDGE
Model: HC-V336F+/ HC-V336XF+
 Combi fridge
 Total capacity: 341L
 Energy class: F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HC-V336F+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heinner HC-V336F+

Summary of Contents for Heinner HC-V336F+

  • Page 1 COMBI FRIDGE Model: HC-V336F+/ HC-V336XF+  Combi fridge  Total capacity: 341L  Energy class: F...
  • Page 2 Thank you for purchasing this product! INTRODUCTION Before using the appliance, please read carefully this instruction manual and keep it for future reference. This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.
  • Page 3 INTRODUCTION Before using the appliance, please read carefully this instruction manual and keep it for future reference. This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

  • Page 4: Safety Precautions

    IV. SAFETY PRECAUTIONS GENERAL WARNINGS! WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

  • Page 5: Safety Warnings

    (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.
  • Page 6 To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems •...

  • Page 7: Product Description

    PRODUCT DESCRIPTION This appliance is not intended to be used as a built-in appliance. This presentation os only for information about the parts of the appliance. Parts may vary according to the apliance model. Fridge compartment Freezer upper room cover / upper basket...
  • Page 8 Dimensions Overall dimensions 1860 Space required in use 2010 Overall space required in use 937,5 1243,5...

  • Page 9: Installation

    VI. INSTALLATION Before using the appliance, you should pay attention to the following points: • The operating voltage for your fridge is 220-240 V at 50Hz. • The plug must be accessible after installation. • Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply.

  • Page 10: Using The Appliance

    VII. USING THE APPLIANCE Less Frost Technology: Thanks to the wrap around evaporator, LessFrost technology offers more efficient cooling, less manual defrost requirement and more flexible storage room. THERMOSTAT SETTING The fridge freezer thermostat automatically regulates the inside temperature of the compartments.
  • Page 11 • When setting the thermostat, take into consideration how often the appliance doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located. • Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled.
  • Page 12 Accessories Visual and text descriptions in the accessories section may vary according to the model of your appliance. Ice tray • Fill the ice tray with water and place in freezer compartment. • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

  • Page 13: Cleaning And Maintenance

    The Fresh Dial If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within.
  • Page 14 DEFROSTING Defrosting the fridge compartment • Defrosting occurs fully automatically in fridge compartment during operation; the defrosted water collected by the evaporating tray and evaporates automatically. • The evaporating tray and water drain hole (back of the refrigerator crisper shelf) should be cleaned periodically to prevent the water from collecting on the bottom of the fridge instead of flowing out.
  • Page 15 • Dry the inside of the compartment with a sponge or a clean cloth. • To accelerate the defrosting process, place one or more bowls of warm water in the freezer compartment. • Examine the contents when replacing them in the freezer and if some of the packages...
  • Page 16 IX. STORING THE FOOD Refrigerator compartment • To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
  • Page 17 Some recommendations have been specified below for the placement and storage of your food in the cooling compartment. Food Maximum storing time Where to place in the fridge compartment Vegetables and fruits 1 week Vegetable bin Meet and fish...
  • Page 18 • The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label. • To use the maximum capacity of the freezer compartment, use the glass shelves for the upper and middle section, and use the lower basket for the bottom section.
  • Page 19 Dairy products Preparation Maximum storing time Storing conditions (months) Pure milk – in its own Packet (homogenize) In its own packet milk packet Cheese excluding In slices Original package may white cheese used short storing period. should be wrapped in foil for longer periods.

  • Page 20: Transportation And Changing Of Installation Position

    Maximum storing time Thawing time in room Thawing time oven (months) temperature (hours) (minutes) Bread 4-5 (220-225 °C) Biscuits 1-1.5 5-8 (190-200 °C) Pastry 5-10 (200-225 °C) 1-1.5 5-8 (190-200 °C) Phyllo dough 1-1.5 5-8 (190-200 °C) Pizza 15-20 (200 °C)

  • Page 21: Troubleshooting

    TROUBLESHOOTING If the fridge freezer is not working properly, it may be a minor problem, therefore to save time and money, check the following, before calling an electrician. What to do if your appliance does not operate Check that: •...
  • Page 22 If there is water in the lower part of the fridge freezer. Check that: The drain hole for the water is not clogged (use the defrost drain plug to clean the drain hole). Recommendations • If you do not intend to use the appliance for long time (for example during the summer holidays) unplug and clean the appliance and leave the door open to prevent the formation of mildew and smells.

  • Page 23: Technical Data

    CUSTOMER CARE AND SERVICE Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model and Serial Number. The information can be found on the rating plate. Subject to change without notice.
  • Page 24 Environment friendly disposal You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipment’s to an appropriate waste disposal center. HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.
