Notes:
•
When powered, the device will indicate Z-Wave status with colour of LED ring:
» Green - the device is already added to the Z-Wave network.
» Red - the device is not added to any Z-Wave network.
•
Socket used for Plug-Control should be easily accessible.
4
ADDING THE DEVICE
•
Adding in security mode must be performed up to 2 meters from the controller.
•
In case of problems with adding the device, please reset the device and repeat the adding procedure.
Adding (Inclusion) - Z-Wave device learning mode, allowing to add the device to existing Z-Wave network.
To add the device to the Z-Wave network:
1. Plug the device into a socket nearby the main Z-Wave controller.
2. The LED ring will glow red signalling not being added (reset or remove the device otherwise).
3. Set the main controller in (security/non-security) add mode (see the controller's manual).
4. Quickly, triple click the B-button located on the casing.
5. Wait for the adding process to end.
6. Successful adding will be confirmed by the Z-Wave controller's message.
5
REMOVING THE DEVICE
Removing (Exclusion) - Z-Wave device learning mode, allowing to remove the device from existing Z-Wave network.
To remove the device from the Z-Wave network:
1. Place Plug-Control within the direct range of your Z-Wave controller.
2. Identify the S1 switch.
3. Set the main controller in remove mode (see the controller's manual).
4. Quickly, three times press the S1 switch.
5. Wait for the removing process to end.
6. Successful removing will be confirmed by the Z-Wave controller's message.
Notes Removing Plug-Control from the Z-Wave network restores all the default parameters of the device, but does not reset power metering
data.
6
OPERATING THE DEVICE
To avoid risk of electrical shock, do not operate the device with wet or moist hands.
6.1 - Controlling Plug-Control using the B-button
Plug-Control is equipped with a B-button, which allows to use the menu and additionally perform the following actions:
•
1x click: turn controlled device ON/OFF, confirm selected menu option (if menu is active)
•
3x click: add/remove the device to/from a Z-Wave network
Holding: enter/navigate through menu
•

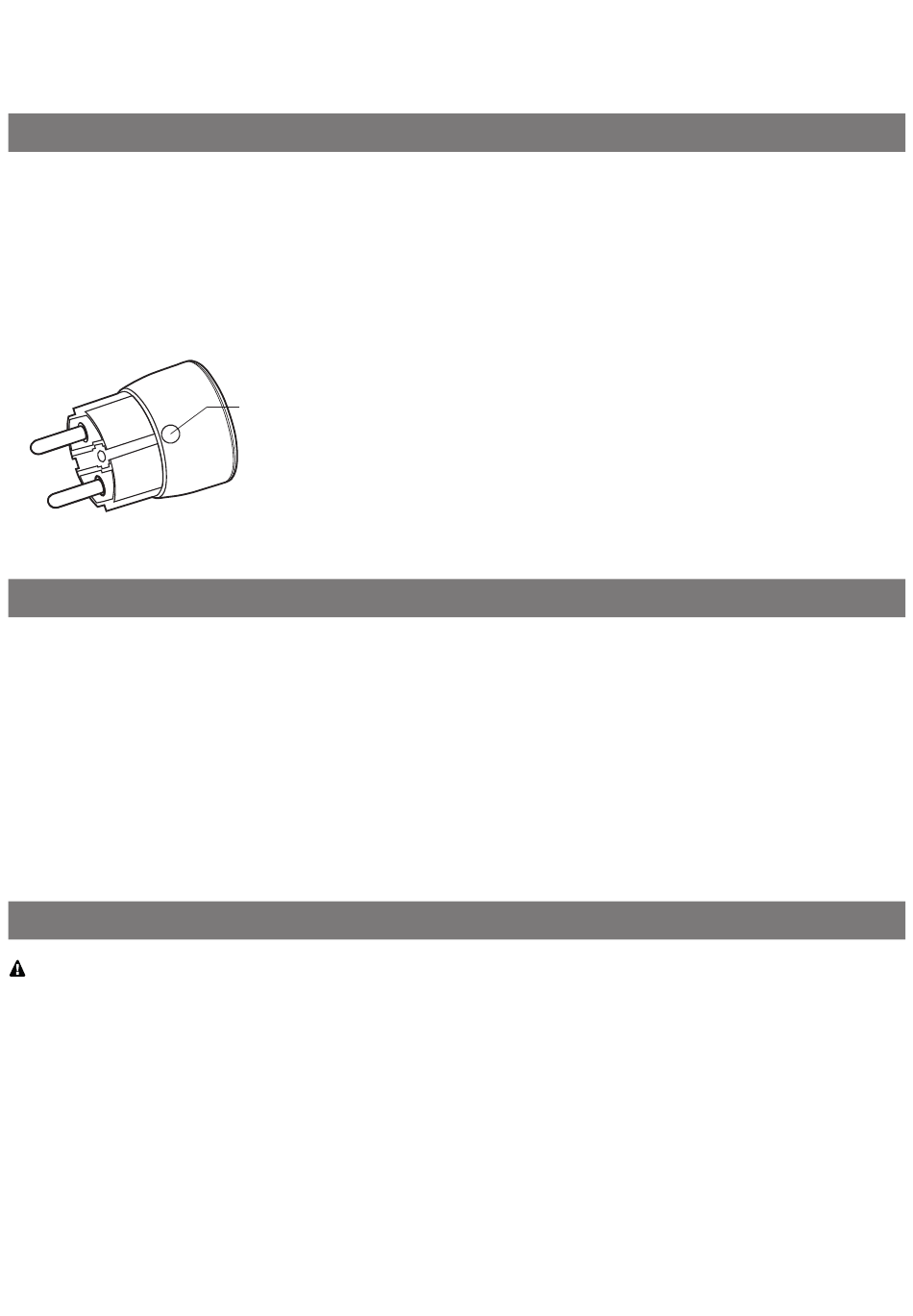

B-button
