Summary of Contents for Olympus ENDO-AID

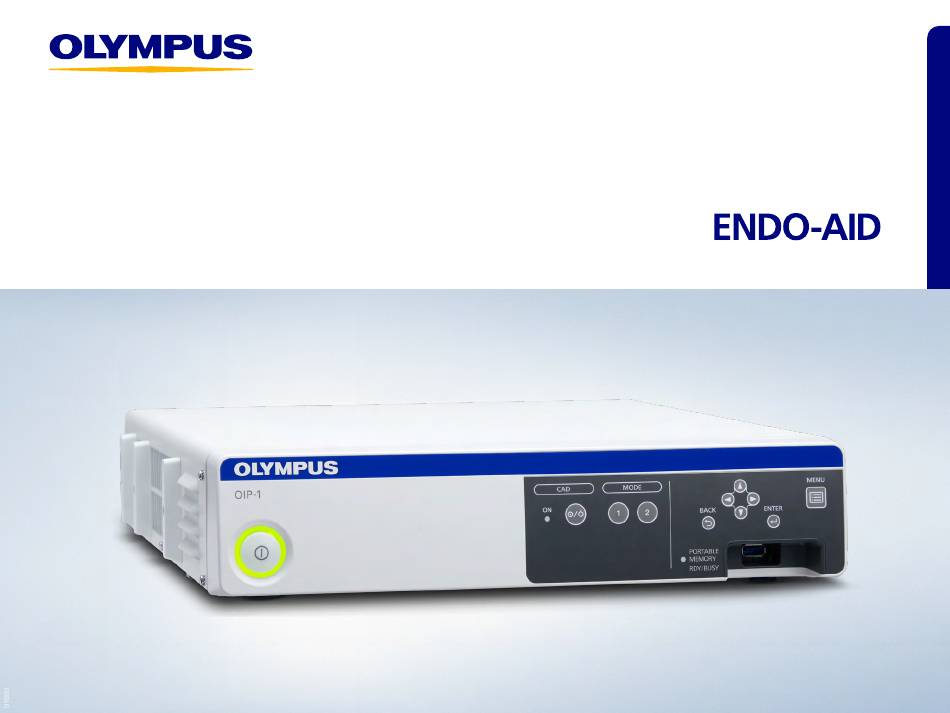

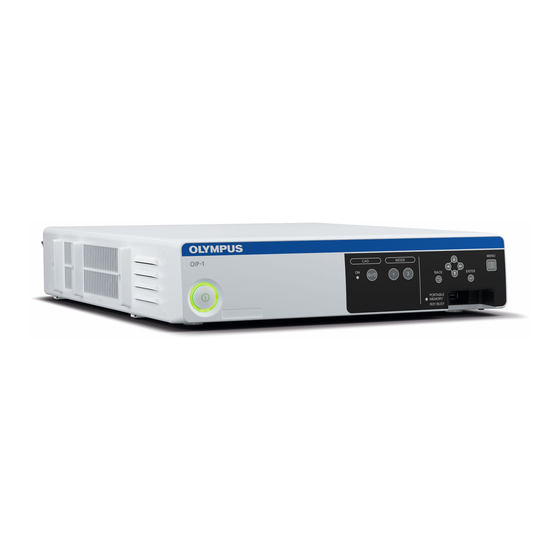

- Page 1 Endoscopy CAD System OIP-1 Quick Reference Guide...
- Page 2 Getting to Know ENDO-AID Computer-Aided Detection (CADe) Application ENDO-AID CADe is a high-performing computer-aided detection application for colonoscopy that uses artificial intelligence (AI) to suggest the potential presence of lesions such as colonic polyps, malignant neoplasms and adenomas. Directional Arrows...
-
Page 3: Automatic Activation/Deactivation
Automatic Activation/Deactivation Activating/Deactivating of the CADe Application How to Enable ENDO-AID CADe to Activate Automatically The CAD icon is visible when the CADe To set an automatic activation of the CADe application when application is active. the scope is connected, navigate to the section “Auto ON/OFF”... - Page 4 Two Visualization Modes Users Can Select Their Preference Target Mode Normal Mode Flags announce detection by highlighting Findings are surrounded by a marker directly on the endoscopic image the corners on the endoscopic image Findings are surrounded by a marker in a subimage Advantage: Advantage: Less distraction during the procedure —...
- Page 5 Configuration of Visualization Modes Setting Parameters according to User Preferences Different parameters such as the visualization of flags, subimage position and marker display can be configured according to user preferences. Configurations for Normal Mode · Length and thickness of the flags ·...
- Page 6 Target Mode duration. In the “remote switch” section of your CV-1500 user presets you can set the scope switch of your preference to control your ENDO-AID CADe. Look for the following options: Option dev. control 1: Emulates the CAD button, i.e., to turn CADe on and off.
- Page 7 Using the Target Mode Preferentially Work-around When preferentially using the Target Mode (unlimitedly active), the user might occasionally want to turn off the CADe support during an operation — for example, to avoid any possible intrusion during the procedure. However, when switching it on again, the application will restart in Normal Mode, so that the user must additionally push the Mode 1 button in order to activate Target Mode again.
- Page 8 Detection Types A and B Sensitivity and Specificity Settings Users can choose between two different detection types, which differ in their sensitivity and specificity. Users who wish to see more polyps, even very small ones, use Type A. Users who want a lower sensitivity, select Type B. The preferred detection type can be configured in the “Detection type”...
- Page 9 Colon CADe EVIS X1 Video Colonoscope CF-EZ1500DL/I CF-HQ1100DL/I CF-XZ1200L/I EVIS EXERA III Video Colonoscope CF-HQ190L/I CF-H190L/I CF-H185L/I PCF-PH190L/I PCF-H190L/I PCF-H190DL/I PCF-H190TL/I PCF-HQ190L/I EVIS LUCERA ELITE Video Colonoscope CF-HQ290ZL/I CF-HQ290L/I CF-H290L/I CF-H290ECI PCF-H290ZL/I PCF-H290DL/I PCF-H290TL/I PCF-H290L/I * Some endoscopes might not be available in certain areas.
- Page 10 Any user of this product must at all times observe all mandatory information for the product — found, in particular, on the labels and the instructions for use. ENDO-AID CADe is a supporting tool, and the user should not rely solely on the device for detection of abnormalities.
