U-Line H-1069 Instruction Manual

π
H-1069

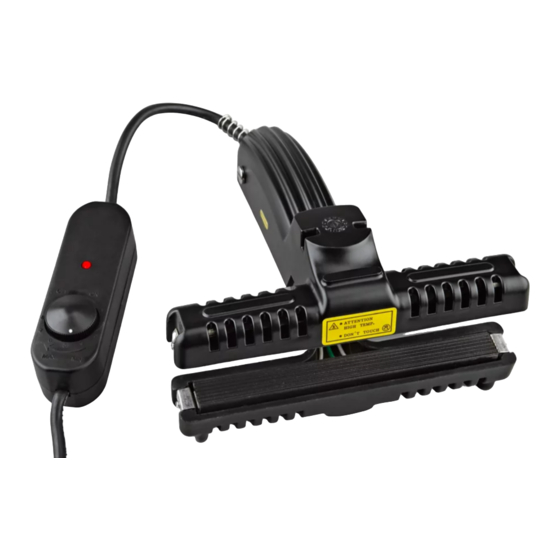

6" CRIMPER
HAND SEALER

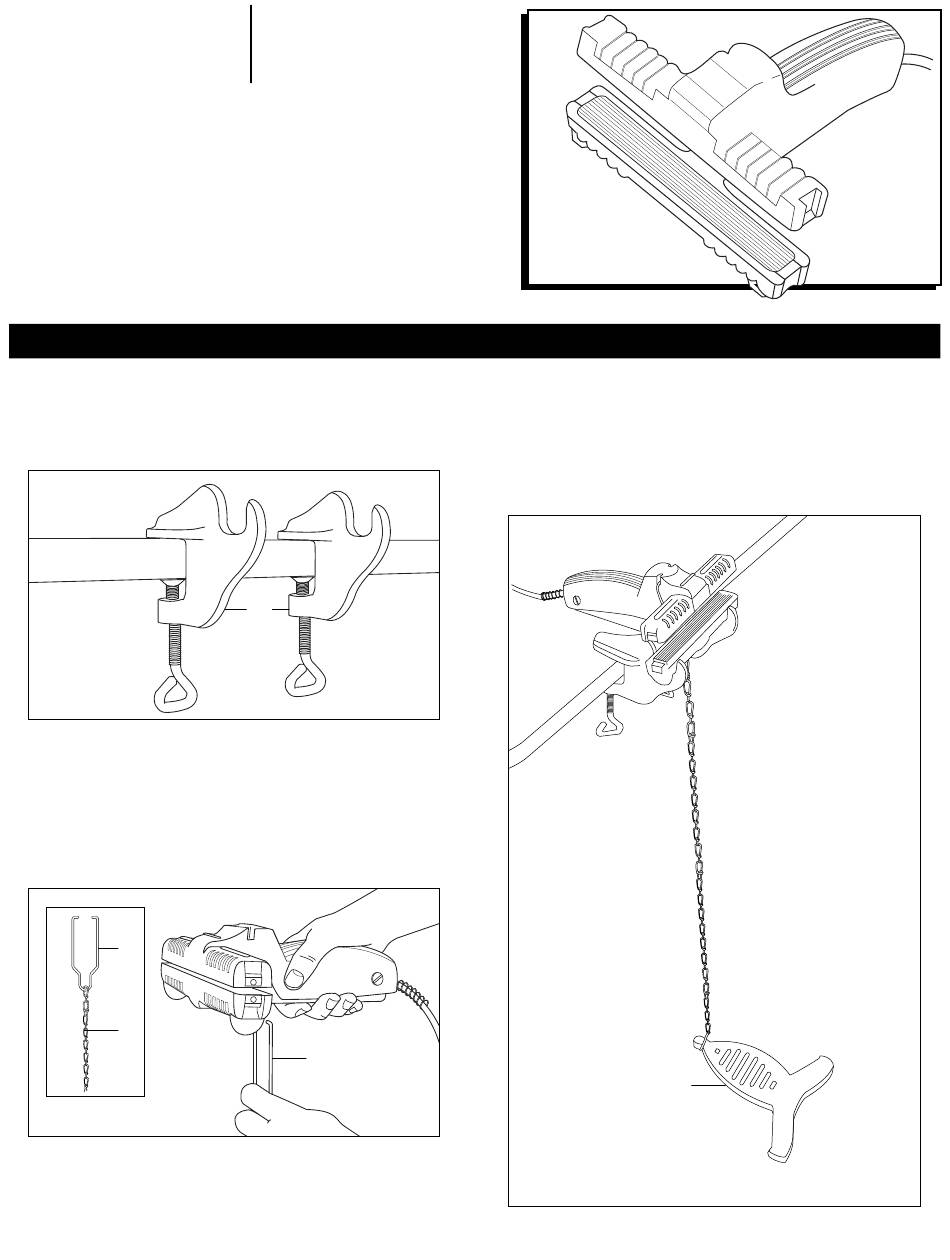

1. Attach the two metal clamp brackets (A) approximately
4⁄" apart to any straight-edge table with a depth 1⁄"
and height of up to 36". (See Figure 1)
Figure 1
2. Attach the silver link chain (B) to jaw bracket (C).
Holding the sealer jaws together, push the jaw
bracket pins up from the bottom of the sealer until
they snap over the top of the unit. Position the
bracket as close to the sealing jaws as possible.
(See Figure 2)
C
B
Figure 2
Rest the sealer on the clamp brackets. Attach the
other end of the chain to the "S" hook on the foot
pedal (D). (See Figure 3)
PAGE 1 OF 3
1-800-295-5510
uline.com
A
C

SETUP

3. Position the foot pedal directly underneath the
sealer and pointed away from you, so the tip with
the "S" hook is pointing toward the sealer (or table).
Leave enough tension in the chain so that the tip of
the pedal lifts 2-3" from the floor. (See Figure 3)
Figure 3
D
0614 IH-1069
