U-Line H-6705 Technical Data Manual

H-6705, H-6706
π
H-6707

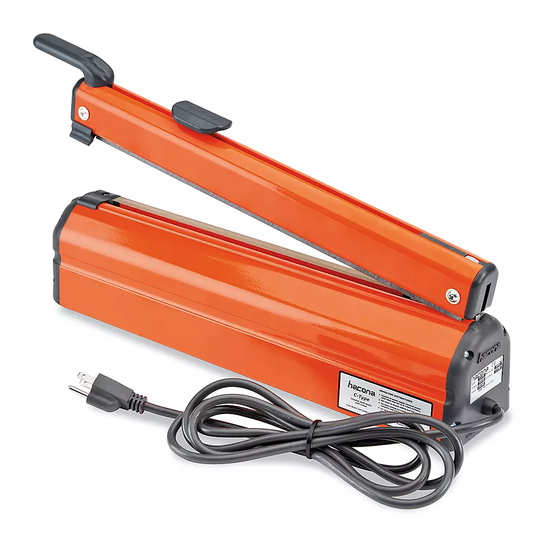

DELUXE IMPULSE SEALER
WITH CUTTER
TECHNICAL DATA
Types of films: LDPE, HDPE, PP, PVC, BOPP.
IMPORTANT! Read this manual thoroughly and
familiarize yourself with ALL controls and operating
features. Keep this manual for future reference and
maintenance.
The machine should be located and operated in a
dry room with good ventilation, and away from any
flammable materials and gases.
SETUP
The machine is ready for operation after it is plugged into
an approved 115VAC electrical outlet and the yellow LED
illuminates. (See Figure 1A) Before operation, adjust the
sealing time to match the film's type and width by conducting
a test sealing:
1. Set regulator button to lowest setting (#1 setting).
(See Figure 1B)
2. Place film between sealing head and sealing electrode.
3. Close sealing head, hold down handle and wait for end
of sealing cycle. LED changes from yellow to red while
machine is sealing.
4. When sealing is complete, LED changes from red to
yellow.
5. Allow seal to cool down for 1-2 seconds and lift handle.
6. If bag is not fully sealed, increase sealing time by turning
regulator button to higher setting and repeat steps 2-5.
PAGE 1 OF 12
1-800-295-5510
uline.com
OPERATION
USING THE CUTTING KNIFE
For safety reasons, the knife is secured in position by a spring.
To cut the film, press down on the knife and move it back
and forth.
A
B
Figure 1
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
NOTE: The quality of the seal depends on the
thickness of the film and its composition. Test
sealing should always be conducted at a low
setting. If necessary, sealing time can be increased
in small steps.
NOTE: To achieve the best seal, keep the handle
down for a few seconds after the sealing operation
is complete. This allows the seal to cool down under
pressure and become permanent.
WARNING! Sealing at a higher temperature than
necessary may result in premature wear of parts
and excessive melting of packaging material.
NOTE: For best results, first press the knife head down
in the middle of the sealed film and slide it back
and forth. This helps prevent film breakage on the
sides. (See Figure 2)
Figure 2
WARNING! To prevent injury, never operate the knife
head when the sealing bar is open. Before using,
always ensure that the knife is intact and positioned
correctly.
0918 IH-6705
