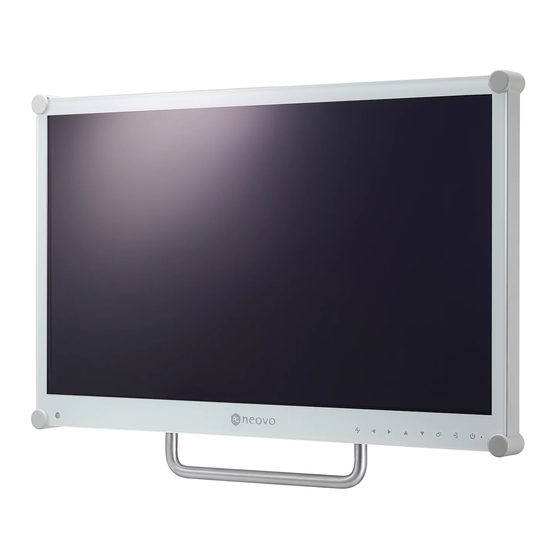

AG Neovo DR-24G User Manual
  1. Manuals
  2. Brands
  3. AG Neovo Manuals
  4. Monitor
  5. DR-24G
  6. User manual

AG Neovo DR-24G User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
DR-24G LCD Monitor
User Manual
www.agneovo.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the DR-24G and is the answer not in the manual?

Questions and answers

Related Manuals for AG Neovo DR-24G

Summary of Contents for AG Neovo DR-24G

  • Page 1 DR-24G LCD Monitor User Manual www.agneovo.com...
  • Page 2 TABLE OF CONTENTS Safety Information Federal Communications Commission (FCC) Notice (U.S. Only) ............4 WEEE ............................... 5 Precautions Notice ............................... 6 Cautions When Setting Up ........................7 Cautions When Using ..........................8 Cleaning and Maintenance ........................8 Notice for the LCD Display ........................9 Chapter 1: Product Description 1.1 Package Contents ..........................
  • Page 3 TABLE OF CONTENTS 3.8 Using ROTATE Function ........................25 3.9 Locking the OSD Menu ........................26 Chapter 4: On Screen Display Menu 4.1 Using the OSD Menu ......................... 27 4.2 OSD Menu Tree ..........................29 Chapter 5: Adjusting the LCD Display 5.1 Brightness ............................
  • Page 4 TABLE OF CONTENTS Safety Information Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5 TABLE OF CONTENTS WEEE Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
  • Page 6 TABLE OF CONTENTS Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •...
  • Page 7 TABLE OF CONTENTS Cautions When Setting Up Do not place the LCD monitor near heat sources, such as a heater, exhaust vent, or in direct sunlight. Do not cover or block the ventilation holes in the housing. Place the LCD monitor on a stable area. Do not place the LCD monitor where it may subject to vibration or shock.
  • Page 8 Do not rub or tap the surface of the glass with sharp are strongly advised to contact or abrasive items such as a pen or screwdriver. This AG Neovo for consultations and may result in scratching the surface of the glass. solutions to help ensure a most...
  • Page 9 TABLE OF CONTENTS Notice for the LCD Monitor In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD monitor may decrease with time.
  • Page 10 Quick Start Guide Power adapter Must use only the supplied power adapter: DR-24G ♦ ADAPTER TECH Model no.: ATM065T-P240 Quick Start Guide DR-24G LCD Monitor Rating: 24V/2.71A DR-24G_Quick Guide_V010 www.agneovo.com Power cord VGA cable Audio cable Warranty card Note: ♦...
  • Page 11 100mm 75mm other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most 75mm pleasurable and fulfilling display experience. Note: Take measures to prevent the...
  • Page 12 TABLE OF CONTENTS 1.3 LCD Display Overview 1.3.1 Front View and Keypad Buttons AUTO Hot Key: Auto Adjustment/Rotate Hot Key: PIP/PBP Select • For VGA input signal source, press to • Press repeatedly to select PIP/PBP option perform auto adjustment. (PIP →...
  • Page 13 TABLE OF CONTENTS 1.3.2 Rear View S-VIDEO COMPOSITE-1 COMPOSITE-2 AUDIO AUDIO DC IN HDMI DisplayPort AUDIO IN USB (SERVICE) RS232 DC IN COMPOSITE-1/COMPOSITE-2 IN Connect with the supplied power adaptor. Connect Composite (CVBS) signals input. COMPOSITE-1/COMPOSITE-2 OUT Connect Composite (CVBS) signals output. Connect DVI signals input.
  • Page 14 TABLE OF CONTENTS Chapter 2: Making Connections 2.1 Connecting the Power Connect the power cord to the power adapter. Connect the power adapter to the DC power input at the rear of the LCD monitor. Connect the power cord plug to a power outlet or a power supply. DC IN Note: Caution:...
  • Page 15 TABLE OF CONTENTS 2.2 Connecting Input Source Signals 2.2.1 Connecting a Computer Using VGA Cables Connect one end of a VGA cable to the VGA connector of the LCD display and the other end to the VGA connector of the computer. Using DVI Cables Connect one end of a DVI (DVI-D) cable to the DVI connector of the LCD display and the other end to the DVI connector of the computer.
  • Page 16 TABLE OF CONTENTS Using HDMI Cables Connect one end of an HDMI cable to the HDMI connector of the LCD display and the other end to the HDMI connector of the computer. HDMI Using DisplayPort Cables Connect one end of a DisplayPort cable to the DisplayPort connector of the LCD display and the other end to the DisplayPort connector of the computer.
  • Page 17 TABLE OF CONTENTS Using RS232 Cables Connect one end of an RS232 cable to the RS232 connector of the LCD display and the other end to the RS232 connector of the computer. RS232 Using Audio Cables Connect one end of an audio cable to the AUDIO IN connector at the rear of the LCD display and the other end to the audio out connector of the computer.
  • Page 18 TABLE OF CONTENTS 2.2.2 Connecting a Video Device Using Composite (CVBS) Cables Connect one end of a Composite (CVBS) cable to the COMPOSITE 1 / COMPOSITE 2 IN connector of the LCD display and the other end to the Composite (CVBS) connectors of your device. For audio input, connect an RCA cable to the AUDIO IN connectors of the LCD display and the audio out connector of your device.
  • Page 19 TABLE OF CONTENTS Using S-Video Cables Connect one end of an S-Video cable to the S-VIDEO connector of the LCD display and the other end to the S-VIDEO connector of your device. For audio input, connect an RCA cable to the AUDIO IN connectors of the LCD display and the audio out connector of your device.
  • Page 20 TABLE OF CONTENTS Using DisplayPort Cables Connect one end of a DisplayPort cable to the DisplayPort connector of the LCD display and the other end to the DisplayPort connector of your device. DisplayPort...
  • Page 21 TABLE OF CONTENTS Chapter 3: Using the LCD Display 3.1 Turning on the Power Note: ♦ The LCD display still consumes POWER button power as long as the power LED indicator cord is connected to the power outlet. Disconnect the power Connect the power cord to the power adapter.
  • Page 22 TABLE OF CONTENTS 3.3 Adjusting the Volume / Illuminator Function Hot Key Hot Key: Audio Volume Adjustment Press the button to call out the volume bar. Press the button to increase volume or the button to decrease volume. 3.3.1 Muting the Audio Press the buttons simultaneously to mute or unmute the audio.
  • Page 23 TABLE OF CONTENTS 3.5 Using Picture-in-Picture (PIP) The Picture-in-Picture (PIP) and Picture-by-Picture (PIP) feature allows viewing of more than one input source signal on the LCD display. 3.5.1 PIP/PBP Options Hot Key: PIP/PBP Select Press the button repeatedly to enable and scroll among the PIP/PBP options. Options are as follows: •...
  • Page 24 TABLE OF CONTENTS 3.5.2 PIP/PBP Swap The main and the sub source signals set in PIP/PBP Setting can be easily swapped using the keypad. Note: Sub source ♦ PIP/PBP Swap can only be Main source executed if PIP is enabled, see page 39.
  • Page 25 TABLE OF CONTENTS 3.7 Using Auto Adjustment Function Note: ♦ Auto Adjustment function is available only during VGA input signals. Hot Key: Auto Adjustment/Rotate ♦ It is recommended to use the auto adjustment function when Auto Adjustment function automatically tunes the LCD display to its using the LCD display for the optimal setting, including horizontal position, vertical position, clock, first time or after a resolution or...
  • Page 26 TABLE OF CONTENTS 3.9 Locking the OSD Menu Lock the OSD menu to protect the LCD display from unauthorised users or from accidentally pressing the keypad. To lock the OSD, press and hold the keypad buttons listed below for at least 5 seconds or until the O S D message appears.
  • Page 27 TABLE OF CONTENTS Chapter 4: On Screen Display Menu 4.1 Using the OSD Menu Operation Display the main menu screen. Press the button. 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R T E M P .
  • Page 28 TABLE OF CONTENTS Operation Select the submenu item. Press the button. 0 x 1 0 8 0 6 0 H z B R I G H T N E S S R I G H T N E S S C O N T R A S T O L O U R T E M P .
  • Page 29 TABLE OF CONTENTS 4.2 OSD Menu Tree 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R T E M P .
  • Page 30 TABLE OF CONTENTS Main Menu Submenu Remarks 3. IMAGE SETTING • SHARPNESS See page 35. • SATURATION • TINT • GAMMA • COLOUR RANGE • NOISE REDUCTION • PICTURE MODE • H. POSITION • V. POSITION • PHASE • CLOCK 4.
  • Page 31 TABLE OF CONTENTS Main Menu Submenu Remarks 10. SYSTEM 2 • SUPER RESOLUTION See page 46. • OVERDRIVE • MODE • DCR • LOW POWER • MONITOR ID 11. ECOSMART SENSOR • ENABLE See page 47. • MODE • LEVEL 12.
  • Page 32 TABLE OF CONTENTS Chapter 5: Adjusting the LCD Display 5.1 Brightness 1. Press the button to call out the 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S OSD window.
  • Page 33 TABLE OF CONTENTS Original Setting High Setting Low Setting BRIGHTNESS CONTRAST BLACK LEVEL...
  • Page 34 TABLE OF CONTENTS 5.2 Colour Temp. 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z N E U T R A L window. W A R M B R I G H T N E S S C O O L U S E R...
  • Page 35 TABLE OF CONTENTS 5.3 Image Setting 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z S H A R P N E S S window. B R I G H T N E S S S A T U R A T I O N C O N T R A S T 2.
  • Page 36 TABLE OF CONTENTS Item Function Operation Range Adjusts black and white levels for AUTO video. Press the button to FULL select the setting. Note: This menu option is only LIMITED available if the input source is HDMI. Signal source from PC - PC signal at a full range (Grayscale 0-255) state: COLOUR RANGE Monitor OSD colour range: Full Monitor OSD colour range: Limited...
  • Page 37 TABLE OF CONTENTS Item Function Operation Range Selects a predefined picture mode setting. STANDARD Note: When the setting is set Press the button to PICTURE MODE VIDEO to sRGB, the BRIGHTNESS, select the setting. sRGB CONTRAST, BLACK LEVEL, COLOR TEMP., and SATURATION functions will be disabled.
  • Page 38 TABLE OF CONTENTS 5.4 Aspect Ratio 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z F U L L window. R E A L B R I G H T N E S S N A T I V E Z O O M C O L O U R T E M P .
  • Page 39 TABLE OF CONTENTS 5.5 PIP Setting 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z P I P window. O F F B R I G H T N E S S P I P P B P C O L O U R T E M P .
  • Page 40 TABLE OF CONTENTS Note: Any input signal may be set as the main or the sub source signal. However, some input signals are not supported to be paired together as the main and the sub source signals. Refer to the following table for compatibility options: Main Source Input Source HDMI DISPLAYPORT COMPOSITE 1 COMPOSITE 2...
  • Page 41 TABLE OF CONTENTS 5.6 Anti-Burn-in 1. Press the button to call out the 1 9 2 0 x 1 0 8 0 6 0 H z E N A B L E OSD window. O F F B R I G H T N E S S I N T E R V A L ( H O U R S ) C O L O U R T E M P .
  • Page 42 TABLE OF CONTENTS 5.7 OSD Setting 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z T R A N S P A R E N C Y window.
  • Page 43 TABLE OF CONTENTS 5.8 Audio Setting 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z V O L U M E window. B R I G H T N E S S A U D I O C O L O U R T E M P .
  • Page 44 TABLE OF CONTENTS 5.9 System 1 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z S T A N D B Y window. O F F B R I G H T N E S S S O U R C E D E T E C T C O L O U R T E M P .
  • Page 45 Note: This menu option is only available if the input source is HDMI. Enables or disables the logo feature. If the setting is set to ON, the AG Neovo LOGO logo is briefly displayed after the display is powered on.
  • Page 46 TABLE OF CONTENTS 5.10 System 2 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z S U P E R R E S O L U T I O N window.
  • Page 47 TABLE OF CONTENTS 5.11 EcoSmart Sensor With the built-in EcoSmart sensor, users can enable the Eco Smart feature to automatically adjust the LCD screen brightness according to the ambient light. This feature comforts the eyes and helps optimise energy efficiency. Note: Please make sure the EcoSmart sensor is not covered when enabling this function.
  • Page 48 TABLE OF CONTENTS Item Function Operation Value Enables or disables the Eco Smart Press the button to ENABLE feature. select the setting. AUTO Press the button to Sets the auto brightness mode. USER select the setting. The mode can be set to: MODE •...
  • Page 49 TABLE OF CONTENTS 5.12 Input Select 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z V G A window. D V I B R I G H T N E S S H D M I D I S P L A Y P O R T C O L O U R T E M P .
  • Page 50 TABLE OF CONTENTS Chapter 6: Appendix 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the I N P U T S I G N A L the graphics card of the computer refresh rate of the graphics O U T O F R A N G E is set too high.
  • Page 51 TABLE OF CONTENTS 6.2 Supported Resolutions Resolution PC Mode Refresh Rate Horizontal Vertical IBM VGA IBM VGA Apple Mac II VESA VESA VESA VESA VESA VESA Apple Mac II VESA 1024 VESA 1024 VESA 1024 VESA 1280 1024 VESA 1280 1024 Apple Mac II 1152...
  • Page 52 TABLE OF CONTENTS Resolution Video Mode Refresh Rate Horizontal Vertical HDTV 1920 1080 HDTV 1920 1080 HDTV 1920 1080 HDTV 1920 1080 6.3 Troubleshooting Problem Possible Cause and Solution No picture. • Check if the LCD display is turned ON. •...
  • Page 53 TABLE OF CONTENTS Problem Possible Cause and Solution Cannot adjust the backlight • The Eco Smart feature is enabled. Set the ECOSMART SENSOR > ENABLE setting to OFF to disable the Eco Smart feature (see page setting. 47). The displayed picture looks •...
  • Page 54 TABLE OF CONTENTS 6.4 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging carton. Place the two foam cushions on each side of the LCD display for protection. Place the LCD display down in the box. Place the accessories box on the designated area (if necessary).
  • Page 55 TABLE OF CONTENTS Chapter 7: Specifications 7.1 Display Specifications DR-24G Panel Panel Type LED-Backlit TFT LCD (VA Technology) Panel Size 23.8" Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.2745 mm Brightness 250 cd/m² Contrast Ratio 20,000,000:1 (DCR) Viewing Angle (H/V) 178°/178°...
  • Page 56 541.7 528.6(opening dimension) 13.1 13.1 M4xL10 (VESA MOUNT) 137.4 137.4 277.4 277.4 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2022 AG Neovo. All rights reserved. DR-24G Eprel registration number: 1053063 DR24G0_UM_V010...
