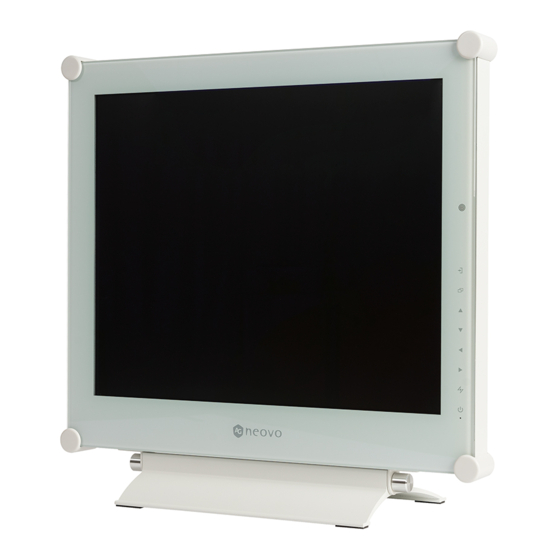

- Page 1 DR-17G & DR-22G LCD Monitor User Manual displays.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information Federal Communications Commission (FCC) Notice (U.S. Only) ............4 WEEE ............................... 5 EMC Information ............................6 Precautions Notice ............................... 10 Cautions When Setting Up ........................11 Cautions When Using ..........................12 Cleaning and Maintenance ........................13 Notice for the LCD Display ........................ - Page 3 6.1 Warning Messages ..........................57 6.2 Supported Resolutions ........................58 6.3 Troubleshooting ..........................59 6.4 Transporting the LCD Display ......................61 Chapter 7: Specifications 7.1 Display pecifications ........................62 7.2 Display Dimensions ..........................63 7.2.1 DR-17G Dimensions ....................... 63 7.2.2 DR-22G Dimensions ....................... 63...
-
Page 4: Safety Information
SAFETY INFORMATION Safety Information Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Weee
SAFETY INFORMATION WEEE Information for users applicable in European Union countries. The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. -
Page 6: Emc Information
Guidance and manufacturer’s declaration – electromagnetic emissions The DR-17G and DR-22G is intended for use in the electromagnetic environment specified below. The customer or the user of the DR-17G and DR-22G should assure that it is used in such an environment. Not Life-supporting Medical Equipment. - Page 7 Guidance and manufacturer’s declaration – electromagnetic immunity The DR-17G and DR-22G is intended for use in the electromagnetic environment specified below. The customer or the user of the DR-17G and DR-22G should assure that it is used in such an environment. Not Life-supporting Medical Equipment.
- Page 8 Guidance and manufacturer’s declaration – electromagnetic immunity The DR-17G and DR-22G is intended for use in the electromagnetic environment specified below. The customer or the user of the DR-17G and DR-22G should assure that it is used in such an environment. Not Life-supporting Medical Equipment.
- Page 9 Recommended separation distances between portable and mobile RF communications equipment and the DR-17G and DR-22G The DR-17G and DR-22G is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the DR-17G and DR-22G can help prevent...
-
Page 10: Precautions
PRECAUTIONS Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of ISO 7010-M002: Follow instructions a potential haz a rd that could result for use in personal injury or damage to the product. -
Page 11: Cautions When Setting Up
PRECAUTIONS Cautions When Setting Up Do not place the LCD display near heat sources, such as a heater, exhaust vent, or in direct sunlight. Do not cover or block the ventilation holes in the housing. Place the LCD display on a stable area. Do not place the LCD display where it may subject to vibration or shock . -
Page 12: Cautions When Using
Users who have already mounted the display on the ceiling or any other horiz o ntal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience. -
Page 13: Cleaning And Maintenance
This is acceptable and is not considered a failure. The intended use of the DR-17G, DR-22G is to serve as a LCD monitor for integration with the hospital system.It is designed for general purpose for adults using at hospital environment,continuous operation. For displaying and viewing of images for reference. - Page 14 PRECAUTIONS Notice for the LCD Display Accessory equipment connected to the analog and digital interfaces must be in compliance with the respective nationally harmoniz e d IEC standards (i.e. IEC 60950 for data processing equipment, IEC 60065 for video equipment, IEC 61010-1 for laboratory equipment, and IEC 60601-1 for medical equipment). Furthermore all configurations shall comply with the system standard IEC 60601-1.
-
Page 15: Chapter 1: Product Description
Power adapter Must use only the supplied power adapter: DR-17G & DR-22G ♦ ADAPTER TECH Quick Start Guide Model no.: ATM065T-P240 DR-17G & DR-22G LCD Monitor Rating: 24V/2.71A DR-17G/DR-22G_Quick Guide_V010 displays.agneovo.com Power cord VGA cable Audio cable Warranty card Note: ♦... -
Page 16: Wall Mounting Installation Preparation
75mm display on the ceiling or any other horiz o ntal surface overhead are strongly advised to contact DR-17G AG Neovo for consultations and solutions to help ensure a most 100mm pleasurable and fulfilling display experience. Note:... -
Page 17: Removing The Base Stand
Removing the Base Stand ay the CD display face down on a flat even surface. Note: Remove the screws* securing the base stand from the LCD (*) The screw siz e is M4 x 10mm. display. Detach the base stand. DR-17G DR-22G... -
Page 18: Lcd Display Overview
PRODUCT DESCRIPTION 1.3 LCD Display Overview 1.3.1 Front View and Keypad Buttons DR-17G DR-22G... - Page 19 PRODUCT DESCRIPTION AUTO Hot Key: Auto Adjustment/Rotate Hot Key: PIP/PBP Select • For VGA input signal source, press to • Press repeatedly to select PIP/PBP option (PIP FF). perform auto adjustment. • Press for 3 seconds to enable the Rotate •...
-
Page 20: Rear View
PRODUCT DESCRIPTION 1.3.2 Rear View S-VIDEO DR-17G DR-22G COMPOSITE-1 COMPOSITE-2 AUDIO AUDIO DC IN HDMI DisplayPort AUDIO IN USB (SERVICE) RS232 DC IN COMPOSITE-1/COMPOSITE-2 IN Connect with the supplied power adaptor. Connect Composite (CVBS) signals input. COMPOSITE-1/COMPOSITE-2 OUT Connect Composite (CVBS) signals output.
