GE DINAMAP Compact TS Service Manual page 16

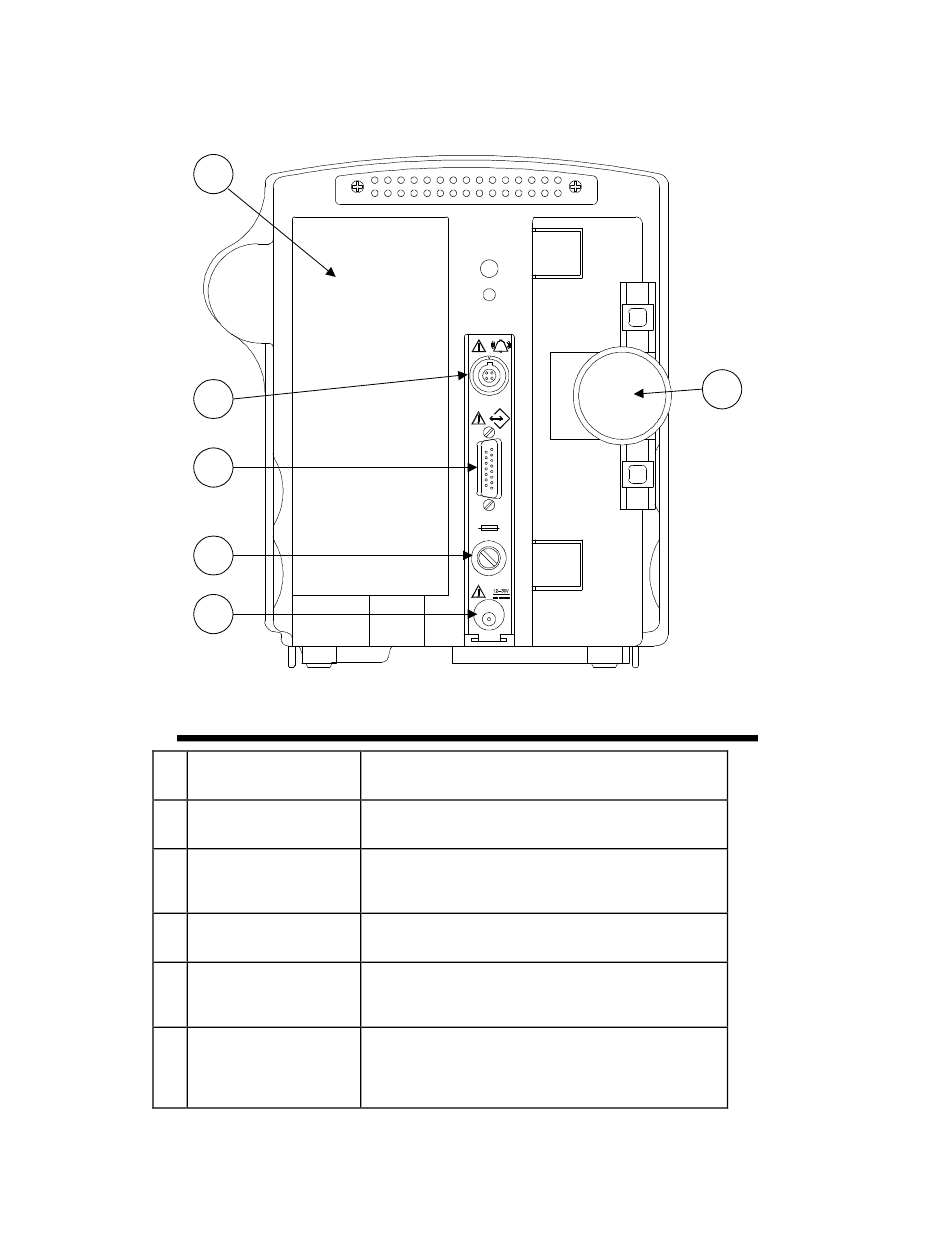

Rear Panel Connections
2
6
5
4
3
1 POLE CLAMP
2 BATTERY COVER
3 EXTERNAL POWER
4 FUSE HOLDER
5 DATA INTERFACE
CONNECTOR
6 REMOTE ALARM
CONNECTOR
16
T3.15A 250V
Used to clamp the monitor to a pole or stand.
Securely retains and protects the internal battery.
Connection socket for the supplied external power
converter ONLY.
External power source line fuse holder.
Host communications port: 15 way D-type RS232 serial
port for use with equipment conforming to IEC-601 only.
Remote Alarm port with both normally open and
normally closed isolated contacts for use with equipment
conforming to IEC-601 only. (if so equipped)
1
