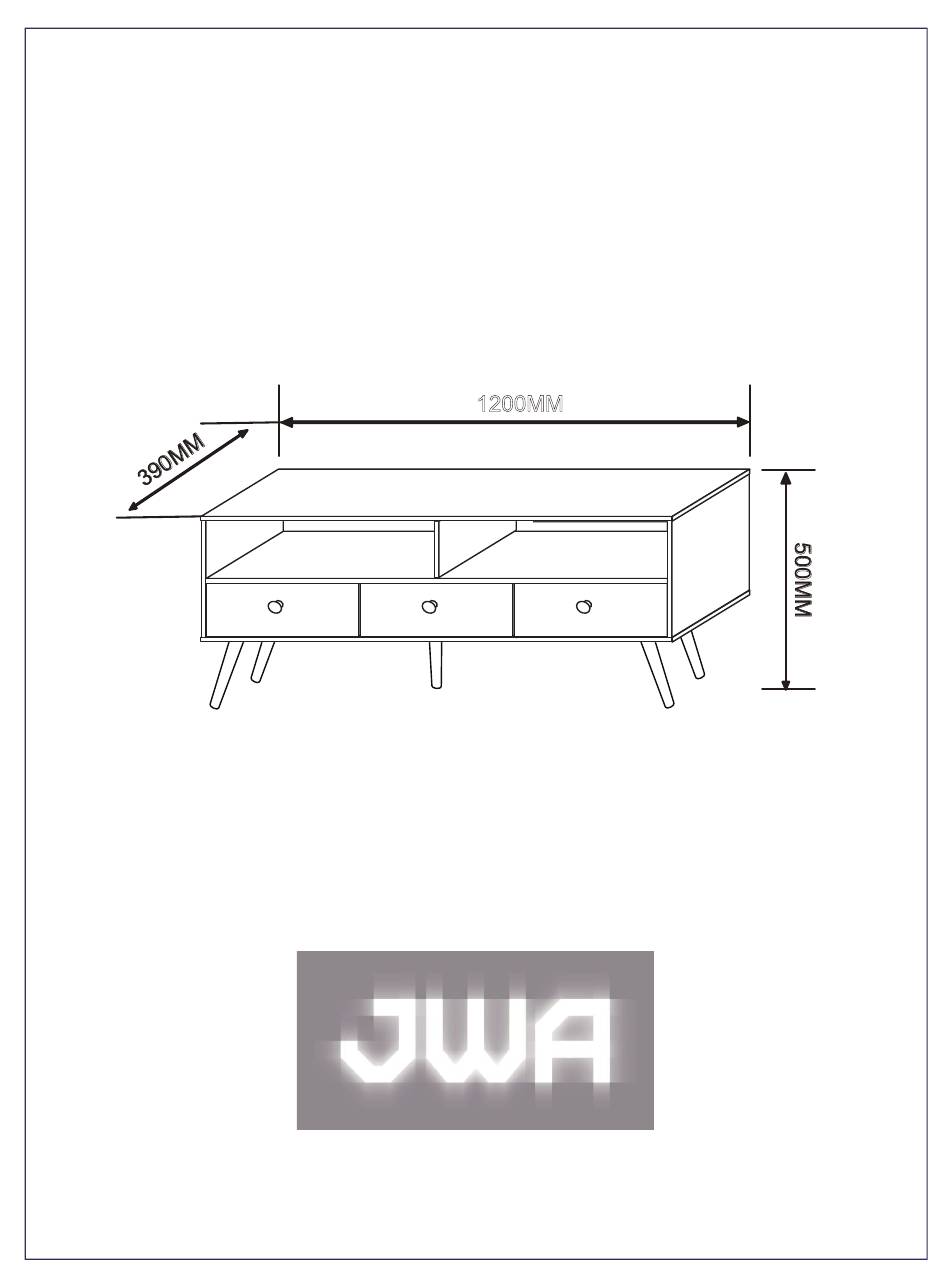

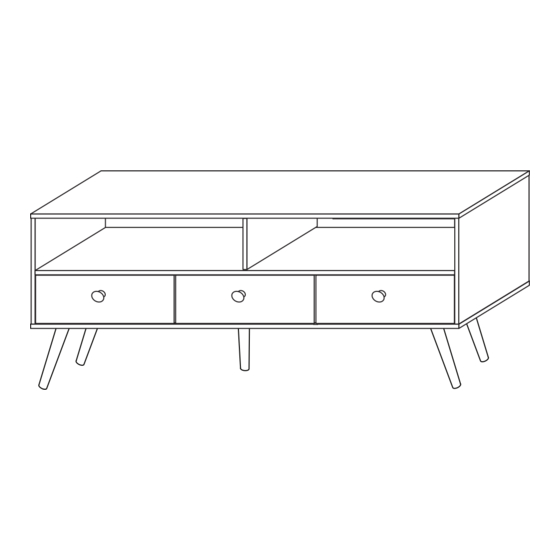

- Page 1 ASSEMBLY INSTRUCTION MARTOS ENTERTAINMENT UNIT ITEM CODE 68549 1200MM Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST M7X39mm M15X12mm M8X30mm M5X40mm 20pcs 20pcs 36pcs 16pcs M3.5X14mm M4X14mm 20pcs 4pcs 36pcs 3pcs M3X16mm M4x30mm M3.5x14mm 4pcs 1pcs 14pcs 1pcs 3pcs 3pcs 3pcs 3pcs SIDE PANEL DRAWER BASE SIDE PANEL DRAWER SIDE PANEL DRAWER SIDE PANEL MIDDLE PANEL MIDDLE PANEL DRAWER BACK PANEL SHELF... - Page 4 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it.
- Page 5 STEP 1: Fix cam pin (A)to panels (1)(2)(3). Fix runners (CL)(CR) to panels with screws(G). STEP 2: Fix cam pin (A)to panel (5). Attach panel(3) to panel (5) with cam lock(B) and dowel (C).
- Page 6 STEP 3: Attach panels (1)(2) to the body with cam lock parts. STEP 4: Attach bottom panel(6) to the body with screws(D).
- Page 7 STEP 5: Fix cam pin (A)to panel (7). Attach top panel(7) to the body with cam lock parts. STEP 6: Fix metal plates(F) to bottom panel(6) with screws(E).
- Page 8 STEP 7: Fix legs(I)(J) to bottom panel(6). STEP 8: Attach back panel(8) to the body with screws(K).
- Page 9 Attach panels (10)(11) to panel(12) with dowel (C) and STEP 9: screw(D). Insert drawer base as shown. Fix cam pin (A)to panels (13)(14)(15). Attach drawer front to the body with cam lock parts. STEP 10: Assemble drawers to the body.
- Page 10 ASSEMBLY COMPLETE...
- Page 11 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 12 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
