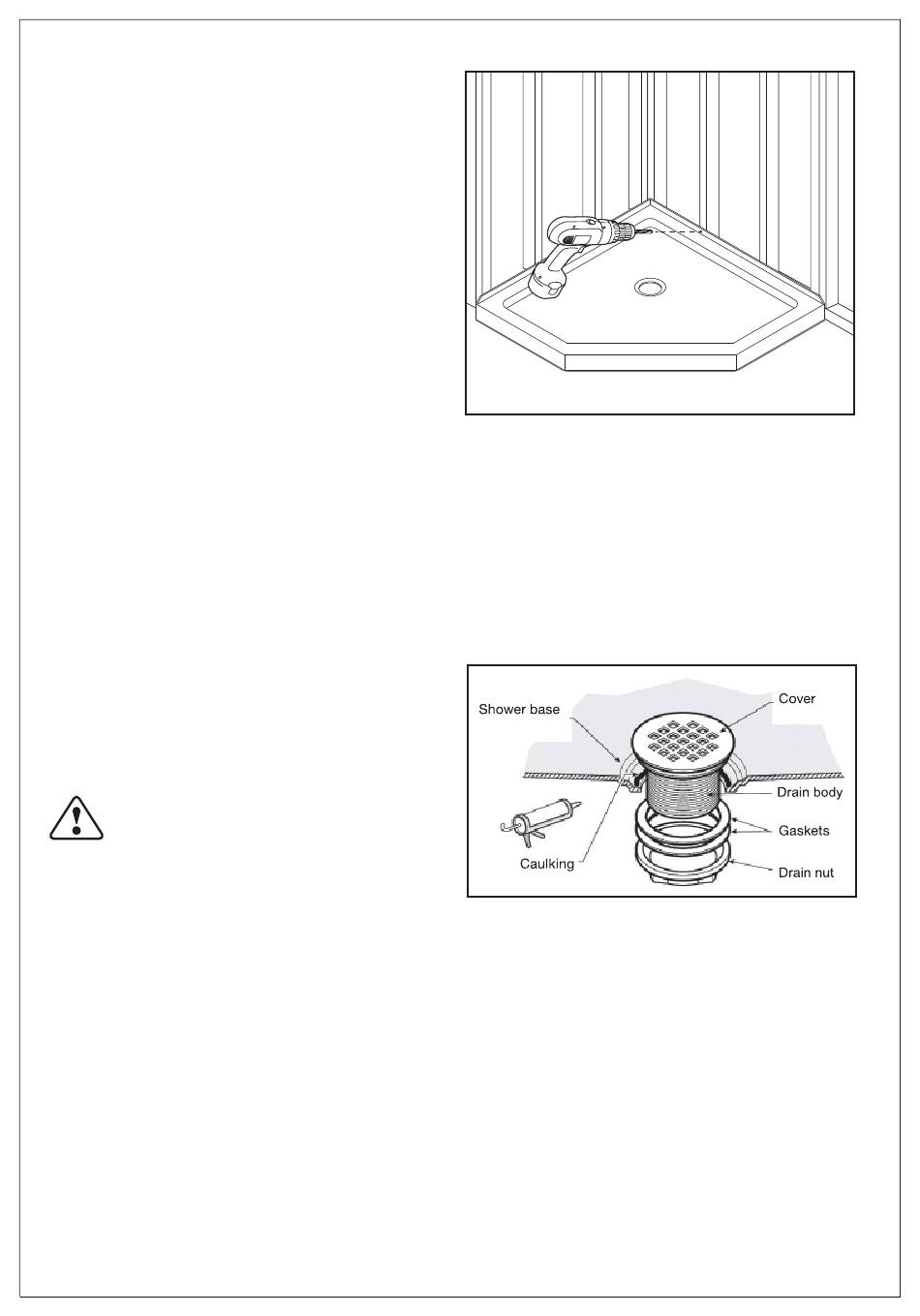

Anzzi Titan SB-AZ009WC Install & Operation Manual page 6

STEP 3
Drill 3/16" holes at all stud locations on top
●
flanges. (Fig 3)
IMPORTANT: Drill 3/16" clearance holes into
flanges only. Do not drill 3/16" holes directly
into studs. Drill chuck can damage base. Use
an extended bit holder to reduce risk of drill
chuck hitting base.
STEP 4
Install the shower drain (NOT INCLUDED)
●
according to the drain installation manual
(supplied with the drain). (Fig 4)
ATTENTION
Plumber's putty will degrade base material,
●
causing cracks and potential property
damage. DO NOT use plumber's putty to
seal between drain and base. Use sealant
or gasket.
Fig. 3
Fig. 4
4
