Summary of Contents for Tar River Greenscape 750

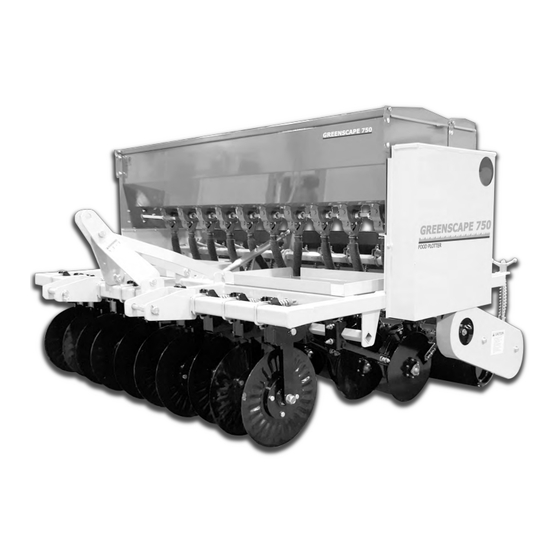

- Page 1 Food Plotter No Till Drill Greenscape 750 Operator’s Manual Rel. 06/22...
- Page 2 Greenscape 750 Food Plotter No Till Drill Page left blank intentionally...
- Page 3 Greenscape 750 Food Plotter No Till Drill TO THE DEALER: Assembly and proper installation of this product is the responsibility of the Tar River dealer. Read manual in- structions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Owner’s/Operator’s Manual are completed before releasing equipment to the owner.
-
Page 4: Table Of Contents
Greenscape 750 Food Plotter No Till Drill Introduction Introduction …………………………………………………………………………………………….. 5 Technical Specifications ……………………………………………………………………………….. 5 Safety …………………………………………………………………………………………………… 6 Safety Signal Words ……………………………………………………………………………………. 6 General Safety Guidelines ……………………………………………………………………………… 7 Safety Decal Care ………………………………………………………………………………………. 7 Before Operation ……………………………………………………………………………………….. 8 During Operation ……………………………………………………………………………………….. 9 Highway And Transport Operations ……………………………………………………………………... -
Page 5: Introduction
Greenscape 750 Food Plotter No Till Drill Introduction Thank you for purchasing your Greenscape Food Plotter No-Till Drill. The Greenscape Food Plotter No-Till Drill is the latest in the Greenscape family of the most reliable seeders produced in the US over the past 20 years. -
Page 6: Safety
Greenscape 750 Food Plotter No Till Drill Important Safety Information Safety It is important that you read the entire manual and to become familiar with this product before you begin using it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues arising from modification. -
Page 7: General Safety Guidelines
Greenscape 750 Food Plotter No Till Drill Important Safety Information General Safety Guidelines Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. De- signers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment. -
Page 8: Before Operation
Greenscape 750 Food Plotter No Till Drill Important Safety Information How to install Safety Signs: Be sure that the installation area is clean and dry. • Decide on the exact position before you remove the backing paper. • Remove the smallest portion of the split backing paper. -
Page 9: During Operation
Greenscape 750 Food Plotter No Till Drill Important Safety Information During Operation Children should not be allowed on the product. • Clear the area of small children and bystanders before moving the feeder. • If using a towing unit, securely attach feeder by using a hardened 3/4” pin, a metal retainer, and safety •... -
Page 10: Highway And Transport Operations
Greenscape 750 Food Plotter No Till Drill Important Safety Information Highway and Transport Operations Adopt safe driving practices. • Keep the brake pedals latched together at all times. Never use independent braking with machine in tow • as loss of control and/or upset of unit can result. - Page 11 Greenscape 750 Food Plotter No Till Drill Important Safety Information Highway and Transport Operations Maneuver the tractor or towing vehicle at safe speeds. • Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or death.
-
Page 12: Attaching To Tractor
Greenscape 750 Food Plotter No Till Drill Attaching to Tractor Warning: When attaching the Greenscape Food Plotter, Never allow anyone to stand between the Greenscape Food Plotter and the tractor. Serious injury or death can occur! Attaching the Greenscape Food Plotter Back up the tractor to the Greenscape •... -
Page 13: Chain Routing
Greenscape 750 Food Plotter No Till Drill Chain Routing Warning: Never attempt to adjust or change Greenscape Food Plotter roller chains when machine is running. Serious injury or death can occur! Before attempting any work on the tractor or implement, shut off tractor engine, remove key and set brake. -
Page 14: Seed Rate Adjustment
Greenscape 750 Food Plotter No Till Drill Seed Rate Adjustment Large Hopper To increase the seed rate, turn the knob on the right side of the hopper clockwise, and lock the jam nuts on hte threaded shaft to assure seeding accuracy. -
Page 15: Setting Application Charts
Greenscape 750 Food Plotter No Till Drill Setting Application Rates The most accurate way to set application rates is to drive a predetermined distance and physically catch the seeds dispensed. To do this, remove at least one drop hose and tie a plastic bag onto bottom of seed cup. Trav- el a determined distance and then weigh the seeds in the bag. -
Page 16: Calibration Charts
Greenscape 750 Food Plotter No Till Drill Calibration Charts Calibration Chart - Greenscape 750 Large Hopper - Chart 2 Seed Cup Position Seed Type 1-1/4 1-1/2 1-3/4 Gate Pos. Kentucky 31 Tall Fescue Annual Rye Grass Kentucky Blue Grass Perennial Rye Grass... - Page 17 Greenscape 750 Food Plotter No Till Drill Calibration Charts Calibration Chart - Greenscape 750 Small Hopper - Chart 4 "lbs. per acre" Flute Engagement Seed Type 3/16 1-1/8 Sorghum Kobe Lespedza Korean Lespedza Bi-Color Lespedza Brown Top Millet Japanese Millet...
-
Page 18: Lubrication And Maintenance
Greenscape 750 Food Plotter No Till Drill Lubrication and Maintenance Important: It is important to thoroughly clean the seeder after use. Failure to do so can cause irreparable dam- age to the seed cups and drive system. Grease and turn the Seed adjustment handle to ensure grease lubricates the threads. -
Page 19: Torque Specifications
Greenscape 750 Food Plotter No Till Drill Torque Specifications Notes: This chart is an approximate estimate of torque values. Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual. - Page 20 Greenscape 750 Food Plotter No Till Drill Page left blank intentionally...
-
Page 21: Parts Breakdown
Food Plotter No Till Drill Greenscape 750 Parts Manual Rel. 06/22... - Page 22 Greenscape 750 Food Plotter No Till Drill Hopper Assembly...
- Page 23 Greenscape 750 Food Plotter No Till Drill Hopper Assembly Hopper Assembly Item Part # Description Qty. SB101180 SMV emblem SB101181 SMV offset bracket SB101329 Small hopper assembly 7” SB136279 Small hopper scatter pan hose (12”) SB101330 Large hopper assembly 7”...
- Page 24 Greenscape 750 Food Plotter No Till Drill Frame Assembly...
- Page 25 Greenscape 750 Food Plotter No Till Drill Frame Assembly Item Part # Description Qty. SB135348 Upper Guard Weldment SB500073 Washer lock 1/2” SB500156 Bolt HH 1/2”-13x1.00” SB135352 Lower guard weldment SB10000202 Roller chain #40 x 89 links (small hopper) SB135209...
- Page 26 Greenscape 750 Food Plotter No Till Drill Coulter Assembly RH Coulter Assembly LH Coulter Assembly Note: Item 3, PN SA7001 Coulter Disc Complete is used on the LH and RH Coulter Assembly. The difference is the side the hub is on. The hub facies the RH side of the implement on the RH Coulter Assembly and opposite for the LH Assembly.
- Page 27 Greenscape 750 Food Plotter No Till Drill Coulter Assembly Item Part # Description Qty. SA8008R Coulter kit - RH SA8008L Coulter kit - LH SA7001 Coulter disc complete SA8006 U-bolt SA8005 Coulter spring arm SA8004 Coulter spring LNM1620 Self locking nut M16-2.0...
- Page 28 Greenscape 750 Food Plotter No Till Drill Disc Assembly Front Disc Assembly Rear Disc Assembly Disc Assembly - Front Disc Assembly - Rear SA7001F SA7001R...
- Page 29 Greenscape 750 Food Plotter No Till Drill Disc Assembly Item Part # Description Qty. SA7001R Disc assembly complete, rear SA7007 Seed drill casting, rear SA7001F Disc assembly complete, front SA7006 Seed drill casting, front SA6001 Disc support bracket long (rear)
- Page 30 Greenscape 750 Food Plotter No Till Drill Disc Assembly Front Disc Assembly Rear Disc Assembly Disc Assembly - Front Disc Assembly - Rear SA7001F SA7001R...
- Page 31 Greenscape 750 Food Plotter No Till Drill Disc Assembly Item Part # Description Qty. BM061025 Bolt M6-1.0x25 NM0610 Nut M6-1.0 SA4027 Stud, disc assembly *Warning! See note below. SA4028 Stud, disc assembly *Warning! See note below. NM1620L Nut M16-2.0 LH threads (for SA4027 LH stud only) NM1620 Nut M16-2.0 (for SA4028 RH stud only)
- Page 32 Greenscape 750 Food Plotter No Till Drill Cultipacker Assembly...
- Page 33 Greenscape 750 Food Plotter No Till Drill Frame Assembly Cultipacker Item Part # Description Qty. SB135200 Cultipacker frame weldment SB500193 Nut nylock 5/8”-11 G2 SB500057 Washer flat 5/8” DL8004 Spring SB135214 Cultipacker adjustment mount weldment SB500113 Nut nylock 3/4”-10 G2 SB500161 Bolt HH 3/4”-10x2-1/2”...
- Page 34 Greenscape 750 Food Plotter No Till Drill Decal Placement...
-
Page 35: Decals
Decal Scale small hopper SB101379 Decal Red reflective strip 2”X9” SB100761 Decal Emerge Plus SB135715 Decal Greenscape 750 Small hopper calibration Chart 3 SB135716 Decal Greenscape 750 Small hopper calibration Chart 4 SB135714 Decal Greenscape 750 Large hopper calibration Chart 2... -
Page 36: Warranty
Greenscape 750 Food Plotter No Till Drill Warranty LIMITED WARRANTY Belco Resources Equipment warrants to the original purchaser of any new piece of machinery from Belco Re- sources Equipment, purchased from an authorized Belco Resources Equipment dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year for non-commercial, state, and mu- nicipalities’... - Page 37 Greenscape 750 Food Plotter No Till Drill Page left blank intentionally...
- Page 38 Greenscape 750 Food Plotter No Till Drill 401 Jeffreys Road Tel: 252-822-7140 Rocky Mount, NC 27804 Fax: 252-787-5855 www.tarrivermfg.com Sales@tarrivermfg.com...
