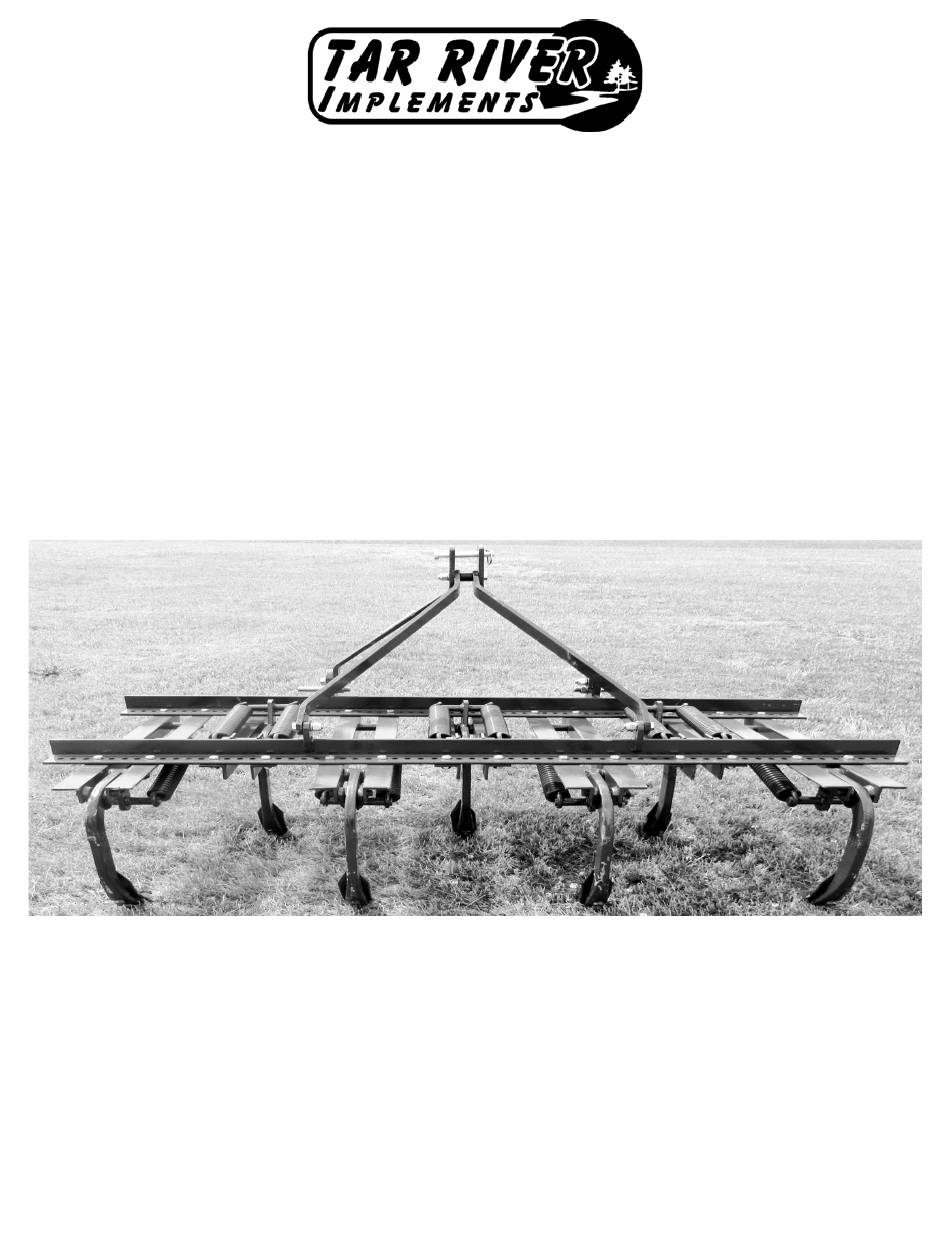

- Page 1 Spring Loaded Cultivator SLC Series Operator’s Manual Printed October 2023...
- Page 2 SLC Spring Loaded Cultivator Page left blank intentionally...
- Page 3 Tar River service parts, and the necessary tools and equipment to handle all your needs. Use only genuine Tar River service parts. Substitute parts will void the warranty and may not meet standards required for safe and satisfactory operation.
-
Page 4: Table Of Contents
SLC Spring Loaded Cultivator Table of Contents Introduction …………………………………………………………………………………………….. 5 Technical Specifications ……………………………………………………………………………….. 5 Safety …………………………………………………………………………………………………… 6 Safety Signal Words ……………………………………………………………………………………. 6 General Safety Guidelines ……………………………………………………………………………… 7 Safety Decal Care ………………………………………………………………………………………. 7-8 Before Operation ……………………………………………………………………………………….. 8 During Operation ……………………………………………………………………………………….. 9 Highway And Transport Operations ……………………………………………………………………... -
Page 5: Introduction
SLC Spring Loaded Cultivator Introduction Thank you for purchasing your Tar River Implements Spring Loaded Cultivator. The Tar River Implements Spring Loaded Cultivators are available in three sizes; 36”, 54” & 72” working widths. Each implement is made using 3/8” Steel Angle Iron with 3/4” wide shanks. -
Page 6: Safety
SLC Spring Loaded Cultivator Important Safety Information Safety It is important that you read the entire manual and to become familiar with this product before you begin using it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues arising from modification. -
Page 7: General Safety Guidelines
SLC Spring Loaded Cultivator Important Safety Information General Safety Guidelines Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment. -
Page 8: Before Operation
SLC Spring Loaded Cultivator Important Safety Information How to Install Safety Signs Be sure that the installation area is clean and dry. • Decide on the exact position before you remove the backing paper. • Remove the smallest portion of the split backing paper. •... -
Page 9: During Operation
SLC Spring Loaded Cultivator Important Safety Information During Operation Children should not be allowed on the product. • Clear the area of small children and bystanders before moving the machine. • If using a towing unit, securely attach machine by using a hardened 3/4” pin, a metal retainer, and safety •... -
Page 10: Highway And Transport Operations
SLC Spring Loaded Cultivator Important Safety Information Highway and Transport Operations Adopt safe driving practices. • Keep the brake pedals latched together at all times. Never use independent braking with machine in tow • as loss of control and/or upset of machine can result. Always drive at a safe speed relative to local conditions and ensure that your speed is low enough for an •... - Page 11 SLC Spring Loaded Cultivator Important Safety Information Highway and Transport Operations Maneuver the tractor or towing vehicle at safe speeds. • Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or death. • Avoid loose fill, rocks and holes, they can be dangerous for equipment operation or movement. •...
-
Page 12: Operating Instructions
SLC Spring Loaded Cultivator Assembly Operating Instructions The Spring Loaded Cultivator is extremely suitable for use in stone and root obstructed soil. When one tine strikes a buried, immovable object, the other tines will continue to work at the set depth. The Spring Loaded Cultivator may be used for loosening and aerating soil to a depth of nine inches, preparing seed beds quickly and economically. - Page 13 SLC Spring Loaded Cultivator Assembly Operating Instructions Before Use & Adjustments Before mounting of cultivator make sure that all nuts & bolts are properly secured. Also determine soil and trash conditions of the field and make the preliminary adjustments. e.g. Tine leveling To eliminate uneven working and side draft, leveling is done by means of top link.
-
Page 14: Maintenance
SLC Spring Loaded Cultivator Assembly Maintenance Instructions Operation, Care & Maintenance of Cultivator 1. All the shovels of the tines should be set at equal depth. To do this, place the cultivator on level ground and see that all the shovels touch the ground. 2. -
Page 15: Torque Specifications
SLC Spring Loaded Cultivator Torque Specifications Notes: This chart is an approximate estimate of torque values. Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for Metric hardware. - Page 16 SLC Spring Loaded Cultivator Page left blank intentionally...
-
Page 17: Parts Breakdown
Spring Loaded Cultivator SLC Series Parts Manual Printed October 2023... - Page 18 SLC Spring Loaded Cultivator Frame Assembly...
- Page 19 SLC Spring Loaded Cultivator Frame Assembly Item Part # Description Qty. SLC70310004 Frame assembly 7 tine SLC70310005 Frame assembly 9 tine SLC70310006 Frame assembly 11 tine SLC70310007 Frame assembly 13 tine SLC70330005 Big pair tine assembly SLC70340003 Small pair tine assembly SLC10270003 Spring washer M12 28-52...
-
Page 20: Warranty
SLC Spring Loaded Cultivator Frame Assembly... - Page 21 SLC Spring Loaded Cultivator Frame Assembly Item Part # Description Qty. SLC70330001 Big pair angle (LHS) SLC70330006 Big pair angle (RHS) SLC70330007 Tine assembly SLC10320004 Shovel SLC10260137 Round head bolt (7/16x2.5” BSW) SLC10280033 Plain nut 7/16 SLC10260418 Hex head bolt M16X95 SLC10280005 Nylock nut M16 SLC10270005...
- Page 22 SLC Spring Loaded Cultivator Frame Assembly...
- Page 23 SLC Spring Loaded Cultivator Frame Assembly Item Part # Description Qty. SLC70340004 Small pair (LHS) SLC70340001 Small pair (RHS) SLC70340005 Support flat SLC70340006 Tine assembly SLC70330004 Tine U SLC10320004 Shovel (Beri type) SLC10260137 Round head bolt (7/16X2.5”LBSW) SLC10280033 Plain nut (7/16 BSW) SLC10260418 Hex head bolt M16X95 SLC10280005...
- Page 24 SLC Spring Loaded Cultivator Warranty LIMITED WARRANTY Belco Resources Equipment warrants to the original purchaser of any new piece of machinery from Belco Resources Equipment, purchased from an authorized Belco Resources Equipment dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year for non-commercial, state, and municipalities’...
- Page 25 SLC Spring Loaded Cultivator Page left blank intentionally...
- Page 26 SLC Spring Loaded Cultivator 401 Jeffreys Road Tel: 252-822-7140 Rocky Mount, NC 27804 Fax: 252-787-5855 www.tarrivermfg.com Sales@tarrivermfg.com...
