Tar River SAYA-907 Operator's Manual

No till drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
No Till Drill
SAYA-907
Operator's Manual
Rel. 08/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAYA-907 and is the answer not in the manual?

Questions and answers

Related Manuals for Tar River SAYA-907

Summary of Contents for Tar River SAYA-907

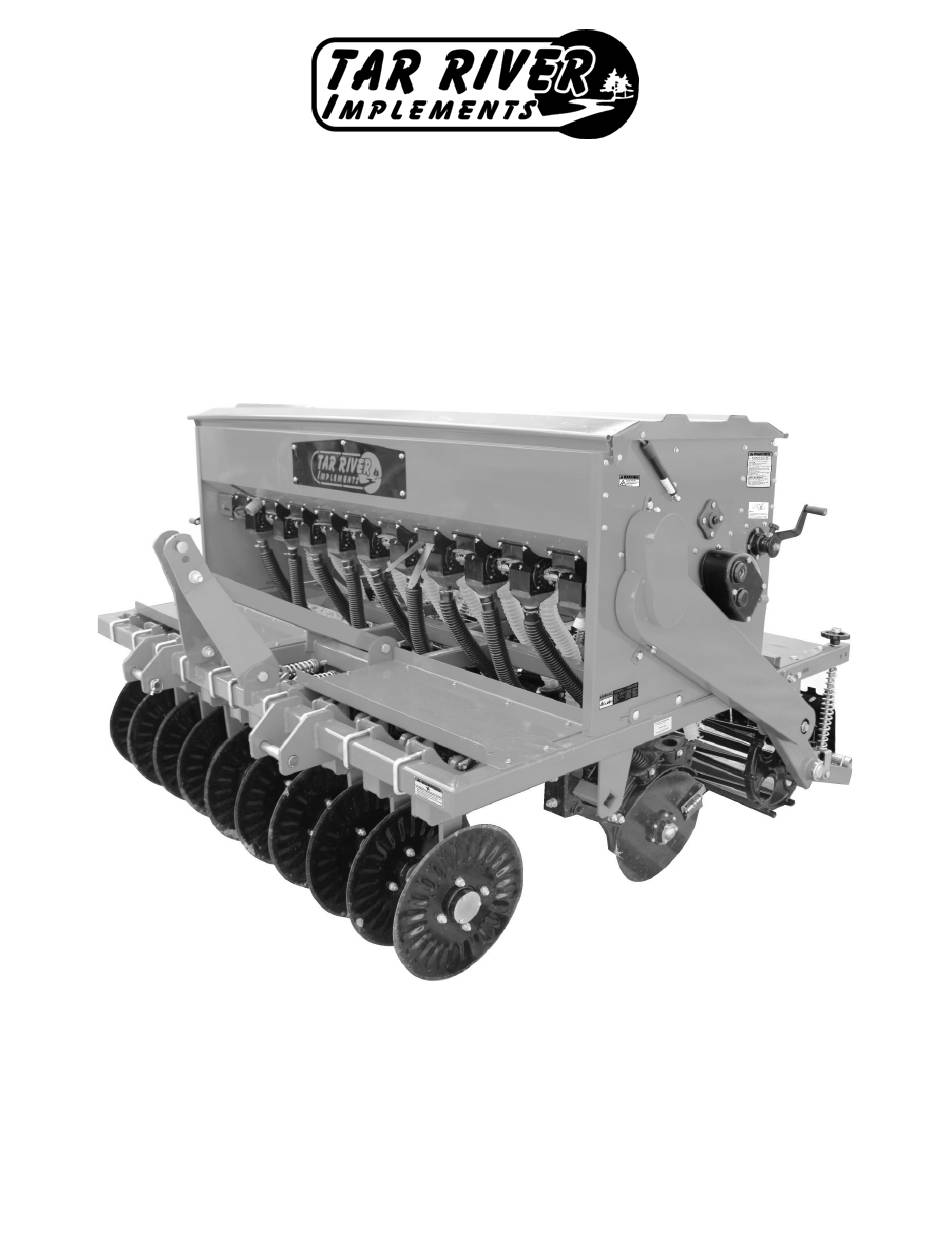

  • Page 1 No Till Drill SAYA-907 Operator’s Manual Rel. 08/24...
  • Page 2 No Till Drill SAYA-907 Page left blank intentionally...
  • Page 3 No Till Drill SAYA-907 TO THE DEALER: Assembly and proper installation of this product is the responsibility of the Tar River dealer. Read manual in- structions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Owner’s/Operator’s Manual are completed before releasing equipment to the owner.

  • Page 4: Table Of Contents

    No Till Drill SAYA-907 Table of Contents Introduction …………………………………………………………………………………………….. 5 Technical Specifications ……………………………………………………………………………….. 5 Safety …………………………………………………………………………………………………… 6 Safety Signal Words ……………………………………………………………………………………. 6 General Safety Guidelines ……………………………………………………………………………… 7 Safety Decal Care ………………………………………………………………………………………. 7 Before Operation ……………………………………………………………………………………….. 8 During Operation ……………………………………………………………………………………….. 9 Highway And Transport Operations ……………………………………………………………………...

  • Page 5: Introduction

    No Till Drill SAYA-907 Introduction Thank you for purchasing your SAYA-907 No-Till Drill. The SAYA-907 has a 78” working width and comes with a 3 compartment seedbox which contain 3 different seedcups for seeding of any type of seed. The front section comes with a dual section seedcup that splits between large seeds (corn and soybean sizes) to grass seeds such as wheat and rye.

  • Page 6: Safety

    No Till Drill SAYA-907 Important Safety Information Safety It is important that you read the entire manual and to become familiar with this product before you begin using it. This product is designed for certain applications only. The manufacturer cannot be responsible for issues arising from modification.

  • Page 7: General Safety Guidelines

    No Till Drill SAYA-907 Important Safety Information General Safety Guidelines Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. De- signers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.

  • Page 8: Before Operation

    No Till Drill SAYA-907 Important Safety Information How to install Safety Signs: Be sure that the installation area is clean and dry. • Decide on the exact position before you remove the backing paper. • Remove the smallest portion of the split backing paper.

  • Page 9: During Operation

    No Till Drill SAYA-907 Important Safety Information During Operation Children should not be allowed on the product. • Clear the area of small children and bystanders before moving the machine. • If using a towing unit, securely attach machine by using a hardened 3/4” pin, a metal retainer, and safety •...

  • Page 10: Highway And Transport Operations

    No Till Drill SAYA-907 Important Safety Information Highway and Transport Operations Adopt safe driving practices. • Keep the brake pedals latched together at all times. Never use independent braking with machine in tow • as loss of control and/or upset of machine can result.
  • Page 11 No Till Drill SAYA-907 Important Safety Information Highway and Transport Operations Maneuver the tractor or towing vehicle at safe speeds. • Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury or death. • Avoid loose fill, rocks and holes, they can be dangerous for equipment operation or movement.

  • Page 12: Assembly

    No Till Drill SAYA-907 Assembly Assembly Step 1: Carefully uncrate and remove all parts. Ensure the double disc openers and coulters are inline and set at their proper 7 1/2” spacing. Step 2: Mount hopper box with the lid opening facing the front of the machine.
  • Page 13 No Till Drill SAYA-907 Assembly Assembly Step 5: Install seed cup funnels and hoses to seed cups. Slide the wire clamp onto the Fertiliz- er/seed tube close to the first rib as shown, Fig. A. Slide the Fertilizer/seed tube past the Ribs 1/4”-1/2”...
  • Page 14 No Till Drill SAYA-907 Assembly Assembly Step 6: Install A frame on inside of mounts. Step 7: The Seed Rate Handle is turned in for “Transport” purposes. Before operating the machine, remove the nut from the handle, flip the handle to face away from the seeder, thread nut on handle and tighten before making adjustments to the seeder.

  • Page 15: Operating Instructions

    No Till Drill SAYA-907 Assembly Operating Instructions Before beginning work: Be sure all the seed cups completely close and open the same, so all cups are putting out the exact amount • of seed. If they are not in sync, one cup will put out more than others.
  • Page 16 No Till Drill SAYA-907 Assembly Operating Instructions Seeding/Fertilizing rate adjustment handle: Locking knob To adjust the seed/fertilizer rate, loosen the Locking Knob before attempting to adjust the feed rate. Note that the Locking Knob sits in a groove on the Adjustment Handle.
  • Page 17 No Till Drill SAYA-907 Assembly Operating Instructions Seed cup shutoff: Depending on the crop being planted, it may be necessary to not disburse from all of the seed cups. This is eas- ily done by simply sliding the “Seed shut off flap” in and out.
  • Page 18 No Till Drill SAYA-907 Assembly Operating Instructions Seed depth - Disc Support Bar The top link on the tractor hitch should be properly adjusted to carry the machine level in an operating posi- tion. During operation, the tractor lift must be fully lowered to allow the machine to follow the contour of the ground.

  • Page 19: Adjusting Disc Alignment

    No Till Drill SAYA-907 Assembly Adjusting Disc Alignment Disc Alignment: The Disc Support Bracket must be in the correct orientation prior to operating the machine. The corners of the Disc Support Bar must be in the 12 O’clock, 3 O’clock, 6 O’clock & 9 O’clock positions. The Disc Support Bracket will be parallel to the ground, Fig.

  • Page 20: Lubrication And Maintenance

    No Till Drill SAYA-907 Lubrication and Maintenance Important: It is important to thoroughly clean the seeder after use. Failure to do so can cause irreparable dam- age to the seed cups and drive system. Grease and turn the Seed adjustment handle to ensure grease lubricates the threads.

  • Page 21: Setting Application Rates

    No Till Drill SAYA-907 Setting Application Rates The most accurate way to set application rates is to drive a predetermined distance and physically catch the seeds dispensed. To do this, remove at least one drop hose and tie a plastic bag onto bottom of seed cup.

  • Page 22: Rate Charts

    No Till Drill SAYA-907 Rate Charts...
  • Page 23 No Till Drill SAYA-907 Page left blank intentionally...

  • Page 24: Torque Specifications

    No Till Drill SAYA-907 Torque Specifications Notes: This chart is an approximate estimate of torque values. Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual.

  • Page 25: Parts Breakdown

    No Till Drill SAYA-907 Parts Manual Rel. 08/24...
  • Page 26 No Till Drill SAYA-907 Hopper Assembly...
  • Page 27 Handle flange SA2005K Locking knob BM061012 Bolt HH M06-1.0x12 LNM0610 Lock nut M06x10 SA4078 Chain cover, upper RH SA4079 Chain cover SAYA-907, lower RH SA4080 Chain cover SAYA-907, LH SA4081 Gearbox SAYA-907 SA4082 Chain, rear hopper SA4083 Chain, middle hopper SA4084...
  • Page 28 No Till Drill SAYA-907 Hopper Assembly...
  • Page 29 No Till Drill SAYA-907 Hopper Assembly Item Part # Description Qty. SA9005 Tube wire clamps SA3002 Fertilizer/seed tube - front seed cup SA4086 Wire clamp - middle seed cup SA4087 Seed tube - middle seed cup SA4088 Wire clamp - rear seed cup...
  • Page 30 No Till Drill SAYA-907 Frame Assembly Frame Assembly...
  • Page 31 Flap 8.25” DL11009 Spring, flap FW08 Flat washer M08 BM0812550 Bolt HH M08-1.25x50 SA9006-78 Scraper board rod; SAYA-507, SAYA-907 DL8009 Adjustment rod shoulder pin M16x70 CP3x25 Cotter pin M3x25 BM2025110 Bolt top hitch M20-2.5x110 SA4061 Pressure adjustment rod 412mm (for roller)
  • Page 32 No Till Drill SAYA-907 Frame Assembly Frame Assembly NOTE: See page 37...
  • Page 33 No Till Drill SAYA-907 Frame Assembly Item Part # Description Qty. SA4009 A-frame vertical; SAYA SA4059 Step pin Cat1/Cat2 BM182550 Bolt bottom M18-2.5x50 NM1825 Nut M18-2.5 SA4006 A-frame spacer BM1825110 Bolt bottom M18-2.5x110 SA4003B A-frame horizontal LYNPN10 Lynch pin - M10...
  • Page 34 No Till Drill SAYA-907 Frame Assembly Frame Assembly NOTE: See page 37...
  • Page 35 NM1015 Nut HH M10-1.5 (attach hopper to frame) SA4055 Scraper board complete - SAYA-507, SAYA-907 (Includes-flaps, springs, rod, hardware) Note: Warning! When removing/replacing Disc Assembly Studs note that the LH & RH studs have different thread patterns! Using the wrong stud will cause damage to the stud and or the seed drill casting! SA4027 Stud, disc assembly LH has LH threads on both ends of the stud.
  • Page 36 No Till Drill SAYA-907 Roller Assembly...
  • Page 37 No Till Drill SAYA-907 Roller Assembly Item Part # Description Qty. SA9001-78 Drive roller complete; SAYA-507, SAYA-907 SA4068 Drive roller; SAYA-507, SAYA-907 (ROLLER ONLY - spindle, hardware not included) DL8008L Roller arm, LH DL8008R Roller arm, RH SA4051 Bearing special, 6006 2RS (Note: This is not a standard 6006 2RS bearing!) 8...
  • Page 38 No Till Drill SAYA-907 Floorboard Assembly...
  • Page 39 Floorboard Assembly Item Part # Description Qty. SA4042 Step board, rear - SAYA507, SAYA-907 SA4040 Step board, LH front - SAYA507, SAYA-907 SA4041 Step board, RH front - SAYA507, SAYA-907 BM101580 Bolt HH M10-1.5x80 FW10 Flat washer M10 NM1015 Nut HH M10-1.5 BMST481900 Self-drilling screw M4.8x19...
  • Page 40 No Till Drill SAYA-907 Decals...
  • Page 41 Decal Warning, “Falling off tractor” RT-1005 Decal Warning, “To prevent serious injury or death” D1004 Decal Warning, “Chemicals” D1340 Metal Laser Cut “Tar River Implements” RT1004E Decal Warning, “Do not open” RT1004D Decal Warning, “To prevent serious injury or death” RT-1016 Decal Logo, “Tar River Implements”...
  • Page 42 No Till Drill SAYA-907 Decals 8 - D1013 Qty. 1 7 - RT-1016 - Qty. 6 - RT1004D - Qty. 2 9 - D-1309 Qty. 1 11 - Qty. 1 13 - Qty. 2 10 - D1305 - Qty. 1 12 - Qty.
  • Page 43 No Till Drill SAYA-907 Page left blank intentionally...

  • Page 44: Warranty

    No Till Drill SAYA-907 Warranty LIMITED WARRANTY Belco Resources Equipment warrants to the original purchaser of any new piece of machinery from Belco Re- sources Equipment, purchased from an authorized Belco Resources Equipment dealer, that the equipment be free from defects in material and workmanship for a period of one (1) year for non-commercial, state, and mu- nicipalities’...
  • Page 45 No Till Drill SAYA-907 Page left blank intentionally...
  • Page 46 No Till Drill SAYA-907 401 Jeffreys Road Tel: 252-822-7140 Rocky Mount, NC 27804 Fax: 252-787-5855 www.tarrivermfg.com Sales@tarrivermfg.com...
