The Wings Maker Slick 540 Instruction Manual

The Wings Maker Slick 540 Instruction Manual

50cc
Hide thumbs Also See for Slick 540:

Advertisement

Quick Links

Before commencing assembly, please read these instructions thoroughly.

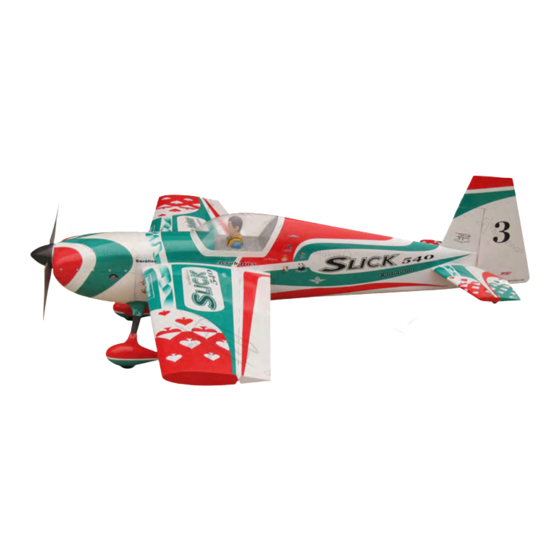

Wing Span: 86 in / 2185 mm
Wing Area: 1408 sq in / 91 sq dm
Flying Weight: 18 lb / 8.2 kg
Fuselage Length: 82 in / 2085 mm
Requires: 50 c.c. gas engine ,4-channel
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine(electric) powered precision model. Operating this model without prior preparation may
cause injuries. Remember, safety is the most important thing. Always keep this instruction
manual at hand for quick reference.
* Specifications are subject to change without notice.*
THE WINGS MAKER
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
www.thewingsmaker.com
GA047SPO24121011
All manuals and user guides at all-guides.com
Specifications
radio w/ 6-7 high torque servos
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Slick 540 and is the answer not in the manual?

Questions and answers

Summary of Contents for The Wings Maker Slick 540

  • Page 1 Operating this model without prior preparation may cause injuries. Remember, safety is the most important thing. Always keep this instruction manual at hand for quick reference. * Specifications are subject to change without notice.* THE WINGS MAKER FACTORY PRE-FABRICATED ALMOST-READY-TO-FLY (ARF) SERIES MADE IN CHINA www.thewingsmaker.com...
  • Page 2 All manuals and user guides at all-guides.com INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.13 SAFETY PRECAUTIONS P.13 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.
  • Page 3 All manuals and user guides at all-guides.com Parts List M8 NYLON INSERT LOCK NUT-- 2 pcs WHEEL PANTS FARING -- 1 pair ALUMINUM PLATE 1mm -- 2 pcs 1.MAIN WING -- 1 pair 9. ENGINE BOX 317x140x115mm -- 1 set 2.SOCKET HEAD SCREW M4×65mm -- 2 pcs PLYWOOD(F54) 223x10x10mm -- 1 pc.
  • Page 4 All manuals and user guides at all-guides.com Main Wing Aileron Servo Lead Pre-glued Bottom View Aileron Servos 1.5mm M2x8mm M2 Nylon Insert Socket Head Screw M4x65mm Socket Head Screw PL4120300 Lock Nut Heavy Duty PWA2x8mm Screw Clevis PWA 2 x 8mm Nylon Insert Lock Nut M2 x 10mm Pushrod...
  • Page 5 All manuals and user guides at all-guides.com Elevator Servos M4x60mm Socket Head Screw Nylon Insert Lock Nut Pre-glued Bottom view M2x8mm Socket Head Screw PL4120300 M2 Nylon Insert Lock Nut M2 x 10mm Heavy Duty Clevis M2 Nut Pushrod 1.5mm M3x72mm Heavy Duty Horn Bracket M2 Nylon Insert...
  • Page 6 All manuals and user guides at all-guides.com Vertical Fin & Rudder B=B' Pre-glued Completed Tail Landing Gear Screw x 18mm Screw PWA2.5 x 12mm x 18mm PWA2.5 x 12mm Spring Ø5x40mm 1.5mm 1 mm Bottom View Completed Bottom View GA047SPO24121011...
  • Page 7 All manuals and user guides at all-guides.com Rudder M2 Nylon Insert Copper Tube M2x8mm Lock Nut wire PL4120800 Ø 1x1050mm M4x100mm Threaded Rod Press down the center 1/3 portion M2 Nut Eye Screw M4 Nylon Insert Lock Nut M2.5x8x25mm Heavy Duty Clevis M2x10mm Heavy Duty Horn...
  • Page 8 All manuals and user guides at all-guides.com Engine Box Use epoxy to glue all parts together. Engine Box Please note right & down thrust angle of firewall. 0 ° F54A F54C F54B 3° F54A F54B Fuel Tank CABLE TIE (For Fuel Tank) 1.5x8x500mm CABLE TIE (For Fuel Tank)
  • Page 9 All manuals and user guides at all-guides.com Engine Center line of firewall M6x50mm Socket Head Screw d6xD15mm Washer Blind Nut 8.4mm Firewall Drilling Template 3x112x110mm(For DA 50 Engine) Engine thrust line For DA 50 Engine Front View Install Engine position 160mm 3x142x142mm F54C...
  • Page 10 All manuals and user guides at all-guides.com Radio Equipment Install and arrange the servo as shown in the diagram. Charge Receptacles Plastic Tube Throttle Pushrod Receiver Throttle Servo KP0041300 d2.5xD4x350mm Ø1.8x470mm Sponge 10x80x200mm Rudder Servo Battery Temporarily mount cowl to fuselage using the HM3x20mm bolts with Cowling &...
  • Page 11 All manuals and user guides at all-guides.com Main Wing Screw PWA2 x 12mm Wing Tube Ø25.4 x 890 mm Lead to Aileron Servo PWA2x12mm Self Tightening Wire Ø0.8mm Wing Latch Set Screw M3X6mm Wing Tube Self Tightening Wing Tube Wing Latch PWA2x12mm Wing Tube Self Tightening...
  • Page 12 All manuals and user guides at all-guides.com Cockpit & Pilot M3x20 mm Socket Head Screw Washer d3xD7 mm Front Cockpit Front Pilot PC101110F M3x20mm d3xD7 mm Washer Pilot PC101110F Front Apply thick CA or Canopy glue. Canopy Completed GA047SPO24121011 P.11...
  • Page 13 All manuals and user guides at all-guides.com Bottom View Pipes Cover PWA2.6x12 mm Screw PWA2.6x12 mm PWA2.6x12 mm Decals GA047SPO24121011 P.12...
  • Page 14 All manuals and user guides at all-guides.com Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your Rudder personal preference. 60 mm 60 mm Elevator 30 mm 30 mm Aileron 25 mm...
  • Page 15 All manuals and user guides at all-guides.com LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
  • Page 16 All manuals and user guides at all-guides.com Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 4749-K,Bennett Drive, Livermore, CA 94551 USA.
  • Page 17 All manuals and user guides at all-guides.com Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
  • Page 18 All manuals and user guides at all-guides.com Optional Parts ACCESSORIES) 180mm Extension Clevis Wrench Code No. Size Package Code No. Size Package PL8210010 1 set KW0011800 180mm 1 set Small Clevis Large Clevis Special tool for clevis installation. Suitable for standard and small (EP) clevis.
  • Page 19 All manuals and user guides at all-guides.com GA047SPO24121011...
  • Page 20 All manuals and user guides at all-guides.com www. thewingsmaker.com THE WINGS MAKER GA047SPO24121011...
