6

Operation

6.1 Switching the device on
and off
6.2

The Start screen

6.3

Direct Access Controls (DAC)

IMT Analytics AG
Check that all the cables and tubes are connected properly and
check compliance with the specifications

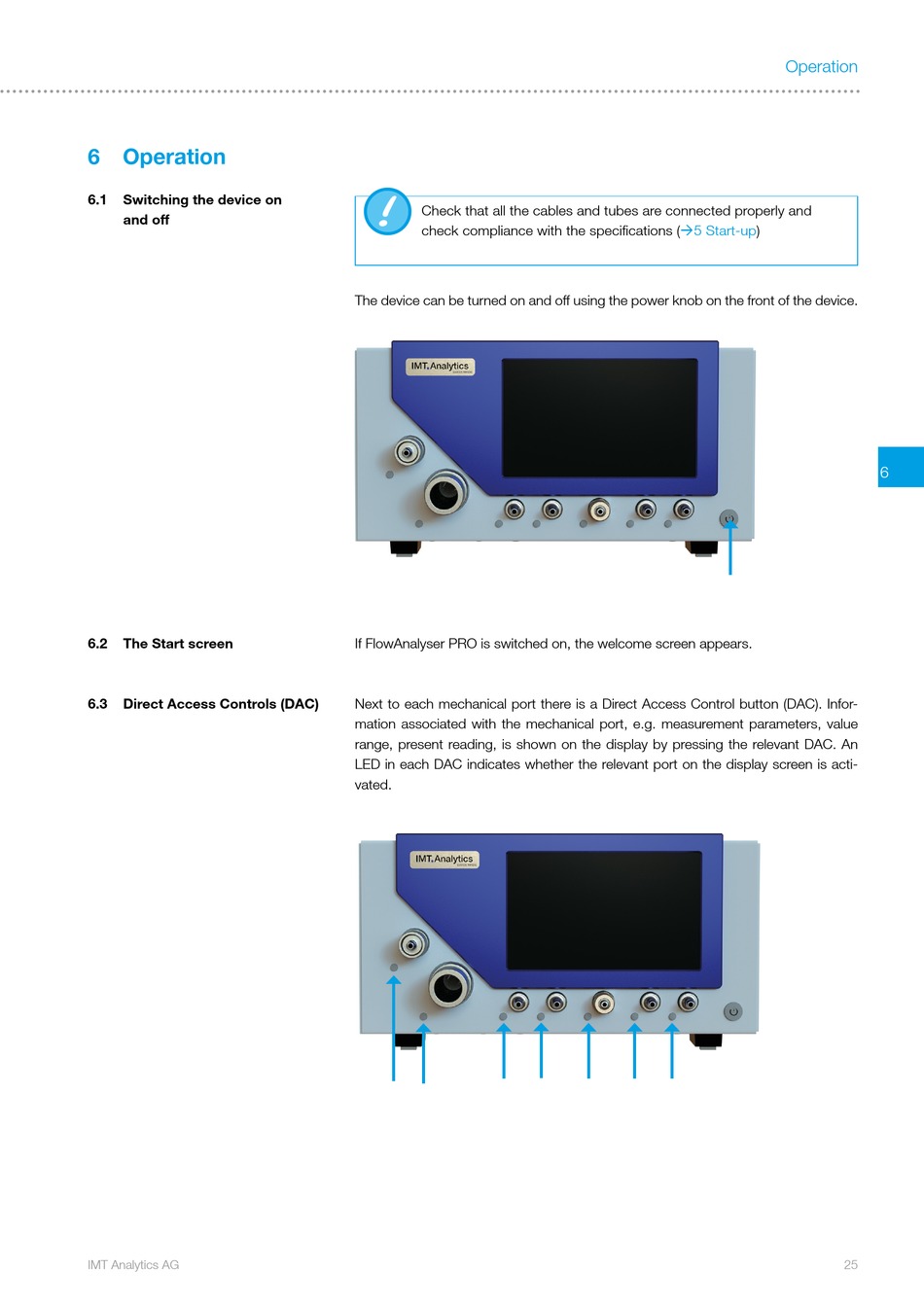

The device can be turned on and off using the power knob on the front of the device.
If FlowAnalyser PRO is switched on, the welcome screen appears.
Next to each mechanical port there is a Direct Access Control button (DAC). Infor-
mation associated with the mechanical port, e.g. measurement parameters, value
range, present reading, is shown on the display by pressing the relevant DAC. An
LED in each DAC indicates whether the relevant port on the display screen is acti-
vated.
Operation
(5 Start-up)
