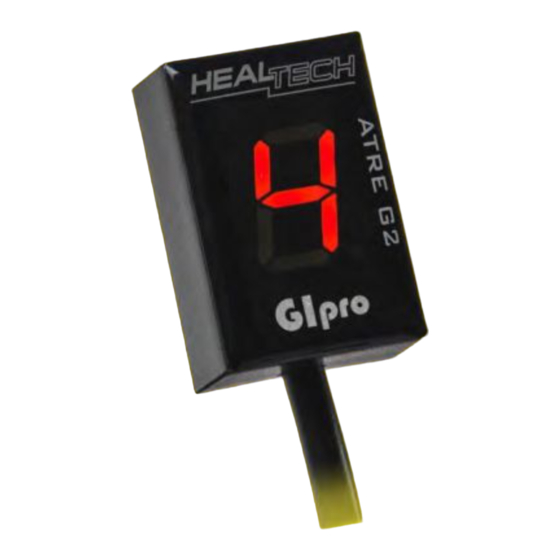

GIPRO ATRE GEAR INDICATOR
Supplementary Manual
Kawasaki ZX-14 ABS TC 2012- (GPAT-K01)

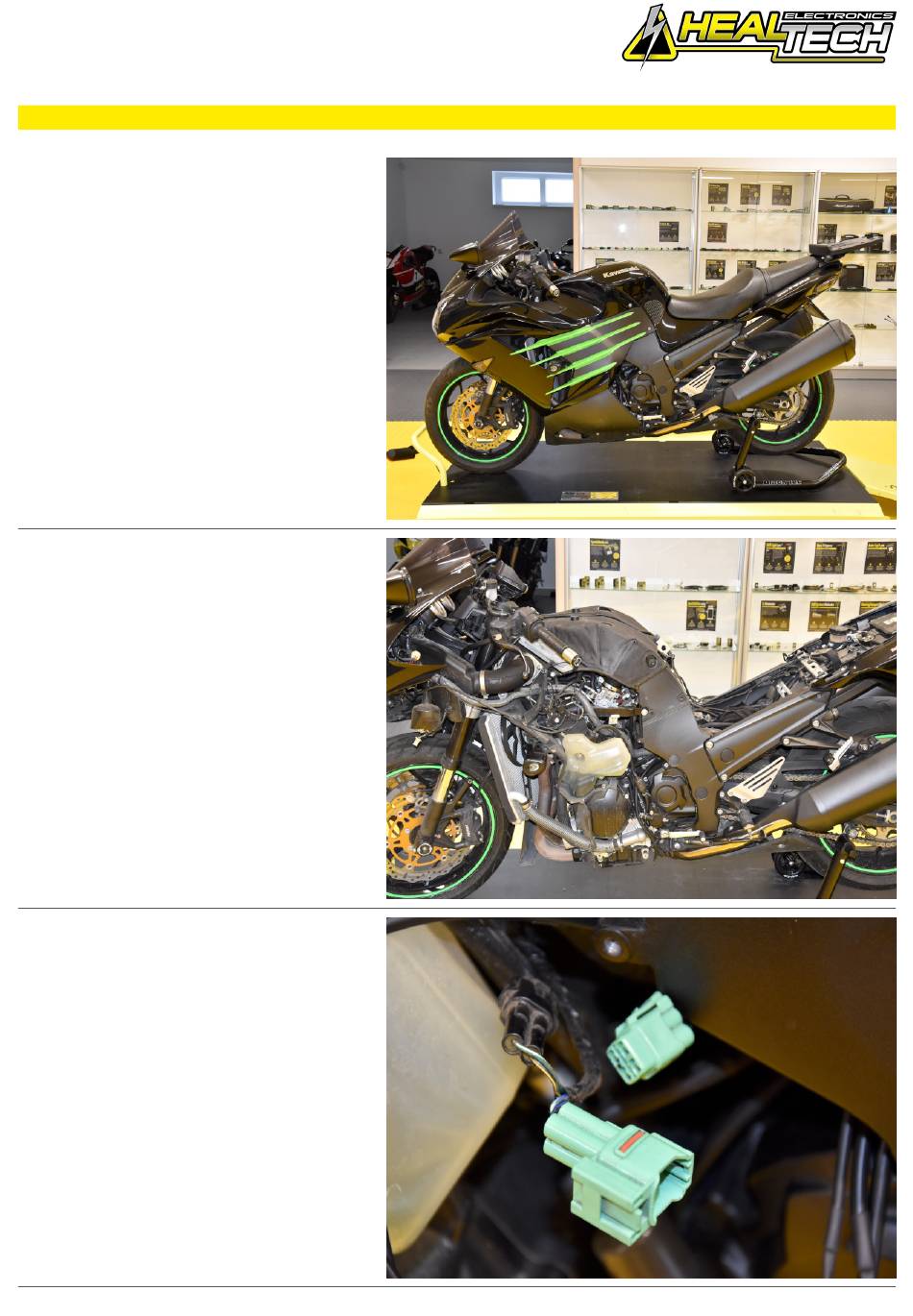

Secure the bike on a stand.
Remove the seat.
Remove the side fairings.
Remove the plastic cover from the fuel
tank.
Remove the fuel tank.
Locate the green, 4-pole gear position
sensor connector under the airbox and
disconnect it.
w w w . h e a l t e c h - e l e c t r o n i c s . c o m
1/3
