3. Initial Power Up

NOTE 1: It is recommended that the Engineer menu is accessed prior to opening a powered HomeControl+ Panel, as
being in the Engineer menu will prevent the tamper alarm from triggering.
NOTE 2: If any new peripheral is installed (such as: Modem, I/O board or Expander) it is recommended that the
HomeControl+ Panel is powered down (mains and battery).

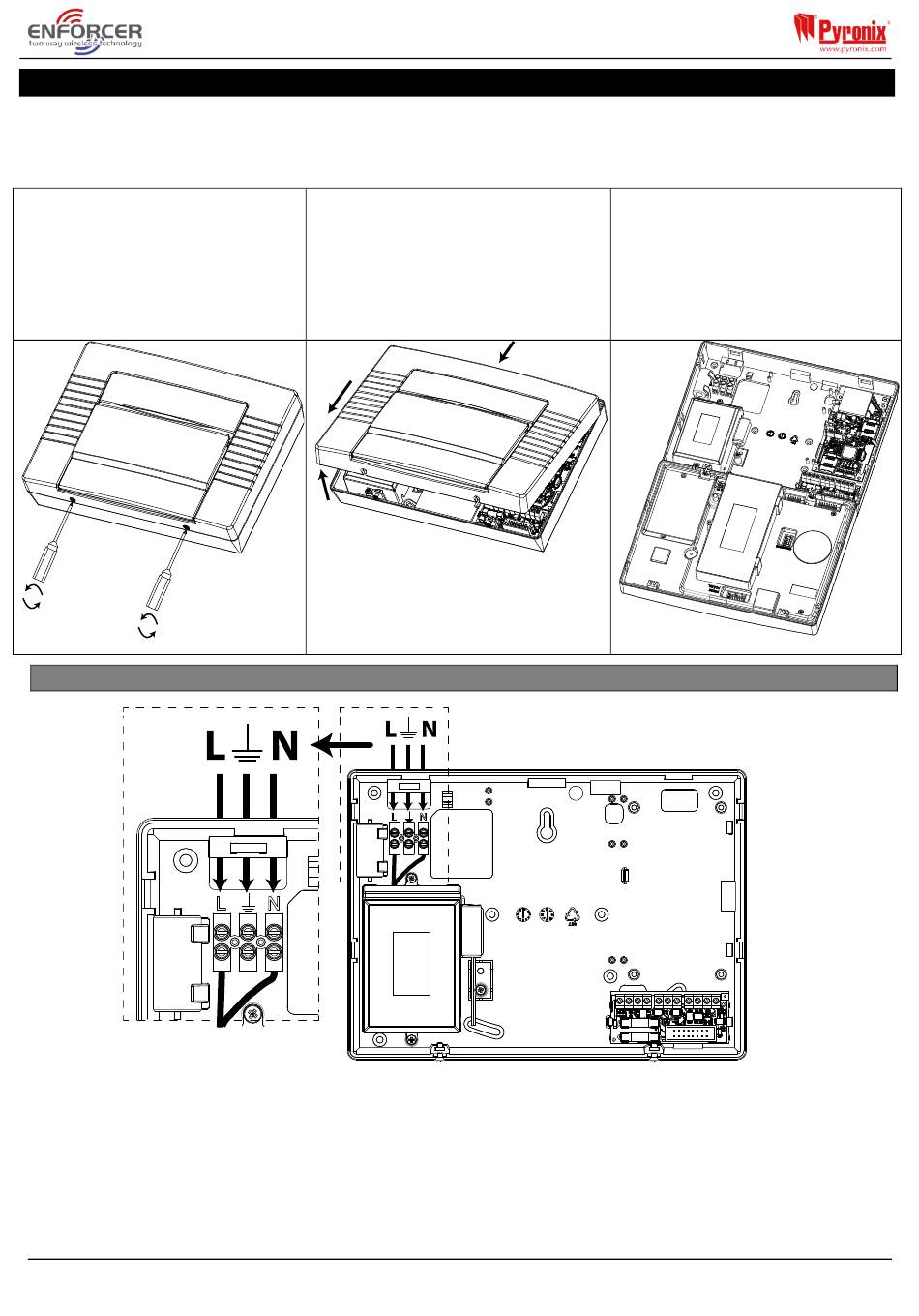

1. Slightly unscrew the two screws
located at the bottom.
NOTE: Do not fully unscrew as these
can be used as a 'hanger' to the rear
casing as shown in Step 3.

3.1 Mains and Earth Wiring

It is important that the electrical earth wire is connected before connecting the 230V mains supply to the
HomeControl+ Panel.
NOTE 1: Do not locate the mains cables next to internal cabling.
NOTE 2: Ensure that the HomeControl+ Panel is not mounted on any metal surfaces.
NOTE 3: Mains cables should not be internally 'looped' or tightly bundled as this may interfere with the wireless
antennas. Where possible it is recommended that all mains cables should be installed through the area nearest the
mains terminals as shown above.
2. Unhinge the HomeControl+ Panel
from the top and pull down to
disconnect the front of the case.
NOTE: Take extra care when removing
the front of the HomeControl+ Panel as
modems, I/O boards etc may be
connected to the front.
Page: 3
3. Rotate the front of the
HomeControl+ Panel 180 degrees and
hang it on the opening screws if
required.
