Warning：
Before upgrade, please check FW version of unit and update the FW accordingly.
Original FW version
VHH_VHG_VHS_VHI_VHK
VAF_VAE_VHS_VAD_VAX
VHH_VHG_VHS_VHI_VHK
hardware limitation.
FW Check
OSD Menu: [Status] > [FW version] on the last page.
[USB PTZ Camera Controller] software: [Advance]> [FW version]
Version Difference:
FW Type
USB
Master
Motor
CM
DSP
FW012 - VC-B30U FW Update Manual

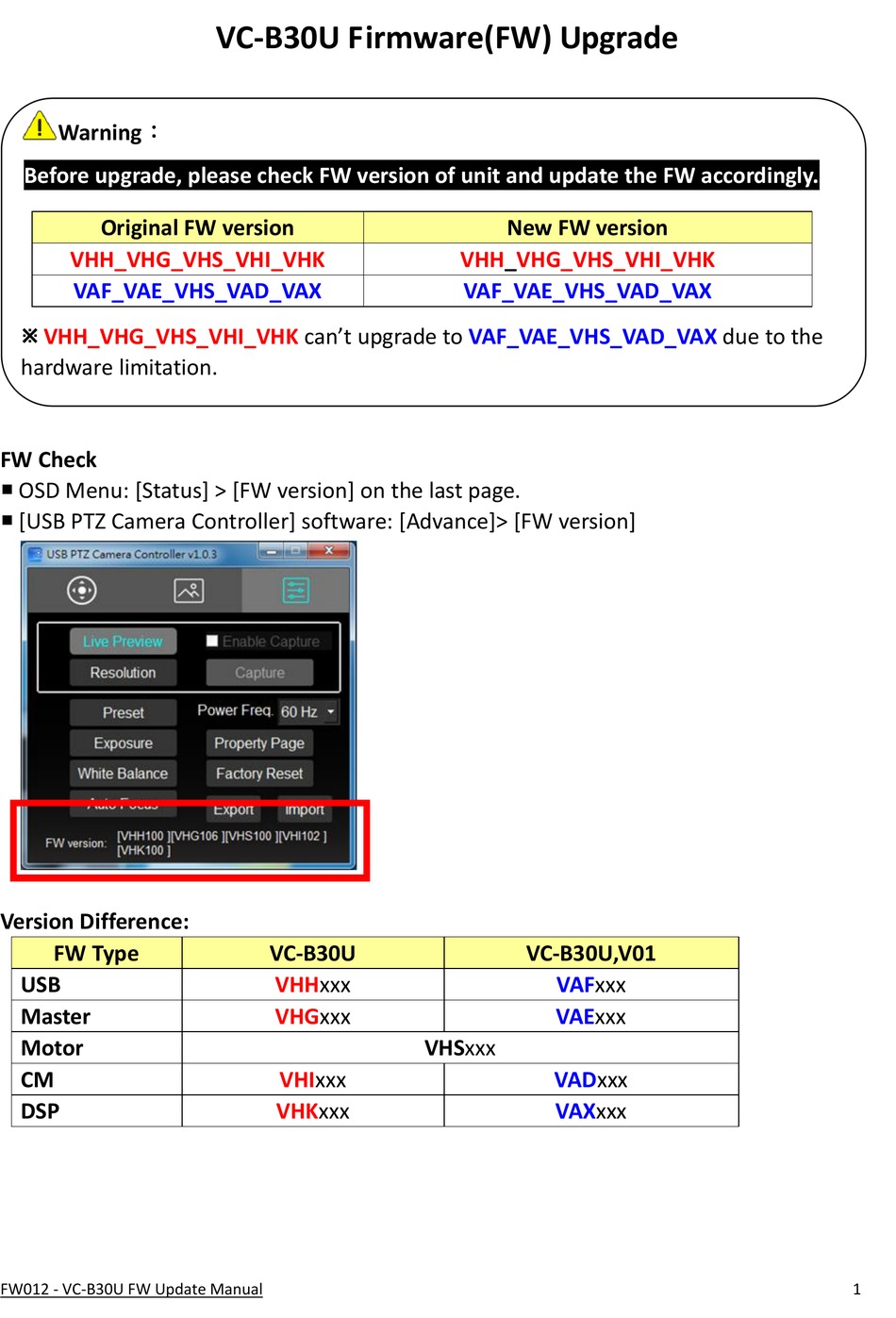

VC-B30U Firmware(FW) Upgrade
can't upgrade to
VC-B30U
VHHxxx
VHGxxx
VHIxxx
VHKxxx
New FW version
VHH_VHG_VHS_VHI_VHK
VAF_VAE_VHS_VAD_VAX
VAF_VAE_VHS_VAD_VAX
VC-B30U,V01
VAFxxx
VAExxx
VHSxxx
VADxxx
VAXxxx
due to the
1
Advertisement
Related Manuals for Lumens VC-B30U
Summary of Contents for Lumens VC-B30U
- Page 1 OSD Menu: [Status] > [FW version] on the last page. [USB PTZ Camera Controller] software: [Advance]> [FW version] Version Difference: FW Type VC-B30U VC-B30U,V01 VHHxxx VAFxxx Master VHGxxx VAExxx Motor VHSxxx VHIxxx VADxxx VHKxxx VAXxxx FW012 - VC-B30U FW Update Manual...
- Page 2 FW012 - VC-B30U FW Update Manual...
- Page 3 VC Model PC with a RS232 port or Laptop RS232-USB cable Mini Din-RS232 cable (if connect with a laptop) (9Pin D-Sub Female to 8P in Mini Din Male) Monitor Power adapter and power cord FW012 - VC-B30U FW Update Manual...
- Page 4 The VC FW cannot be upgraded through MAC OS. 2.1 Connect the VC camera (RS232 Port) with a PC RS232 cable 2.2 Connect the VC camera (RS232 Port) with a laptop Need 2 cables: RS232 cable and RS232-USB cable FW012 - VC-B30U FW Update Manual...
- Page 5 RS232-USB cable RS232 cable FW012 - VC-B30U FW Update Manual...
- Page 6 3 FW Update 3.1 Please download [Firmware Download Tool] from Lumens website. 3.2 Launch the [VC-B30U_Download_AP]. FW012 - VC-B30U FW Update Manual...
- Page 7 FW012 - VC-B30U FW Update Manual...
- Page 8 Go to 3. Current FW version check to check the FW in the unit and upgrade with the same FW identified code. VC-B30U VC-B30U,V01 VHHxxx VAFxxx Master VHGxxx VAExxx Motor VHSxxx VHIxxx VADxxx VHKxxx VAXxxx FW012 - VC-B30U FW Update Manual...
- Page 9 FW012 - VC-B30U FW Update Manual...
- Page 10 3.4 Select proper [ComPort], and then press [Process] to start. 3.5 FW start updating. (Around 5min taken for the five FW update.) FW012 - VC-B30U FW Update Manual...
- Page 11 3.6 After FW update, please unplug and reconnect the power cord to restart the unit. FW012 - VC-B30U FW Update Manual...
- Page 12 3.7 Apply the factory reset to the camera 3.7.1 From the menu: [System]-->[Factory Reset] 3.7.2 From the software [USB PTZ Camera Controller]: [Advance] -->[Factory Reset] FW012 - VC-B30U FW Update Manual...
