SD750
ACCESSORIES MANUAL
ANALOG I/O EXPANSION BOARD
LOW VOLTAGE VARIABLE SPEED DRIVE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Power Electronics SD750

Summary of Contents for Power Electronics SD750

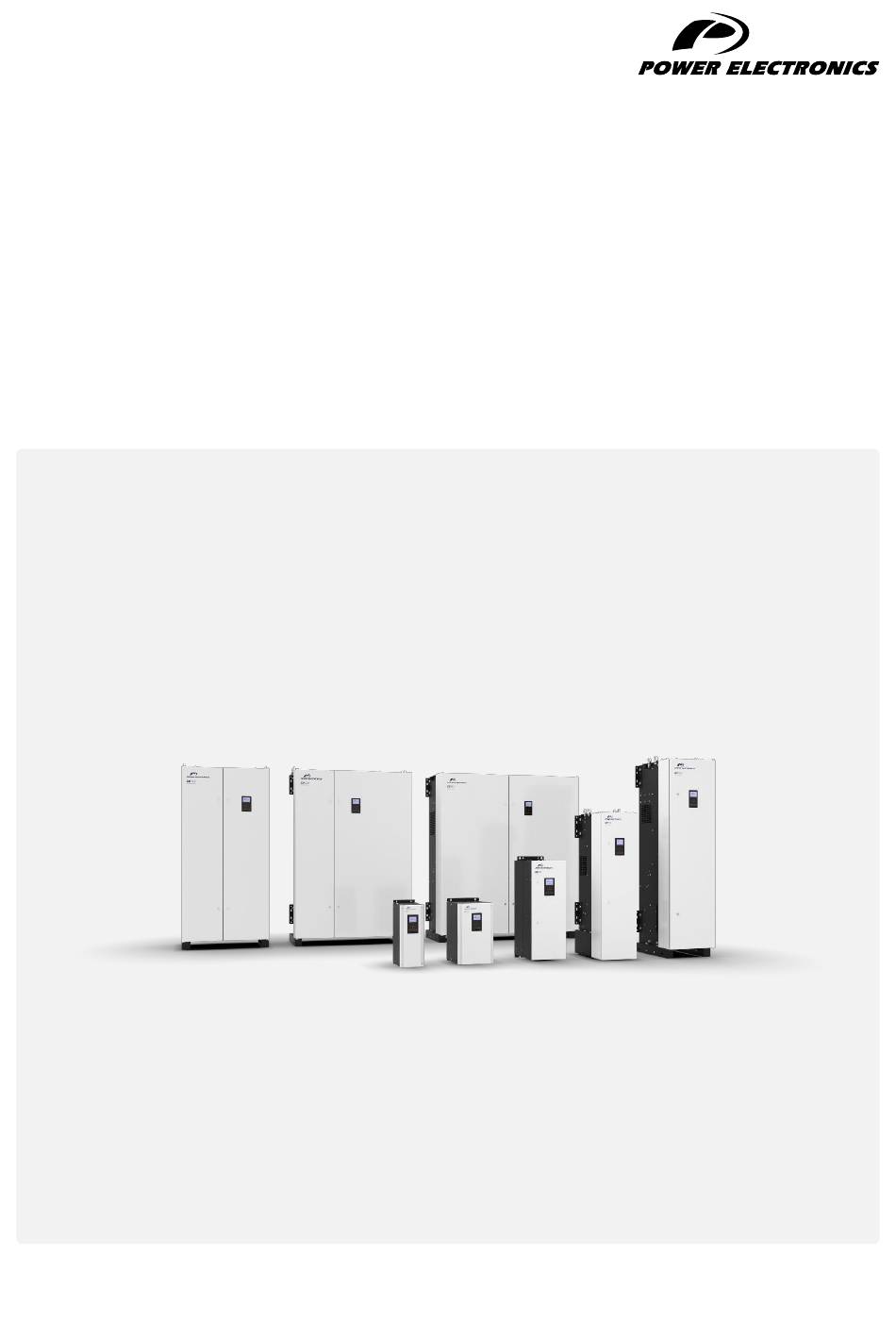

  • Page 1 SD750 ACCESSORIES MANUAL ANALOG I/O EXPANSION BOARD LOW VOLTAGE VARIABLE SPEED DRIVE...
  • Page 3 Accessories Manual Analog I/O expansion board Edition: February 2020 SD75MA05AI Rev. A...

  • Page 4: About This Manual

    (I/O) expansion board for Power Electronics’ SD750 variable speed drives. TARGET AUDIENCE This manual is intended for qualified customers who will install, operate and maintain Power Electronics SD750 variable speed drives. Only trained electricians may install and commission the drives.
  • Page 5 First Edition. The equipment and technical documentation are periodically updated. Power Electronics reserves the right to modify all or part of the contents of this manual without previous notice. To consult the most updated information of this product, you may access our website www.power-electronics.com, where the latest version of this manual can be downloaded.

  • Page 6: Table Of Contents

    SD750 POWER ELECTRONICS TABLE OF CONTENTS ABOUT THIS MANUAL ..........................2 SAFETY SYMBOLS ............................. 5 SAFETY INSTRUCTIONS ..........................6 INTRODUCTION ............................. 7 Analog I/O expansion board specifications ................... 8 LED indicators ............................8 CONNECTION TO THE DRIVE ......................9 Connectors description ........................10 Connections Schema .........................

  • Page 7: Safety Symbols

    POWER ELECTRONICS SD750 SAFETY SYMBOLS Always follow safety instructions to prevent accidents and potential hazards from occurring. In this manual, safety messages are classified as follows: Identifies potentially hazardous situations where dangerous voltage may be present, which if not avoided, could result in minor personal injury, serious injury or death.

  • Page 8: Safety Instructions

    For maintenance operations, follow the instructions from the Maintenance Manual. Power Electronics accepts no responsibility for any damages resulting from incorrect use of equipment. CAUTION Read carefully the Hardware and Installation Manual, the Maintenance Manual and all documentation related to the drive to guarantee its safe use and avoid the risk of personal injuries and damages to the equipment.

  • Page 9: Introduction

    This manual focuses on the optional analogue input/output (I/O) expansion board. This board allows to increase the number of analog inputs and outputs compared to those of the SD750. This board allows the drive to increase its inputs and outputs as follows: •...

  • Page 10: Analog I/O Expansion Board Specifications

    When we state that the system operates correctly, it means that the communication between the expansion board, the network controller and the central SD750 microcontroller is correct. This does not mean, however, that the communication with the PLC is correct.

  • Page 11: Connection To The Drive

    The analog expansion board can be connected directly, through the connector on its back side, to any of the three expansion connectors of the SD750 drive central control board. Once connected, it allows the drive to be equipped with more analog input and output options and to display new parameter groups. Up to two cards of this type can be connected to each drive.

  • Page 12: Connectors Description

    It has four analog input connectors, two for each analog input (AI1, AI1+, AI2, AI2+). There are four output connectors, two for each analog output (A01, A01+, A02, A02+). On the back side, there is a sixteen-pin ID connector to connect to the SD750 central board. CONNECTION TO THE DRIVE...

  • Page 13: Connections Schema

    POWER ELECTRONICS SD750 Connections Schema The following figure shows a detailed distribution of the components of the optional input/output card. In the current printing the analog inputs 4 and 5 appear as AI1, AI2 and the analog outputs 3 and 4 appear as A01, AO2 as shown in the figure above.

  • Page 14: Commissioning

    Check that the communication with the SD750 is correct (by displaying group G23.2). See that the analog expansion board (A/B) status is activated (G23.2.5). Reference is made to a card A if only one card is connected and B if there is a second card.

  • Page 15: Parameters Setting

    Subgroup G23.2: Input / Output Sub-group G23.2 of the SD750 drive enables the status of the input and output boards to be configured Check that the corresponding board is activated at start-up and is not in test mode. As it is possible to...
  • Page 16 SD750 POWER ELECTRONICS Subgroup 4.5: Analogue input 4 Note: This group will only be shown if an expansion board has been connected. Set on Screen Range Function Allows user to configure analogue input 4 and activates the parameters which are necessary to set it up.
  • Page 17 POWER ELECTRONICS SD750 Set on Screen Range Function Adjusts stop mode of the drive in case the signal from analogue input 4 is lost. OPTION FUNCTION G4.5.14 AI4 loss Function is disabled. protection = No Whenever a sudden drop on the analogue input level is detected, terminating in zero, it indicates the sensor is damaged and the drive will stop, triggering a fault F42.
  • Page 18 SD750 POWER ELECTRONICS Set on Screen Range Function Allows adjusting the speed reference for the minimum range of analogue input 5, which G4.6.8 AI5 Ref speed corresponds with the minimum level of voltage or current of the sensor configured in [G4.6.4]. It is -250.0 to G4.6.9...
  • Page 19 POWER ELECTRONICS SD750 Set on Screen Range Function m3/s m3/m Allows choosing different measure units for the analogue input 6 depending on the function of the m3/h sensor to be used. Changing this parameter implies that the minimum and maximum values of the sensor range will be affected by the corresponding conversion.
  • Page 20 SD750 POWER ELECTRONICS Set on Screen Range Function Allows adjusting a filtering to the analogue input 6 signal. By adjusting the value of this time constant, it is possible to eliminate possible instabilities in the signal caused by noise, wiring faults, G4.7.16 AI6 stabilizer...
  • Page 21 Note: The application of a low pass filter to any analogue signal produces a delay of approximately the value of the configured time constant. NOTICE Each input can be configured with multiple options, refer to the SD750 Drive Software & Programming Manual for more information on the functions of each input. COMMISSIONING...
  • Page 22 SD750 POWER ELECTRONICS Analog Outputs Sub-groups G8.2 to G8.7 of the SD750 drive are used to configure the analog outputs. When an expansion card is connected to the drive, new parameter subgroups for analog outputs are enabled in group G8.
  • Page 23 Note: Filter use can add a slight delay to the analogue output signal. NOTICE Each SA source selection can be configured with multiple options, refer to the SD750 Drive Software & Programming Manual for more information. COMMISSIONING...

  • Page 24: Visualization Parameters

    Visualization parameters Up next, the relevant visualization parameters are summarized. For details about the range of values and Modbus addresses, refer to the Software and Programming Manual for SD750 drives. Group SV3: Visualización externa: The parameters associated with analogue inputs 4 to 7 and analogue outputs 3 to 6 will only be displayed if an inputs and outputs expansion board has been connected.
  • Page 25 POWER ELECTRONICS SD750 Group SV9.3: External Registers: These registers show the conditions that were present at the moment when the last fault occurred. They are divided into the following subgroups: Screen Units Description SV9.3.10 AI4 value = 0.00 V See units G4.5.3 Shows the average value of the analogue input 4.

  • Page 26: Summary Of Modbus Addresses

    SD750 POWER ELECTRONICS Summary of MODBUS addresses Visualization Parameters Parameter Screen Description Address Modbus Range SV3.10 AI4 value = 0.00 V Value of the AI4 (AI4). 41261 Real Value = (Modbus Value / 1000) Shows the value or the PID reference SV3.11...
  • Page 27 POWER ELECTRONICS SD750 Parameter Screen Description Address Modbus Range SV9.3.29 AO4 percentage = 0.0 % Valueof sensor 1 associated to AO4. 41272 Real Value = (Modbus Value / 100) SV9.3.30 AO5 value = 0.00 V Valueof analogue output 5. 40965 Real Value = (Modbus Value / 1000) SV9.3.31...
  • Page 28 SD750 POWER ELECTRONICS Programming Parameters Parameter Screen Address Range Modbus Range Access G23.2.5 IO analog A status = Off 41125 0 to 1 G23.2.6 IO analog A test = No 41126 0 to 1 G23.2.7 IO analog B status = Off...
  • Page 29 POWER ELECTRONICS SD750 Parameter Screen Address Range Modbus Range Access G4.8.4 AI7 low level = 0.0 V 41408 -10.0 V to G4.8.6 -10000 to G4.8.6 G4.8.5 Sensor low level = 0.0 l/s 41409 -3200.0 l/s to G4.8.7 -32000 to G4.8.7 G4.8.6...

  • Page 30: Faults And Warnings List

    Description of Fault list DISPLAY DESCRIPTION The SD750 has stopped receiving a signal through the analog input 4 while [G4.5.14 AI4 loss F89:Analog input 4 missing protection] is set to "YES". The device has lost the signal entered through this input.
