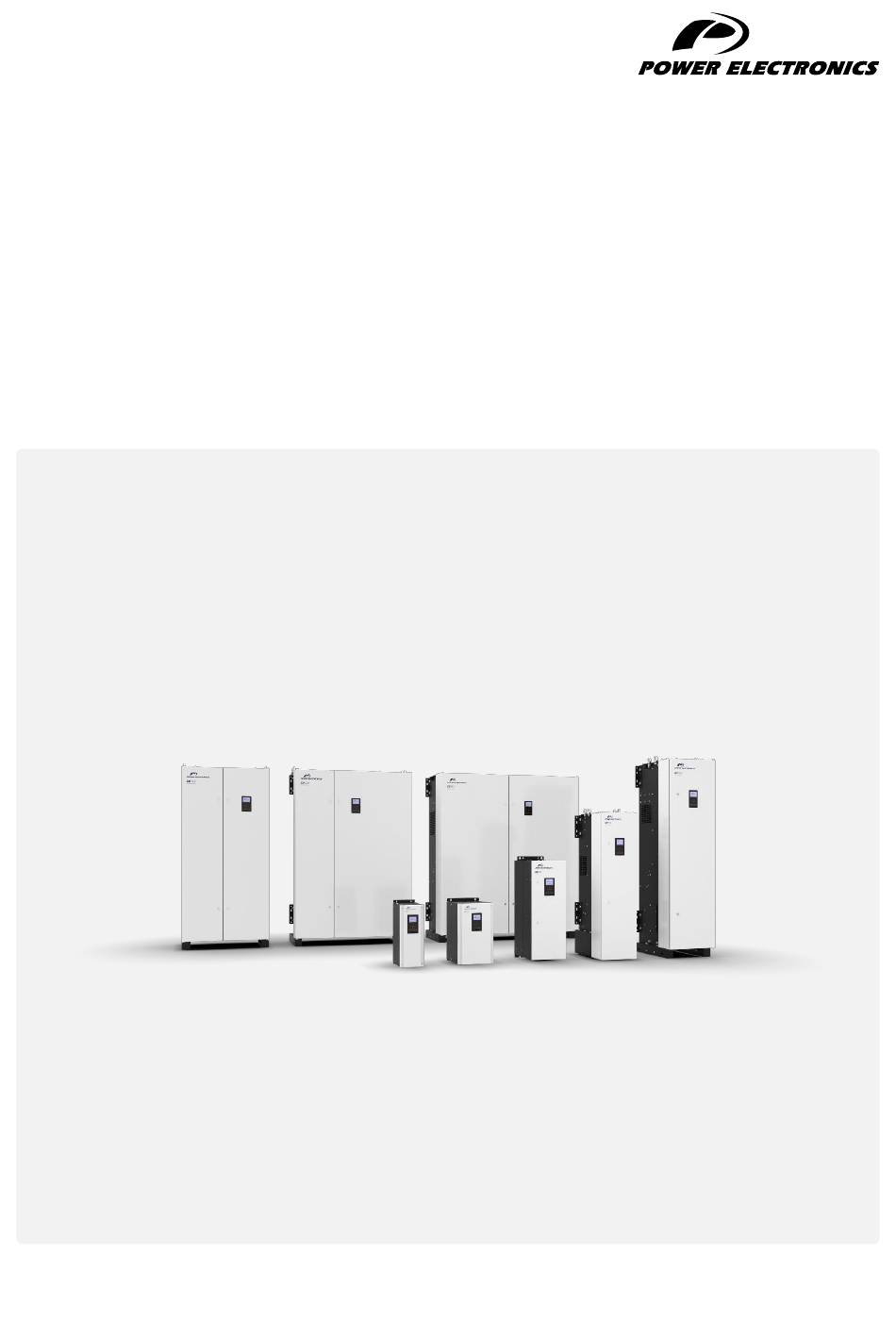

- Page 1 SD750 ACCESORIES MANUAL ENCODER BOARD LOW VOLTAGE VARIABLE SPEED DRIVE...
- Page 3 Accessories Manual Encoder board Edition: December 2019 SD75MA04AI Rev. A...
-
Page 4: About This Manual
Power Electronics’ SD750 variable speed drives. TARGET AUDIENCE This manual is intended for qualified customers who will install, operate and maintain Power Electronics SD750 variable speed drives. Only trained electricians may install and commission the drives. - Page 5 First Edition. The equipment and technical documentation are periodically updated. Power Electronics reserves the right to modify all or part of the contents of this manual without previous notice. To consult the most updated information of this product, you may access our website www.power-electronics.com, where the latest version of this manual can be downloaded.
-
Page 6: Table Of Contents
SD750 POWER ELECTRONICS TABLE OF CONTENTS ABOUT THIS MANUAL ..........................2 SAFETY SYMBOLS ............................. 5 SAFETY INSTRUCTIONS ..........................6 INTRODUCTION ............................. 7 Encoder board specifications ....................... 8 LED indicators ............................8 CONNECTION TO THE DRIVE ......................9 Connectors description and LED indicators ..................10 Connection drawings .......................... -
Page 7: Safety Symbols
POWER ELECTRONICS SD750 SAFETY SYMBOLS Always follow safety instructions to prevent accidents and potential hazards from occurring. In this manual, safety messages are classified as follows: Identifies potentially hazardous situations where dangerous voltage may be present, which if not avoided, could result in minor personal injury, serious injury or death. -
Page 8: Safety Instructions
For maintenance operations, follow the instructions from the Maintenance Manual. Power Electronics accepts no responsibility for any damages resulting from incorrect use of equipment. CAUTION Read carefully the Hardware and Installation Manual, the Maintenance Manual and all documentation related to the drive to guarantee its safe use and avoid the risk of personal injuries and damages to the equipment. -
Page 9: Introduction
…among others. Up to three optional boards can be connected, maximum two of the same type. This manual focuses on the optional encoder board. The encoder board allows the SD750 to be connected to an encoder to measure the speed of the motor it controls. This card has two channels for the connection of this encoder, which will be essential to have for closed-loop controls. -
Page 10: Encoder Board Specifications
SD750 POWER ELECTRONICS Encoder board specifications • Device type: Encoder. • Outputs for powering each encoder, programmable from 5VDC to 24VDC. • Optical insulation between the encoder and the control board. • Inputs for Channel A, /A, Channel B, /B and Channel Z, /Z (zero pass detection). -
Page 11: Connection To The Drive
The encoder expansion board can be connected directly, through the connector on its back side, to any of the three expansion connectors of the SD750 drive central control board. Once connected, it allows integrating an encoder through its connection to the expansion card. -
Page 12: Connectors Description And Led Indicators
When we state that the system operates correctly, it means that the communication between the expansion board, the network controller and the central SD750 microcontroller is correct. This does not mean, however, that the communication with the PLC is correct. - Page 13 POWER ELECTRONICS SD750 TERMINAL DESCRIPTION Input voltage for Motor encoder +5VDC +24V Alimentación del encoder +24VDC Common terminal for input voltage of Motor encoder Channel Z (inverse polarity). Channel Z Channel B (inverse polarity) Channel B Channel A (inverse polarity)
-
Page 14: Connection Drawings
SD750 POWER ELECTRONICS Connection drawings The following section shows two encoder wiring examples according to the input voltage and the output type of the encoder. Example 1 Connection of motor encoder powered at 24V with differential output. Example 2 Connection of motor encoder powered at 5V with ‘single-ended’ output. -
Page 15: Commissioning
POWER ELECTRONICS SD750 COMMISSIONING The encoder expansion board allows connecting an encoder to the drive SD750 in order to measure the controlled engine speed. The following steps must be followed: After stopping and de-energizing the drive, connect the expansion card to the connector of the equipment prepared for the expansion cards that are free. -
Page 16: Visualization Parameters
POWER ELECTRONICS Visualization parameters Up next, the relevant visualization parameters are summarized. For details about the range of values and Modbus addresses, refer to the Software and Programming Manual for SD750 drives. • Group SV1: Motor visualization SV1.17: Encoder speed = 0 rpm. Shows the real speed measured by the encoder. -
Page 17: Faults And Warnings List
POWER ELECTRONICS SD750 FAULTS AND WARNINGS LIST Please, consult the full list of fault and warning messages in the Software and Programming Manual for SD750 drives. Description of Fault list: DISPLAY DESCRIPTION F36: Encoder card com. There is a communication problem between the encoder card and central control. - Page 20 24H TECHNICAL ASSISTANCE 365 DAYS A YEAR FIND YOUR NEAREST DELEGATION POWER-ELECTRONICS.COM/CONTACT/...
