PARTS LIST MANUAL

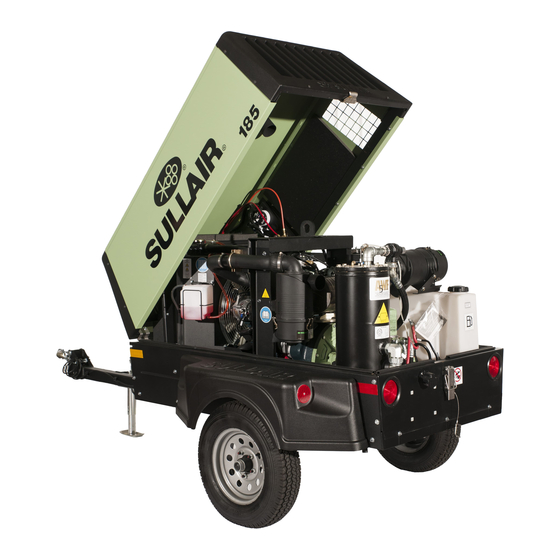

Portable Air Compressor
SAFETY WARNING
Users are required to read the
entire User Manual before han-
dling or using the product. Keep
the User Manual in a safe place
for future reference.
185
Tier 4 Final
Kubota
WARRANTY NOTICE
Failure to follow the instructions
and procedures in this manual,
or misuse of this equipment, will
void its warranty.
Subject to EAR, ECCN EAR99 and related export control restrictions.
PART NUMBER:
02250216-783 R02
The information in this manual is current as of its
publication date and applies to compressor models
indicated on this cover with serial number:
201808010000
and all subsequent serial numbers until next revision of
this manual or release of a replacement manual.
Publication date: 10/11/2019
Copyright © 2019 Sullair, LLC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 185 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sullair 185

Summary of Contents for Sullair 185

  • Page 1 User Manual in a safe place void its warranty. this manual or release of a replacement manual. for future reference. Publication date: 10/11/2019 Copyright © 2019 Sullair, LLC. All rights reserved. Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 2 Sullair training courses provide hands-on and classroom instruction for the proper operation, maintenance, and servicing of Sullair products. Individual courses on Portable compressors are offered at regular intervals throughout the year at Sullair’s training facility located in Michigan City, Indiana and on-site at Sullair distributor locations.

  • Page 3: Table Of Contents

    185 T4F Kubota Parts List Manual Table of Contents Table of Contents Procedure for ordering parts ..........1 1.11 Frame, running gear & parts ...........30 Recommended spare parts list ......... 2 1.12 Frame & parts less running gear........34 Engine, compressor & parts..........4 1.13...
  • Page 4 185 T4F Kubota Parts List Manual Table of Contents Notes: 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.

  • Page 5: Procedure For Ordering Parts

    Serial Number Plate located on the compressor (see Figure 1-1: Serial Number Plate Location). The genuine Sullair service parts listed meet or exceed the demands of this compressor. Use of replacement parts other than those approved by Sullair will void the Sullair warranties specific to this product and may lead to hazardous conditions over which Sullair has no control.

  • Page 6: Recommended Spare Parts List

    185 T4F Kubota Parts List Manual 1: Parts List 1.2 Recommended spare parts list Part number Qty Description Notes 02250102-158 Element, Primary for Air Filter 02250102-160 Element, Safety for Air Filter (optional) 250028-032 Element for Compressor Fluid Filter 250034-112 Element for Air/Fluid Separator...
  • Page 7 185 T4F Kubota Parts List Manual 1: Parts List 1.2 Recommended spare parts list Part number Qty Description Notes Parts included in kit: 02250102-158 250028-032 250034-112 02250212-657 02250212-699 Kit, 1500 Hour Maintenance 241772 02250211-226 02250211-228 250030-757 02250217-926 02250212-739 02250218-900 Relay, Glow Plug/Shutdown...

  • Page 8: Engine, Compressor & Parts

    185 T4F Kubota Parts List Manual 1: Parts List 1.3 Engine, compressor & parts 02250214-299 R06 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 9 185 T4F Kubota Parts List Manual 1: Parts List 1.3 Engine, compressor & parts Key Part number Qty Description Notes 02250125-471 WASHER, SNUBBING VIBRATION MOUNT 02250125-472 MOUNT, VIBRATION ISOLATOR 185 02250148-791 VALVE, ENG OIL DRAIN M22X1.5 02250201-829 Design Item (dwg),COMPR ASSY DXX145147A 02250208-353 SPACER,FAN 1.5LG 185C KUB...

  • Page 10: Air Inlet & Exhaust

    185 T4F Kubota Parts List Manual 1: Parts List 1.4 Air inlet & exhaust 02250215-360 R08 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 11 185 T4F Kubota Parts List Manual 1: Parts List 1.4 Air inlet & exhaust Key Part number Qty Description Notes 02250109-423 ELBOW,90M 5/16"TUBE X 1/8"NPT 02250140-440 FILTER,AIR 7" PLSTC 90 NON-CINT 02250209-920 SENSOR,MASS AIR FLOW 185C KUB 02250212-304 FILTER,AIR, 6 INCH...

  • Page 12: Cooling System & Parts

    185 T4F Kubota Parts List Manual 1: Parts List 1.5 Cooling system & parts 02250214-287 R013 (sh1) 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 13 185 T4F Kubota Parts List Manual 1: Parts List 1.5 Cooling system & parts 02250214-287 R013 (sh2) 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 14 185 T4F Kubota Parts List Manual 1: Parts List 1.5 Cooling system & parts Key Part number Qty Description Notes 02250083-466 CONTAINER,RADIATOR FLUID RECOVERY 02250124-404 ELEMENT,THERM VLV 160DEG SETTING 02250137-297 SEAL, CLIP-ON BAFFLES 185 60HP 02250154-659 TRIM,CLIP-ON GRIP 185-260DUQ 02250160-095...
  • Page 15 185 T4F Kubota Parts List Manual 1: Parts List 1.5 Cooling system & parts Key Part number Qty Description Notes 040083 CLAMP, HOSE 1 13/16" X 2 3/4" ADJ. 250025-914 ADAPTER, OIL FLTR .970-20 UNEF 250026-982 ELEMENT,FLUID FILTER W/BYPASS 250041-174 WEATHERSTRIP,1"THK X 1"WIDE...

  • Page 16: Discharge System

    185 T4F Kubota Parts List Manual 1: Parts List 1.6 Discharge system 02250214-276 R10 (sh1) 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 17 185 T4F Kubota Parts List Manual 1: Parts List 1.6 Discharge system 02250214-276 R10 (sh2) 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 18 185 T4F Kubota Parts List Manual 1: Parts List 1.6 Discharge system Key Part number Qty Description Notes 02250052-841 INSERT,NYL TBG 1/4 OD X .035W 02250054-860 TUBE,NYL .25 OD X 040W WHT(FT) 02250054-861 TUBE,NYL .25 OD X 040W BLK(FT) 02250081-220 TUBE,NYL .3125OD X.04W WHT(FT)
  • Page 19 185 T4F Kubota Parts List Manual 1: Parts List 1.6 Discharge system Key Part number Qty Description Notes 250004-043 TUBE, SS 1/4"OD OIL SIPHON 185 250006-938 VALVE,RELIEF 1/2" 200# 250018-428 CONNECTOR, 1/4"TUBE X 1/4"NPT 250018-430 ELBOW, 1/4"TUBE X 1/4"NPT 250019-916 VALVE, DOUBLE BALL 3/4"...
  • Page 20 185 T4F Kubota Parts List Manual 1: Parts List 1.6 Discharge system Key Part number Qty Description Notes Drawing notes TO COMPRESSOR AIR INLET HOSE TO START SWITCH ON CONTROLS TO RUN SWITCH ON CONTROLS TO COOLER PACK TO FRONT FENDER SKIRT...
  • Page 21 185 T4F Kubota Parts List Manual 1: Parts List Notes: 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.

  • Page 22: Manifold Regulator/Blowdown Valve

    185 T4F Kubota Parts List Manual 1: Parts List 1.7 Manifold regulator/blowdown valve 02250209-385 R06 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 23 185 T4F Kubota Parts List Manual 1: Parts List 1.7 Manifold regulator/blowdown valve Key Part number Qty Description Notes 02250081-218 ELBOW, 90 5/16T PLS * 1/4 NPT 02250099-626 ELBOW,90 3/8" TUBE X 1/4 MNPTF 02250137-033 ELBOW, 90F 3/8"TUBE X 1/4"NPT...

  • Page 24: Fuel System

    185 T4F Kubota Parts List Manual 1: Parts List 1.8 Fuel system 02250213-789 R012 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 25 185 T4F Kubota Parts List Manual 1: Parts List 1.8 Fuel system Key Part number Qty Description Notes 02250154-661 PLATE, FUEL OUTLET COVER 02250162-230 CAP, FUEL TANK NON-VENTED 4" 02250185-730 CONNECTOR,TUBE X NPT SPCL 3/8" 02250209-924 FILTER,FUEL 185C KUBOTA 02250213-579...
  • Page 26 185 T4F Kubota Parts List Manual 1: Parts List 1.8 Fuel system Key Part number Qty Description Notes 829706-125 SCREW, HX SER WASH 3/8X1 1/4" 837802-047 WASHER, SPRLOCK REG PLTD #10 842315-031 HOSE, FUEL LINE 5/16" (FT) 842315-038 HOSE, FUEL LINE 3/8" (FT) 842345-050 HOSE,FUEL LINE 1/2"...
  • Page 27 185 T4F Kubota Parts List Manual 1: Parts List Notes: 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.

  • Page 28: Electrical System Parts

    185 T4F Kubota Parts List Manual 1: Parts List 1.9 Electrical system parts 02250214-435 R16 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 29 185 T4F Kubota Parts List Manual 1: Parts List 1.9 Electrical system parts Key Part number Qty Description Notes 02250092-169 WASHER, EXTERNAL SERRATED M10 02250104-193 HOLD-DOWN, BATTERY 11" J-BOLT 02250114-276 BATTERY, GRP 31 HI CAP TAPER POST 02250119-658 LAMP, LICENSE STD 185-375...
  • Page 30 185 T4F Kubota Parts List Manual 1: Parts List 1.9 Electrical system parts Key Part number Qty Description Notes 02250239-617 SCREW,PAN HD PH#4-40 X 3/4 SS 02250241-534 ANGLE,REGEN SWITCH 185D 02250245-910 CABLE,185D ALTERNATOR 250019-104 ANGLE, HOLD-DOWN BATTERY 250028-415 LAMP, TAIL RED SHOCK MOUNT 408300-001 CLAMP, HOSE O.D.
  • Page 31 185 T4F Kubota Parts List Manual 1: Parts List 1.9 Electrical system parts Key Part number Qty Description Notes FUSE BOX BOLTS TO ENGINE FAN SHROUD COMPRESSOR DISCHARGE TEMP (OPTIONAL) TO GROUND SCREW ON FRAME ELECTRIC BRAKE PARTS OPTIONAL 02250139-964 LIGHT HARNESS WILL NOT BE USED FOR THE "NO RUNNING GEAR OPTION"...

  • Page 32: Disconnect Switch (Optional)

    185 T4F Kubota Parts List Manual 1: Parts List 1.10 Disconnect switch (optional) 02250215-370 R05 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 33 185 T4F Kubota Parts List Manual 1: Parts List 1.10 Disconnect switch (optional) Key Part number Qty Description Notes 02250160-837 SWITCH, BATTERY DISCONNECT 6-36V; 175 AMPS CONTINUOUS 02250165-472 LOCK,BATT DISCONNECT SWITCH 02250214-924 MOUNT,BRACKET DIS CNT SWITCH 185D 02250215-552 CABLE,NEG GRND...

  • Page 34: Frame, Running Gear & Parts

    185 T4F Kubota Parts List Manual 1: Parts List 1.11 Frame, running gear & parts 02250214-101 R13 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 35 185 T4F Kubota Parts List Manual 1: Parts List 1.11 Frame, running gear & parts Key Part number Black P/N Stainless P/N Qty Description Notes 02250094-269 CHAIN, 1/4 X 72 W/2 EZ3 HOOKS 02250100-538 CONNECTOR, DELTA-SHAPED CHAIN 1/4" 02250116-794 JACK, HD W/PAD 185-425 STD...
  • Page 36 185 T4F Kubota Parts List Manual 1: Parts List 1.11 Frame, running gear & parts Key Part number Black P/N Stainless P/N Qty Description Notes 02250226-461 FRAME,WELDMENT ASSY, 185D KUB 02250242-608 PLUG,LOCKING FOR PANEL 40162 GROMMET, 11/16IDX1 5/16ODX7/16 250002-221 EYE, 3" LUNETTE...
  • Page 37 185 T4F Kubota Parts List Manual 1: Parts List Notes: 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.

  • Page 38: Frame & Parts Less Running Gear

    185 T4F Kubota Parts List Manual 1: Parts List 1.12 Frame & parts less running gear 02250215-148 R11 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 39 185 T4F Kubota Parts List Manual 1: Parts List 1.12 Frame & parts less running gear Key Part number Black P/N Stainless P/N Qty Description Notes 02250121-515 STUD, BALL GAS SPRING 5/16TH X .54L 02250139-967 CATCH, ASSEMBLY PINNED 185Q 60HP...

  • Page 40: Canopy & Parts

    185 T4F Kubota Parts List Manual 1: Parts List 1.13 Canopy & parts 02250214-039 R15 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 41 185 T4F Kubota Parts List Manual 1: Parts List 1.13 Canopy & parts Key Part number Green P/N White P/N Yellow P/N Stainless P/N Qty Description Yellow-Green P/N 02250131-747 CATCH, PAD-LOCKABLE 02250134-494 HINGE, CANOPY 185 CLAM 02250134-713 LOUVER, CANOPY ENDS 185Q 60HP...
  • Page 42 185 T4F Kubota Parts List Manual 1: Parts List 1.13 Canopy & parts Key Part number Green P/N White P/N Yellow P/N Stainless P/N Qty Description Yellow-Green P/N ZTR ANTENNA (OPTIONAL) - REMOVE PLASTIC PLUG IN ROOF PANEL Modules Yellow-green galvanneal...
  • Page 43 185 T4F Kubota Parts List Manual 1: Parts List Notes: 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.

  • Page 44: Decals & Parts

    185 T4F Kubota Parts List Manual 1: Parts List 1.14 Decals & parts 02250216-430 R06 (sh1) 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 45 185 T4F Kubota Parts List Manual 1: Parts List 1.14 Decals & parts 02250216-430 R06 (sh2) 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 46 185 T4F Kubota Parts List Manual 1: Parts List 1.14 Decals & parts Key Part number Spanish P/N French P/N Qty Description Notes 02250097-455 02250098-716 02250098-712 DECAL,5 YEAR WARRANTY AWF 02250118-638 DECAL,PROP65 DSL EXHST WARNING 02250140-918 02250140-918 02250140-918 DECAL,"185" 3 INCHES HIGH...
  • Page 47 185 T4F Kubota Parts List Manual 1: Parts List 1.14 Decals & parts Key Part number Spanish P/N French P/N Qty Description Notes LOCATED IN TOOL STORAGE AREA ARE LOCATED ON INSIDE OF ACCESS DOOR COVER HOLE PATTERN IN PANELS ON BOTH SIDES OF COMPRESSOR 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.

  • Page 48: Instrument Panel, Standard Gauge

    185 T4F Kubota Parts List Manual 1: Parts List 1.15 Instrument panel, standard gauge 02250217-697 R06 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 49 ACTIA ASSEMBLY P/N 118235 (FOR REFERENCE ONLY). ASSEMBLY PER ACTIA/SULLAIR SPECIFICATION # 02250236-312. MARK/TAG COMPONENT/CONTAINER WITH SULLAIR PART NUMBER AND REVISION. REF. MASTER GAUGE MUST BE PROGRAMMED TO MATCH THE MACHINES PROFILE. REFERENCE THE PROGRAM PART NUMBER ON THE MACHINES TOP BOM LISTING.

  • Page 50: Optional Dual Hose Reels & Oilers

    185 T4F Kubota Parts List Manual 1: Parts List 1.16 Optional dual hose reels & oilers 02250215-355 R05 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 51 185 T4F Kubota Parts List Manual 1: Parts List 1.16 Optional dual hose reels & oilers Key Part number Qty Description Notes 02250103-552 HOSE, MP 37FJIC SWVL X 13 02250160-116 HOSE, MP 1.125 JIC X41 02250176-675 VALVE,BALL 1"FEM NPT 02250210-535...

  • Page 52: Optional Single Hose Reel & Oilers

    185 T4F Kubota Parts List Manual 1: Parts List 1.17 Optional single hose reel & oilers 02250215-354 R04 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 53 185 T4F Kubota Parts List Manual 1: Parts List 1.17 Optional single hose reel & oilers Key Part number Qty Description Notes 02250139-775 HOSE,HYD PARKRIMP 3/4 X 21 02250160-116 HOSE,HYD PARKRIMP 1-1/4" X 38 02250176-675 VALVE,BALL 1"FEM NPT 02250210-535 SUPPORT,HOSE REEL AND MANIFOLD 040170 REEL, HOSE 100FT 3/4"HOSE X 3/4"NPT...

  • Page 54: Drawbar Installation

    185 T4F Kubota Parts List Manual 1: Parts List 1.18 Drawbar installation 02250141-874 R02 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 55 185 T4F Kubota Parts List Manual 1: Parts List 1.18 Drawbar installation Key Part number Qty Description Notes 02250094-269 CHAIN, 1/4 X 72 W/2 EZ3 HOOKS 02250100-538 CONNECTOR, DELTA-SHAPED CHAIN 1/4" 837808-125 WASHER, SPRLOCK REG PLTD 1/2" 838208-112 WASHER, PL-B REG PLTD 1/2"...

  • Page 56: Optional Canadian Lights

    185 T4F Kubota Parts List Manual 1: Parts List 1.19 Optional Canadian lights 02250141-883 R00 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 57 185 T4F Kubota Parts List Manual 1: Parts List 1.19 Optional Canadian lights Key Part number Qty Description Notes 02250101-371 NAMEPLATE, VIN CANADA DUAL LANGUAGE 02250101-403 COVER, VIN CANADA 02250129-278 REFLECTOR, 3" DIA ADHS MTG RED 02250129-279 REFLECTOR, 3" ADHS MTG YELLOW...
  • Page 58 185 T4F Kubota Parts List Manual 1: Parts List Notes: 02250216-783 R02 Subject to EAR, ECCN EAR99 and related export control restrictions.
  • Page 59 WARNING Breathing diesel engine exhaust exposes you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. • Always start and operate the engine in a well-ventilated area. • If in an enclosed area, vent the exhaust to the outside. •...
  • Page 60 Sullair, LLC 1 Sullair Way Michigan City, IN 46360 USA www.sullair.com 1-800-SULLAIR (USA only) 1-219-879-5451 (non-USA) Information and specifications are subject to change without prior notice. Subject to EAR, ECCN EAR99 and related export control restrictions.
