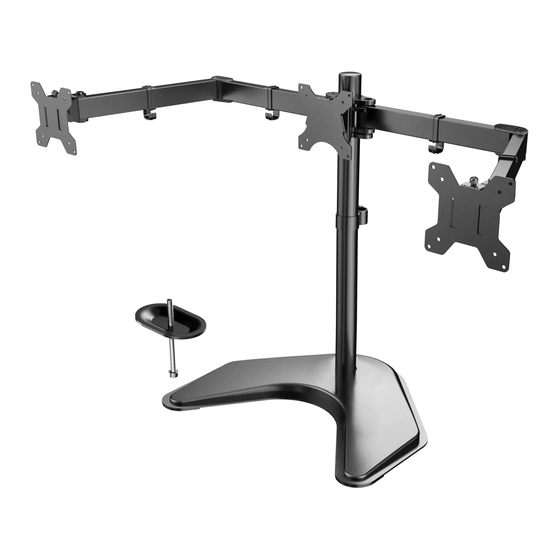

Triple monitor stand

Download this manual

Triple Monitor Stand

Carefully open the carton, remove contents and lay out on cardboard or other

protective surface to avoid damage.

Check package contents against the Supplied Parts List in the next page to assure

that all components were received undamaged. Do not use damaged or defective

parts.

Carefully read all instructions before attempting installation.

Install and operate this device with care. Please read this instruction before

installation, and carefully follow all instructions contained herein. Use proper safety

equipment during installation.

Please call a qualified installation contractor for help if you don't understand these

directions or have any doubts about the safety of the installation.

Do not use this product for any purpose or in any configuration not explicitly specified

in this instruction. We hereby disclaims any and all liability for injury or damage

arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

UNPACKING INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

V1.0

HNCM6

Need help?

Do you have a question about the HNCM6 and is the answer not in the manual?

Page 1 Triple Monitor Stand V1.0 HNCM6 UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
Page 3 Option A： Install the Weighted Base 1.Install the Pole(a) to the Weighted Base(b) with 3 pcs of M5x14 Bolts(g). Use the Allen Key(o) to tighten the bolts. See Figure 1. 2.Optionally, you can drill a 3/8”(10mm) diameter hole in your desk and secure it by using the Support Plate(j), M10 Washer(k), Spring Washer(l) and M10 Bolts(i).
Page 4 Option B： Install the Grommet Base 2.Install the Grommet Base Plate(m) to the Pole(a) with 3 pcs of M5x14 Bolts(g). Tighten the bolts with the Allen Key(o). See Figure 5. 3.Position the Pole(a) on the mounting surface. Install the Spring Washer(l) and M10 Washer(k) to M10 Bolt(i).
