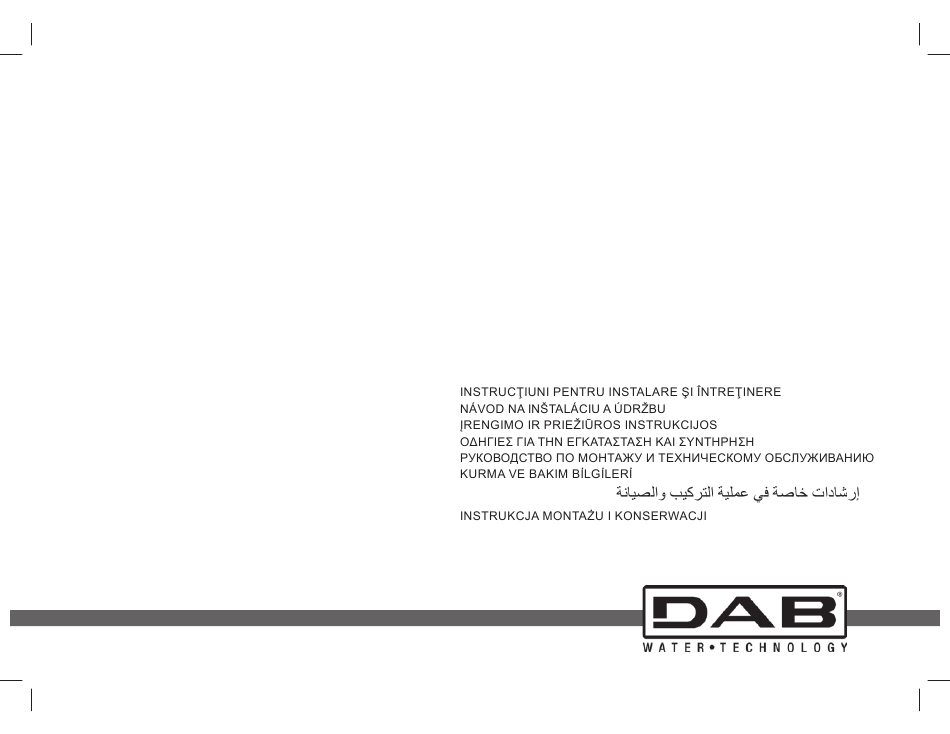

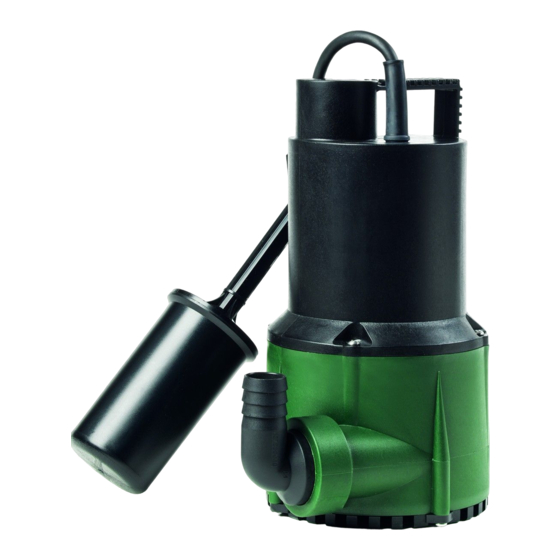

  • Page 1 NOVA UP ISTRUZIONI PER L’INSTALLAZIONE E LA MANUTENZIONE INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE INSTRUCTIONS POUR L’INSTALLATION ET LA MAINTENANCE INSTALLATIONS - UND WARTUNGSANLEITUNGEN INSTRUCCIONES DE INSTALACIÓN Y MANTENIMIENTO GEBRUIKS - EN ONDERHOUDSAANWIJZINGEN INSTALLATIONS - OCH UNDERHÅLLSANVISNING...
  • Page 2 IT - ITALIANO pag 01 GB - ENGLISH page 13 FR - FRANÇAIS page 25 NOVA UP 180MA - MNA DE - DEUTSCH Seite 37 NOVA UP 300MA - MNA ES - ESPAÑOL pág. 49 pag. 61 NOVA UP 600MA - MNA NL - NEDERLANDS SE - SVENSKA sid.
  • Page 3 ENGLISH INDEX Warnings Responsibility 1. Applications 2. Pumped liquids 3. Technical data and limitations of use 4. Management 4.1 Storage 4.2 Transport 4.3 Weight 5. Warnings 6. Installation 6.1 “Zero” Suction 7. Electrical connection 8. Start-up a) MA b) MNA - MNA-X 9.
  • Page 4 ENGLISH The appliance is not intended to be used by persons The following symbols have been used in the discussion: (including children) with reduced physical, sensory or mental capacities, or who lack experience or knowledge, Situation of general danger. Failure to respect the unless, through the mediation of a person responsible instructions that follow may cause harm to persons and property.

  • Page 5: Pumped Liquids

    ENGLISH RESPONSIBILITY ble oils, solvents, etc.) in accordance with the acci- dent-prevention regulations in force. The Manufacturer does not vouch for correct 2. PUMPED LIQUIDS operation of the electropumps or answer for any damage that they may cause if they have been NOVA UP Fresh water: recommended work range or in contrast with other...
  • Page 6 ENGLISH according to EN 60335-2-41 for domestic use Minimum draught Max. Granulo- • Max. granulometry: Model 10 mm depth metry NOVA UP 180MA - MNA 60 mm Volt Hmax Flow max NOVA UP 300MA - MNA Model Immersion 70 mm NOVA UP 600MA - MNA 10 mm 220-...
  • Page 7 ENGLISH The pumps must never be carried, lifted or allowed to 5. WARNINGS operate suspended from the power cable. • Use in cellars, basements, etc. is allowed only if the electric sy- stem is in possession of safety precautions in accordance with the •...

  • Page 8: Installation

    ENGLISH • The sealing device contains lubricant which is non-toxic but • It is advisable to use pipes having an internal diameter of which may alter the characteristics of the water, in the case of 30 mm, to avoid the decrease of pump performance and the pure water, if the pump were to have any leaks.

  • Page 9: Electrical Connection

    ENGLISH Figure 2 The “Zero” suction function is allowed only in models Figure 5 7. ELECTRICAL CONNECTION Always respect the safety regulations! Ensure that the mains voltage corresponds to the value indicated on the data plate and THAT IT IS POSSIBLE TO MAKE A GOOD EARTH CONNECTION.
  • Page 10 ENGLISH The length of the power cable on the pump limits the maximum depth of immersion in use of the pump. 8. START-UP water level rises from the socket (not supplied) Figure 6 • It is recommended to equip fixed pumping stations with a device with a differential trip current lower than 30 mA (for the version 220-240V version).
  • Page 11 ENGLISH a) MA b) MNA - MNA-X Figure 8 9. PRECAUTIONS Figure 7 • RISK OF FROST: when the pump remains inactive at a tempe- rature lower than 0°C, it is necessary to ensure that there is no water residue which could freeze, causing cracks in the plastic Difference Level On Level Off...

  • Page 12: Maintenance And Cleaning

    ENGLISH 10. MAINTENANCE AND CLEANING In normal operation the pump does not require any type of main- tenance. The pump may not be dismantled except by skilled and and maintenance work must be carried out only after having disconnected the pump from the supply mains. tact with moving parts.

  • Page 13: Modifications And Spare Parts

    ENGLISH 10.2.Cleaning the impeller 11. MODIFICATIONS AND SPARE PARTS • Switch off the electric power supply to the pump. • On the models where it is present, unscrew the fixing screw the manufacturer of all responsibility. All the spare parts on the filter (Fig.9).

  • Page 14: Troubleshooting

    ENGLISH 12. TROUBLESHOOTING CHECKS FAULTS REMEDIES (possible causes) CHECKS FAULTS REMEDIES A- Check that the (possible causes) suction grid is not A. Check that voltage B. If burnt out, partially blocked is reaching the change them. Check that the impel- A.
