StarTech.com VS321HDBTK Quick Start Manual

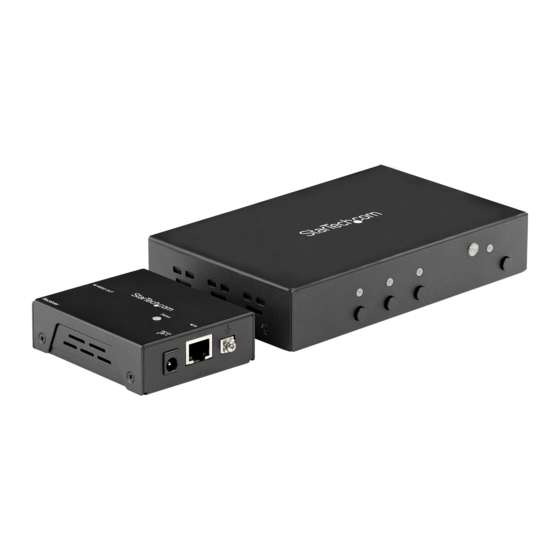

Multi-Input HDMI over HDBaseT Extender with Built-In Switch

Product Diagram (VS321HDBTK)

Transmitter Front View

1
4

Transmitter Rear View

6 7
11 12
Receiver Front View
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2 3
10
8 9
13
14

Receiver Rear View

5
Port
1
Port LED Indicators
2
Infrared Sensor
3 Status LED Indicator
Input Selection
4
Buttons
5
Standby Button
6
DC 12V Power Port
7 Serial Control Port
8 EDID Copy Button
9 Mode Switch
10
HDMI Input Ports
11
System Ground
Video Link Output
12
Port
13 EDID LED Indicator
Quick-Start Guide
15 16 17
18

Transmitter

Function
Front
Indicates the selected HDMI Input Port
Receives infrared signals for remote control of the device
Indicates the status of the Transmitter
Select an active HDMI Input Port
Enter or exit Standby Mode
Rear
Connect a Power Source
Connect to a Computer using an RJ11 to RS232 Adapter
for Serial Control
Copy EDID settings from the Remote Display
Switch between Manual, Automatic and Priority HDMI
source selection
Connect HDMI source devices
Connect a Grounding Wire to prevent damage from
static electricity
Connect the Receiver via CAT5e/6 Cable
Indicates the EDID Copy status
Manual Revision: October 7, 2021 5:19 PM
