Gill 730182 Instructions

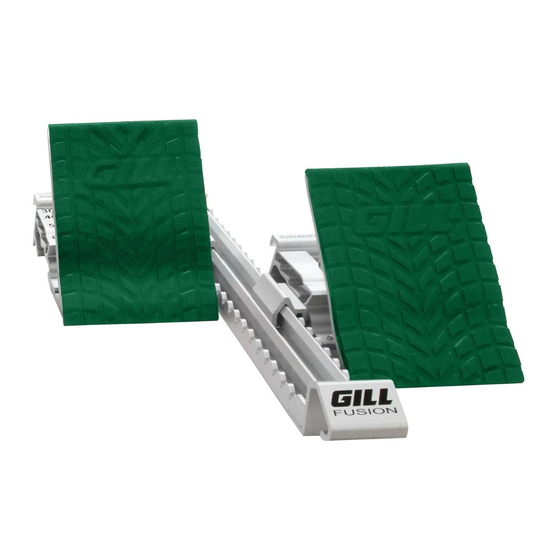

Fusion 8x8 starting block

www.gillathletics.com

800-637-3090

Pedal pads are available in the following colors:

- Royal Blue

- Red

- Orange

- Black

- Green

Carrying handle

Precise and consistent foot placement is

ensured using the integrated pedal markings.

Pedals are adjustable to 30°, 40°, 50°, and 60°

settings. Angled spikes in the base of the pedals

guarantee a start with absolutely no slipping.

Built in handle allows for easy carriage.

730182 - FUSION 8x8 STARTING BLOCK

False start bracket

Pedal pads are 8" x 8"

INSTRUCTIONS

Pedal angle adjusts

to four positions.

8/1/2015

INST730182

Page 1 of 4

Table of Contents

Need help?

Do you have a question about the 730182 and is the answer not in the manual?

Page 1 730182 - FUSION 8x8 STARTING BLOCK INSTRUCTIONS www.gillathletics.com 800-637-3090 Pedal pads are available in the following colors: - Royal Blue False start bracket - Red - Orange - Black - Green Pedal angle adjusts to four positions. Pedal pads are 8" x 8"...
Page 2 730182 - FUSION 8x8 STARTING BLOCK INSTRUCTIONS www.gillathletics.com 800-637-3090 The FUSION starting block is shipped unassembled. Pedal Plate The following tools are needed: - Needle Nose Pliers Pedal Pad - Spike Wrench - Allen Key (provided) 1. Pedal pads Set the angle of the pedal to the 60 position.
Page 3 730182 - FUSION 8x8 STARTING BLOCK INSTRUCTIONS www.gillathletics.com 800-637-3090 Replacement Parts 7301821C02 - Royal Blue 7301821C03 - Red 7301821C05 - Orange 73018221 7301821C12 - Black Left Pedal Assembly 7301821C15 - Green 73016506 Pedal-Rail Connector 73018222 Right Pedal Assembly 73016502 Rail 730175003 Handle &...
Page 4 730182 - FUSION 8x8 STARTING BLOCK INSTRUCTIONS www.gillathletics.com 800-637-3090 Replacement Parts PART # DESCRIPTION M2829 M8 x 20 Flat Head Cap Screw M2556 Spring Pin M2830 M6 Flat Washer M2831 M6 x 16 Cap Screw HDWE73018205 Pedal Plate Top Hinge Set Screw...
