Gill 73300C SP Series Instructions Manual

Agx m2 pole vault standards
Hide thumbs

Advertisement

Quick Links

Download this manual
www.gillathletics.com
800-637-3090

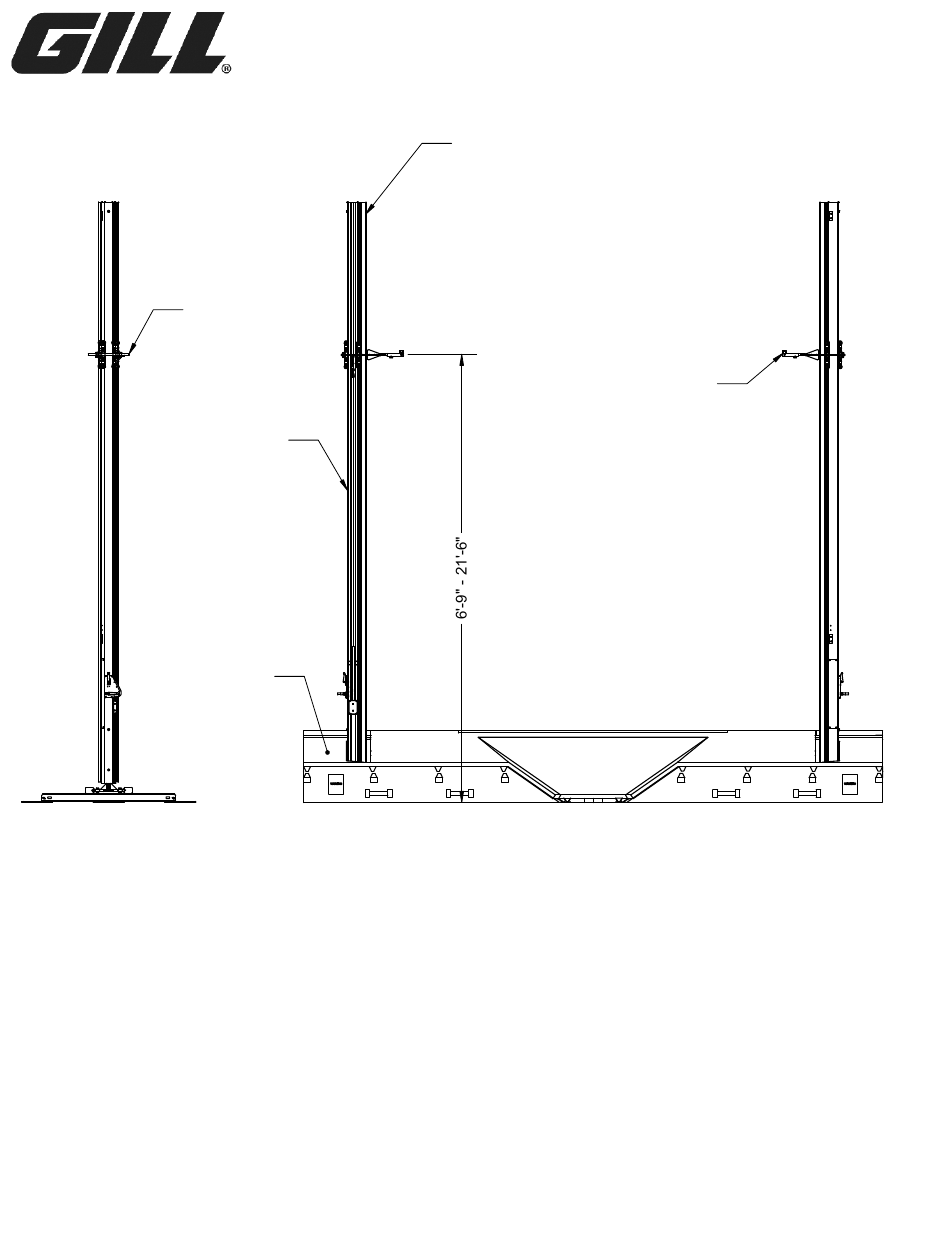

Traveling Height
Carriage
Aluminum Upright
Base Protector Pads
sold seperately
Item #61817CXX
- Hand crank system simplifies and speeds up height transitions
- Customize exclusive 2" safety pad with choice of color and graphics
- 2" safety pad increases safety of athletes and reduces vaulting pole damage
- Simple brake mechanism with ON / OFF positions
- Internal measuring tape displays Metric and English units
- Slide unit to adjustment offset from 0cm to 80cm
- Exclusive customizable offset width between pins from 4.30m-4.37m
- Steel slide base features steel flat wings to increase the foot print and more stability
- Easy-Port hinge technology for quicker location movement
- Strong aluminum profile increases aesthetics, functionality, and customization
- Height range from 6'-9" to 21'-6"
Copyright  2017 by Gill Athletics.
All rights reserved.
73300CXXYYSP - AGX M2 POLE VAULT STANDARDS
Graphic Pad
- Safety
- Spectator Involvement
- Custom Artwork
Telescoping Peg Tube
INSTRUCTIONS
1/30/2023
INST77300CXXYYSP
Page 1 of 16

Advertisement

loading
Need help?

Need help?

Do you have a question about the 73300C SP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Gill 73300C SP Series

Summary of Contents for Gill 73300C SP Series

  • Page 1 - Steel slide base features steel flat wings to increase the foot print and more stability - Easy-Port hinge technology for quicker location movement - Strong aluminum profile increases aesthetics, functionality, and customization - Height range from 6'-9" to 21'-6" 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 1 of 16...
  • Page 2 WARNING: This product can expose you to Urethane, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov. 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 2 of 16...

  • Page 3: Shipping List

    73300CXXYYSP - AGX M2 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 SHIPPING LIST Right Upright x1 Height Adjustment Carriage x2 Left Upright x1 Leveling Plate x2 Base x2 Base Hardware 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 3 of 16...
  • Page 4 For a tighter or looser fit, the four inner skate wheels can be moved up or down inside of the slide base slots. FLAT HEAD SCREW WILL SELF CENTER IN HOLE 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 4 of 16...
  • Page 5 1 74011012 WELMENTELDMENT 2 HDWE05023 5/8" FLAT WASHER; SS 3 HDWE04010 5/8" SPLIT RING LOCK WASHER; SS 4 HDWE03102 5/8"-11 THIN HEX NUT; ARMOR COAT 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 5 of 16...
  • Page 6 • Place base back over holes. • Insert included 1/2"-13 bolt and 1/2" washer M2875 through rails into shield and tighten. 2 1/2" 2 1/2" 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 6 of 16...
  • Page 7 Loosen these nuts before leveling the hinge plate. Tighten these nuts once the hinge plate is level. Use these nuts to level the hinge plate. 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 7 of 16...
  • Page 8 Hinge Pin Hinge Pin 2x Adults required. Carefully align the hinge of the leveling plate and the hinge of the stem plate. Install the hinge pins. 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 8 of 16...
  • Page 9 Make sure that the Lifter Flat Holes are on the same side as the Lifter Flat Channel. Reattach the top plate and top bumper stop. Lifter Flat Channel Lifter Flat Holes 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 9 of 16...
  • Page 11 The pin should point towards the rear of the landing system. The back-stop should be towards the top of the upright. Back-Stop The clamp knob should be towards the base. Bar Rest Pin Clamp Knob 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 11 of 16...
  • Page 12 Part # Description Qty. 74011025 Drilled Crank Handle HDWE08066 1/4" Quick Release Pin 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 12 of 16...
  • Page 13 After the upright is vertical and bolted down, release the brake and lower the carriage. The loop should lower with the carriage so that the knot can be undone. 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 13 of 16...
  • Page 14 4 HDWE03102 5/8"-11 THIN HEX NUT; ARMOR COAT 5 N1003 KARABINER 6 MISC00291 PV BASE PIN LANYARD CORD 7 LABL00598 PV STANDARD HINGE PIN SAFETY TAG 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 14 of 16...

  • Page 15: Fine Tuning

    Finally, retighten the two screws. Make small adjustments. Making the carriage hug the upright too tightly can make it difficult to move up and down. 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 15 of 16...
  • Page 16 Tape Measure Loosen to adjust tape measure. Loosen to adjust clamp position on belt. Clamp 1/30/2023 INST77300CXXYYSP Copyright  2017 by Gill Athletics. All rights reserved. Page 16 of 16...
