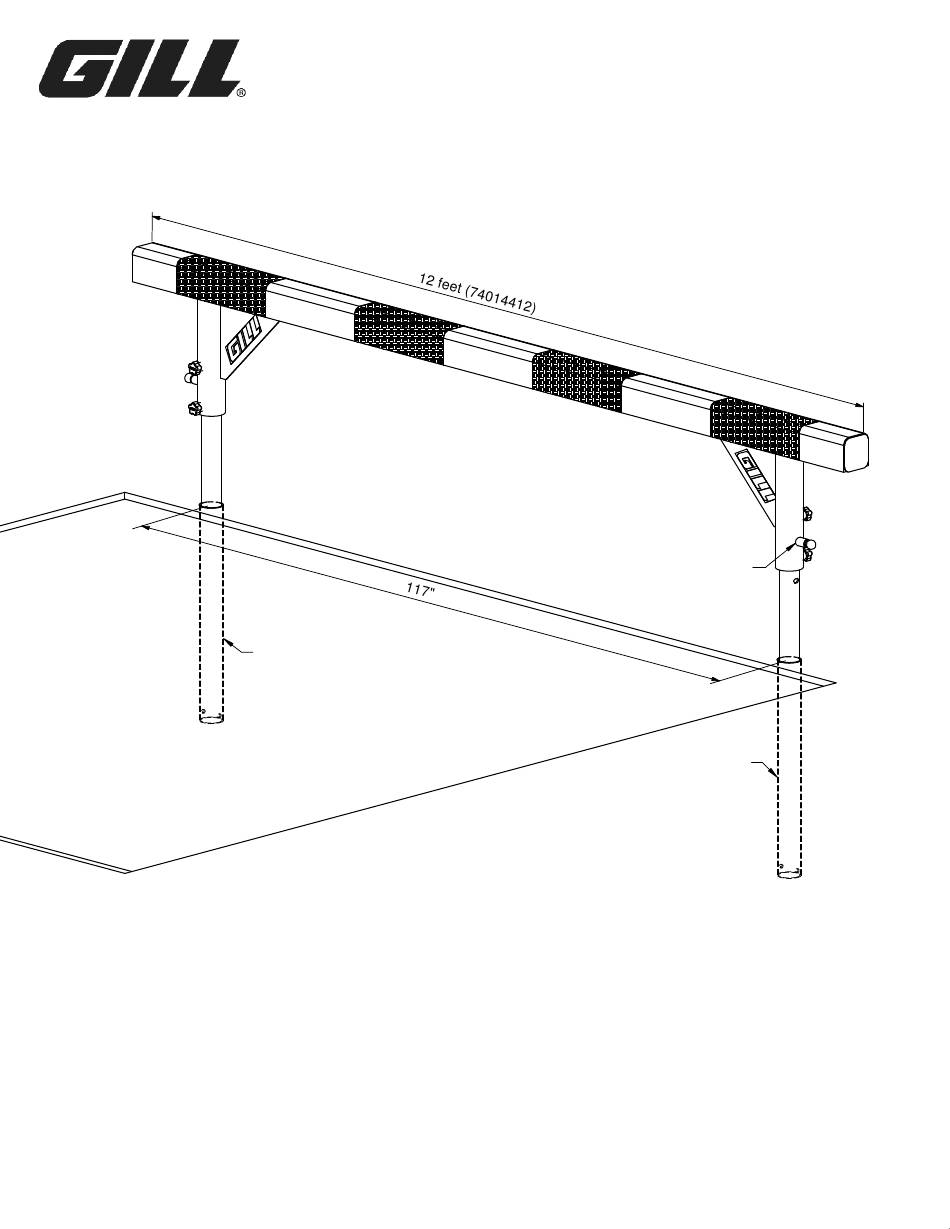

740134 - WATER JUMP BARRIER - GROUND SLEEVED
Ground Sleeve
The barrier adjusts to three heights; 30, 33, and 36 inches. The
beam is locked in position with a stainless steel spring loaded
pull pin and clamping knobs.
The beam is constructed of 4 inch square 11 gauge steel tube, covered on
three sides with 1/2 inch thick Vultrak track surface.
The leg assemblies are fabricated from 2-1/2 " and 3-1/2" Sch 40 steel pipe
with spring assist. The legs are painted with powder coat for a durable finish.
The leg assemblies are installed into PVC ground sleeves 32 inches deep.
NCAA compliant and IAAF certified.
The 740134 Water Jump Barrier is designed to be using ground
sleeves set into the wall of a water jump pit. The beam is 12 feet wide
Spring loaded pull pin & clamping
knobs for height adjustments
INSTRUCTIONS
Ground Sleeve
INST740134
Page 1 of 4
6/12/2015
