Gill 7100 Assembly Instructions Manual

www.gillathletics.com
800-637-3090
Copyright  2012 by Gill Athletics.
All rights reserved.

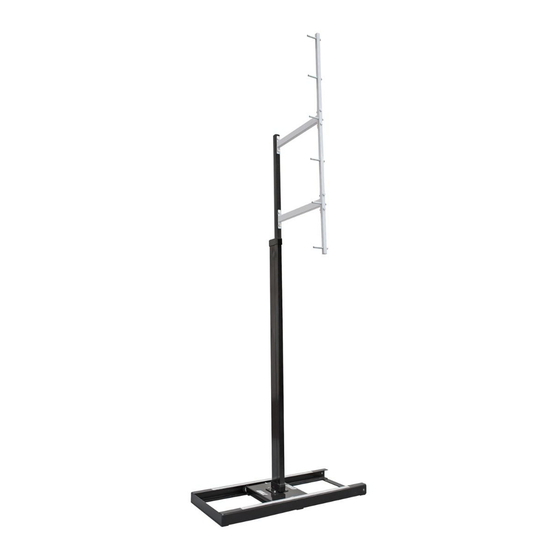

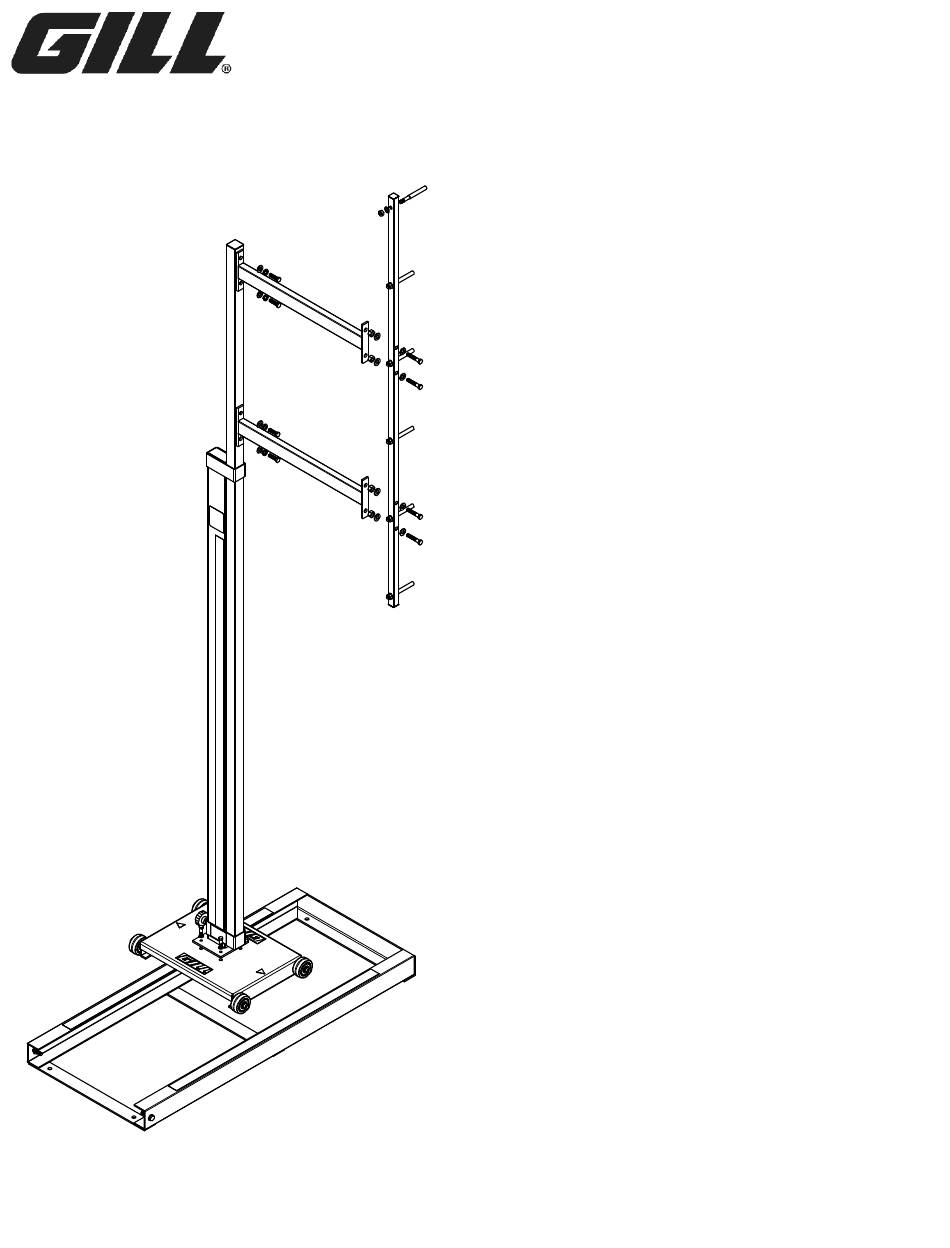

7100 - ESSENTIALS POLE VAULT STANDARD
ASSEMBLY INSTRUCTIONS

Specifications:

The upright and riser are made of steel tubing. The
bases, uprights and risers are powder coated black.
The offsets are powder coated white. Height adjustment
from 6' to 16' reading English and Metric. Upright
detaches from base rails for storage. Wide stance base
for added stability. 8 base anchors included. Meets
High School and NCAA specifications.
The base measures 21" x 48" and allows the standard
to adjust from 0"-32" behind the 'zero' line.

Operation:

To adjust the height of the riser, loosen the clamping
knob, position the riser at the desired height, and
re-tighten the knob.
Caution: Over-tightening the knob can result in
damaged threads, which may cause the knob to seize
in place and may require a new knob and/or riser.

Tools you will need:

17mm wrench
13mm wrench
Crescent wrench
7/19/2020
INST7100
Page 1 of 6
