Gill 7040 Assembly Instructions

www.gillathletics.com
800-637-3090
1
Riser
3
4

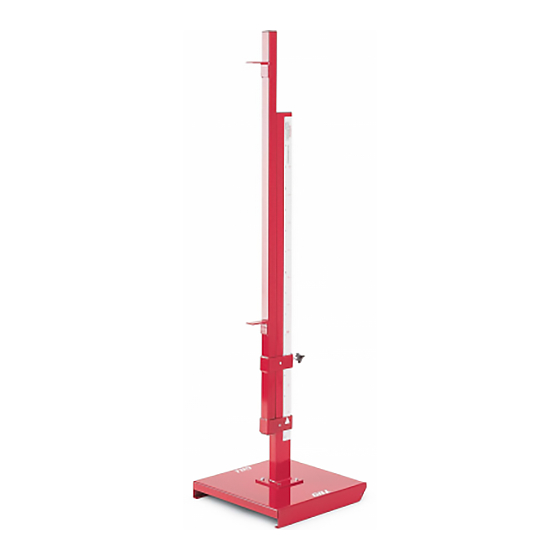

7040 - SCHOLASTIC HIGH JUMP STANDARDS
First attach the wheels and the rubber feet to the base (see page 2).

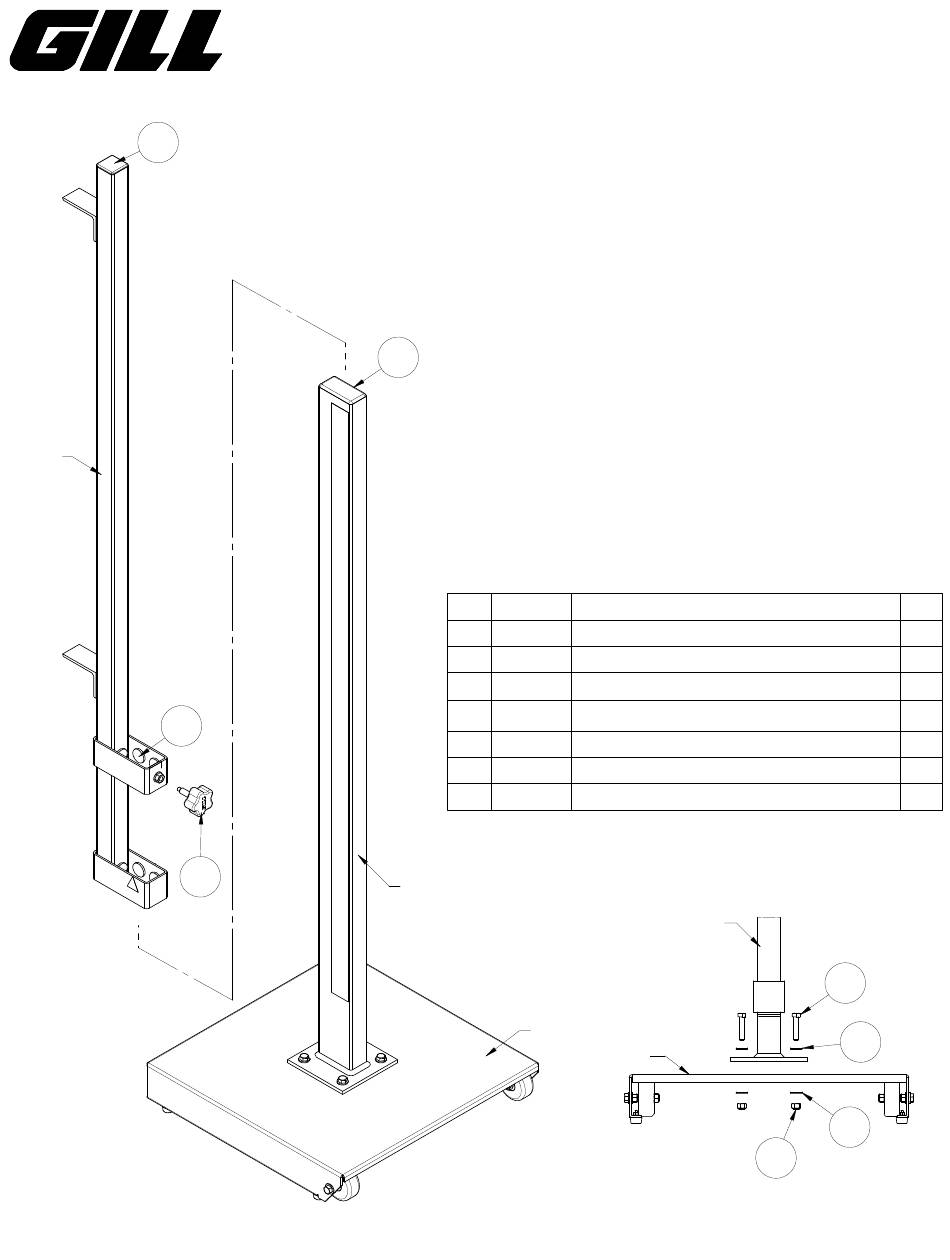

Second fasten the upright to the base as shown below.
To adjust the height of the riser, loosen the knob (1), position the
riser at the desired height, and re-tighten the knob. Read the height
scale at the top of the lower riser guide as indicated by the white
pointer decal. The scale on one side of the upright is for the lower
bar rest and the scale on the other side is for the higher bar rest.
The scale reads in both feet & inches and metric (centimeters).
2
Caution: Over-tightening the knob can result in damaged threads,
which may cause the knob to seize in place and may require a new
knob and/or riser.
Tools required:
(2) 1/2" Wrenches
(1) Flat head screwdriver
Upright
Copyright  2008 by Gill Athletics. All rights reserved.
ASSEMBLY INSTRUCTIONS
PART # DESCRIPTION
1 M476 1.5" Sq End Plug, Black (14-20 gage)
2 M477 1.5" x 3" End Plug, Black, (10-14 ga)
3 M2015 Felt Dot, 1" dia x 1/8" thick, adhesive backed
4 M2861 Knob 3/8"-16 x 1", Nylon tip, black TPE, Logo
5 M2207 5/16"-18 x 1.5" Hex Bolt
6 M2273 Washer, Flat, 5/16
7 M1254 5/16"-18 Nylock Hex Nut
Upright/Riser
Base
Base
QTY.
2
1
12
1
4
12
8
5
6
6
7
GILL ATH
10/26/2012
7040_inst1
