Gill 907390-20 Assembly Instructions Manual

20', 15', and 12' ball stops

Advertisement

www.gillathletics.com
800-637-3090

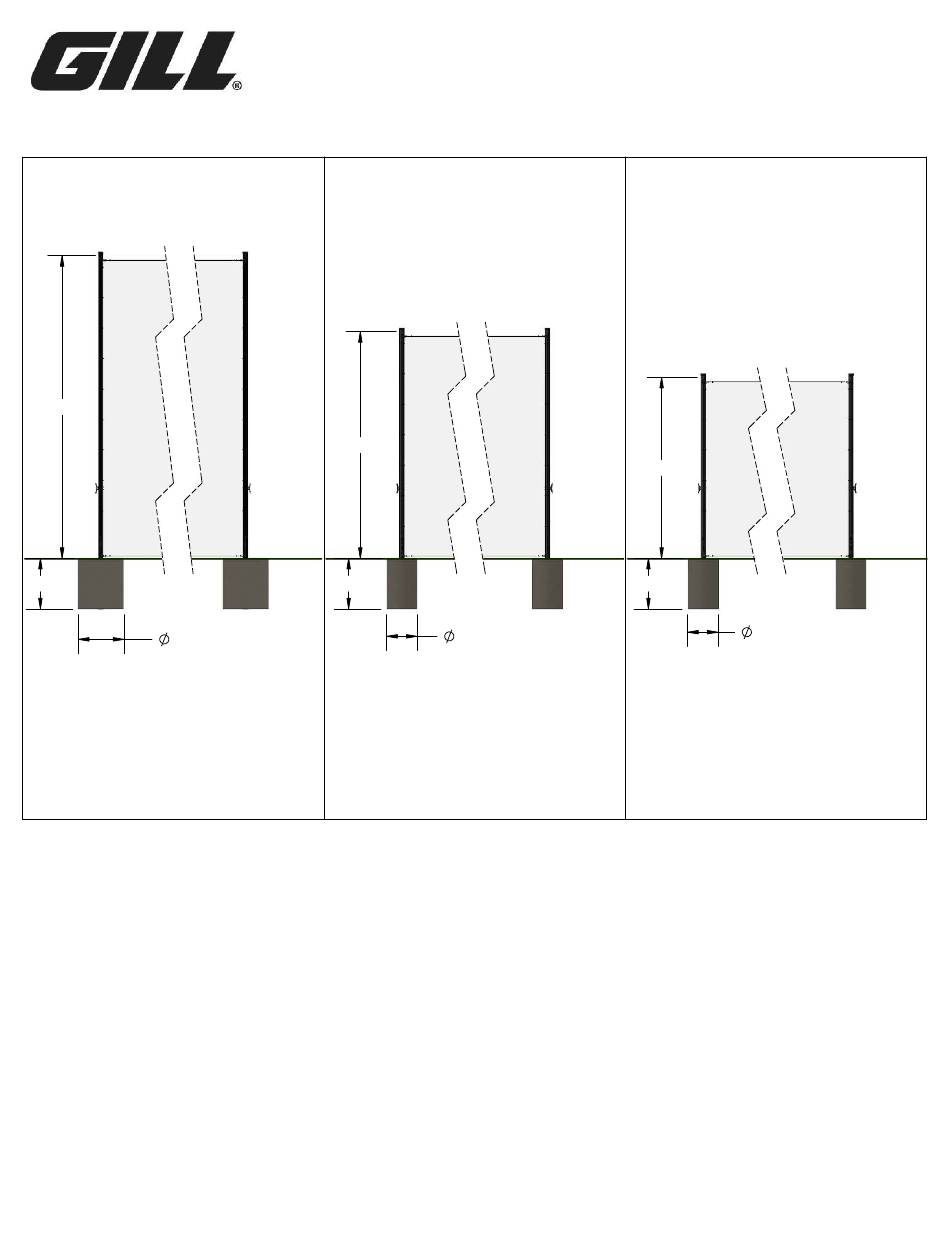

20'-0"
40"
3'-0"
907390-20
20' BALL STOP;
STRAIGHT POLE
Read all of the instructions before beginning. Make sure you have
all parts and tools you will need. Consult local codes and guidelines.
Local conditions may require a different procedure, the following
instructions should be considered recommended minimums.
CAUTION - contact your local utility companies to locate buried
electrical, gas, and water lines before digging holes for footings.
Also check for overhead utilities.
ALWAYS LOWER NETS IN HIGH WIND STORMS
Copyright  2021 by Gill Athletics.
All rights reserved.
15'-0"
40"
2'-0"
907390-15
15' BALL STOP;
STRAIGHT POLE
20', 15', AND 12' BALL STOPS
ASSEMBLY INSTRUCTIONS
12'-0"
40"
2'-0"
907390-12
12' BALL STOP;
STRAIGHT POLE
6/22/2021
INST739020
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 907390-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gill 907390-20

  • Page 1 CAUTION - contact your local utility companies to locate buried electrical, gas, and water lines before digging holes for footings. Also check for overhead utilities. ALWAYS LOWER NETS IN HIGH WIND STORMS 6/22/2021 INST739020 Copyright  2021 by Gill Athletics. All rights reserved. Page 1 of 7...
  • Page 2 The footer size is to be determined by the architect/engineer and is based on local codes and soil conditions. SLEEVE ALIGNMENT HOLE GROUND LEVEL 40" ENSURE PROPER STOP BOLT ORIENTATION SEE PAGE 1 Concrete must be allowed to fully cure before continuing 1/17/2020 INST739020 Copyright 2020 by Gill Athletics. All rights reserved. Page 2 of 7...
  • Page 3 ON EITHER SIDE OF POLE DETERMINE LOCATION IN FIELD M2244 CLEAT M1232 NYLOCK NUT HDWE53003000 EYE NUT HDWE01320 5/16" x 4-1/2" BOLT HDWE040010E0 FLATWASHER M2591 LOCKWASHER 1/17/2020 INST739020 Copyright 2020 by Gill Athletics. All rights reserved. Page 3 of 7...
  • Page 4 VINYL COATING ON THE CABLE MUST BE REMOVED BEFORE INSTALLING ROPE CLAMPS. INSTALL CLAMPS SO THE SADDLE IS ON THE LONG (LIVE) END AND THE U-BOLT IS ON THE SHORT (DEAD) END. VINYL COATING 1/17/2020 INST739020 Copyright 2020 by Gill Athletics. All rights reserved. Page 4 of 7...
  • Page 5 Slide the plastic tube over the turnbuckle. PULY00100 PULLEY M2223 SNAP HOOK ROPE0014X VERTICAL SUPPORT CABLE TUBR00952 PLASTIC TUBE SLIDE OVER TURNBUCKLE HDWE57044 TURNBUCKLE M2223 SNAP HOOK 11/10/2020 INST739020 Copyright  2020 by Gill Athletics. All rights reserved. Page 5 of 7...
  • Page 6 6. Cut and form the bottom cable. Weave it in and out through every 5th opening just below the edge of the net. M2223 SNAP HOOK M2123 BOTTOM CABLE 1/17/2020 INST739020 Copyright 2020 by Gill Athletics. All rights reserved. Page 6 of 7...
  • Page 7 ! WARNING: This product can expose you to Titanium Dioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov. 1/17/2020 INST739020 Copyright 2020 by Gill Athletics. All rights reserved. Page 7 of 7...

This manual is also suitable for:

907390-15907390-12
