Gill 730183 Instructions

Fusion 8x10 starting block

www.gillathletics.com

800-637-3090

Pedal pads are available in the following colors:

- Royal Blue

- Red

- Orange

- Black

- Green

Carrying handle

Precise and consistent foot placement is

ensured using the integrated pedal markings.

Pedals are adjustable to 30°, 40°, 50°, and 60°

settings. Angled spikes in the base of the pedals

guarantee a start with absolutely no slipping.

Built in handle allows for easy carriage.

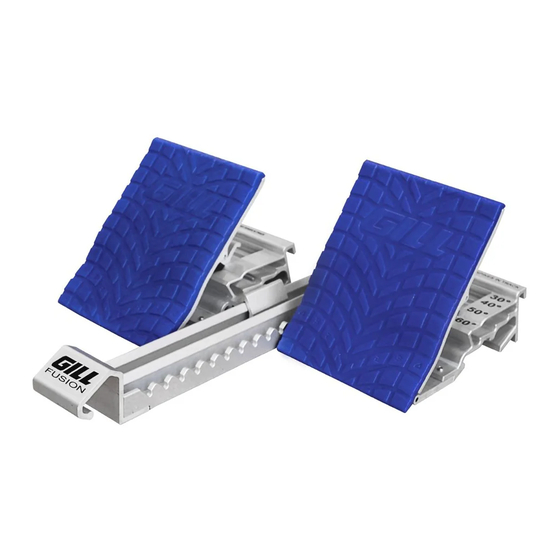

730183 - FUSION 8x10 STARTING BLOCK

False start bracket

Pedal pads are 8" x 10"

INSTRUCTIONS

Pedal angle adjusts

to four positions.

2/18/2022

inst730183

Page 1 of 3

Table of Contents

Need help?

Do you have a question about the 730183 and is the answer not in the manual?

Page 1 730183 - FUSION 8x10 STARTING BLOCK INSTRUCTIONS www.gillathletics.com 800-637-3090 Pedal pads are available in the following colors: - Royal Blue - Red False start bracket - Orange - Black - Green Pedal angle adjusts to four positions. Pedal pads are 8" x 10"...
Page 2 730183 - FUSION 8x10 STARTING BLOCK INSTRUCTIONS www.gillathletics.com 800-637-3090 Pedal Plate The FUSION starting block is shipped unassembled. The following tools are needed: Pedal Pad - Needle Nose Pliers - Spike Wrench - Allen Key (provided) 1. Pedal pads Set the angle of the pedal to the 60 position.
Page 3 730183 - FUSION 8x10 STARTING BLOCK INSTRUCTIONS www.gillathletics.com 800-637-3090 Replacement Parts 7301812 Includes: Right & Left Pedal with Pedal to Rail Connectors 7301831C02 - Royal Blue Handle & Rear Bracket 7301831C03 - Red Handle & Rear Bracket Screws 7301831C05 - Orange...
