Pedal pads are available in the following colors:
- Royal Blue
- Red
- Orange
- Black
- Green
Carrying handle
Precise and consistent foot placement is
ensured using the integrated pedal markings.
Pedals are adjustable to 30°, 40°, 50°, and 60°
settings. Angled spikes in the base of the pedals
guarantee a start with absolutely no slipping.
Built in handle allows for easy carriage.
Copyright 2021 by Gill Athletics.
All rights reserved.
730182 - FUSION 8x8 STARTING BLOCK

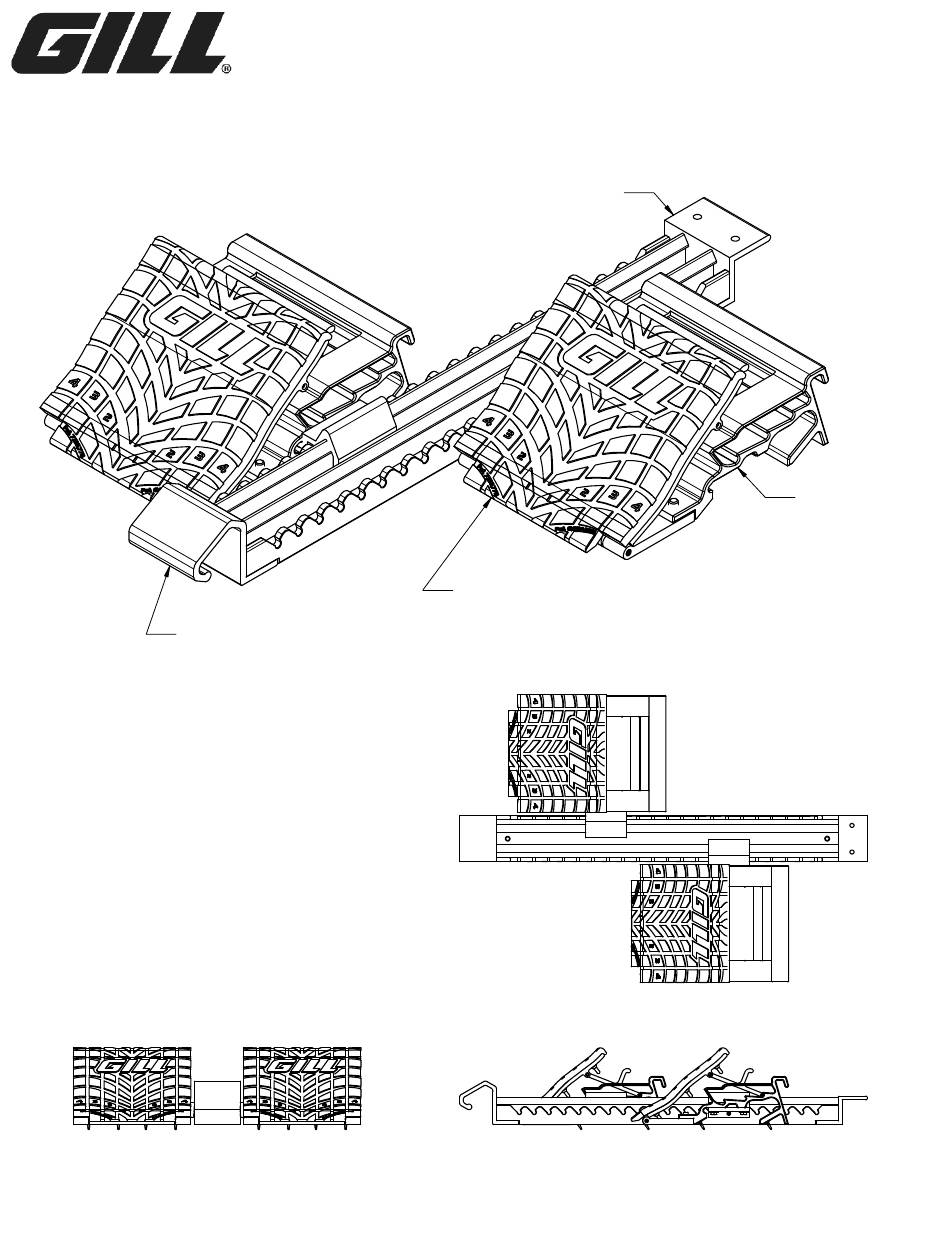

False start bracket
Pedal pads are 8" x 8"
INSTRUCTIONS
Pedal angle adjusts
to four positions.
12/2/2021
INST730182
Page 1 of 3
