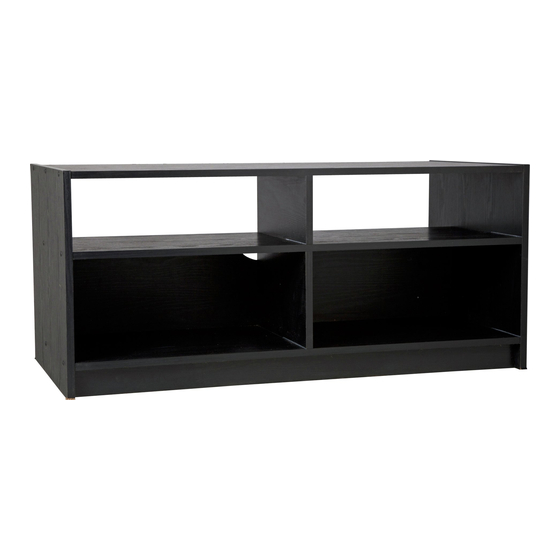

Modular TV Unit
Assembly Instructions
Dimensions
Width - 103cm
Depth - 50cm
Height - 46cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
- Please keep for future reference
Ref. no. 609/2256, 609/2263, 609/2270, 609/2287, 609/2294, 609/3516, 609/3602 Date: 21/04/10
609/2256
609/2263
609/2270
609/2287
609/2294
609/3516
609/3602
Advertisement
Related Manuals for Argos 609/2256
Summary of Contents for Argos 609/2256
- Page 1 Height - 46cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Ref. no. 609/2256, 609/2263, 609/2270, 609/2287, 609/2294, 609/3516, 609/3602 Date: 21/04/10...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand on the product, • We do not components and tools listed on this could cause damage. recommend the pages 2 and 3. - Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the panels listed below Table Top Panel (99.8 x 49.9cm) Left Side Panel (50 x 46cm) Lower Central Panel (35.9 x 20.9cm) Bottom Panel (99.8 x 36cm)
- Page 4 Components - Fittings Note: The quantities below are the correct amount to complete the assembly. in some cases mor may be supplied than are required. Plastic Support x 4 14mm Screw x 8 Long Wooden Dowel x 2 50mm Screw x 16 Short Wooden Dowel x 2 Screw Cover x 14 20mm Screw x 8...
- Page 5 Assembly Instructions Step 1 Attaching front panel the Plastic Supports onto the Front Panel Front Panel onto the Bottom Panel Step 2 Attaching middle shelf back edge Use Long Wooden Central Panel Lower Central Panel onto the Middle Shelf Two persons assembly is required.
- Page 6 Assembly Instructions Step 3 Attaching bottom panel back edge Bottom Panel onto the Lower Central Panel Two persons assembly is required. Bottom Step 4 Attaching side panels Left Side Panel Right Side Panel onto the unit. Use Screw Covers cover the Screw Heads. back edge Two persons assembly is required.
- Page 7 Assembly Instructions Step 5 Attaching table top panel Insert Short Wooden Dowels into the Table Top Panel Carefully place the Table Top Panel onto the unit.
- Page 8 Assembly Instructions Step 5 - continued Table Top Panel onto the unit. Use Screw Covers cover the Screw Heads. Step 6 Fixing back panel Back Panel onto the unit.
- Page 9 Assembly Instructions Step 7 Finishing the unit Note: It would be useful to ask someone to help you at the stage. With help, place the unit in the intended position. Assembly is complete. Customer Helpline: 08456 400800 If you need help or have damaged or missing parts, call the...
