The following instructions cover the LSR and LSG single line indoor fixed laser range. (LSR-5MW-1,
LSR-10MW-1, LSG-5MW-1 and LSG-10MW-1)
These lasers produce a fixed line that can be directed exactly where you want them for various
engineering and manufacturing requirements.

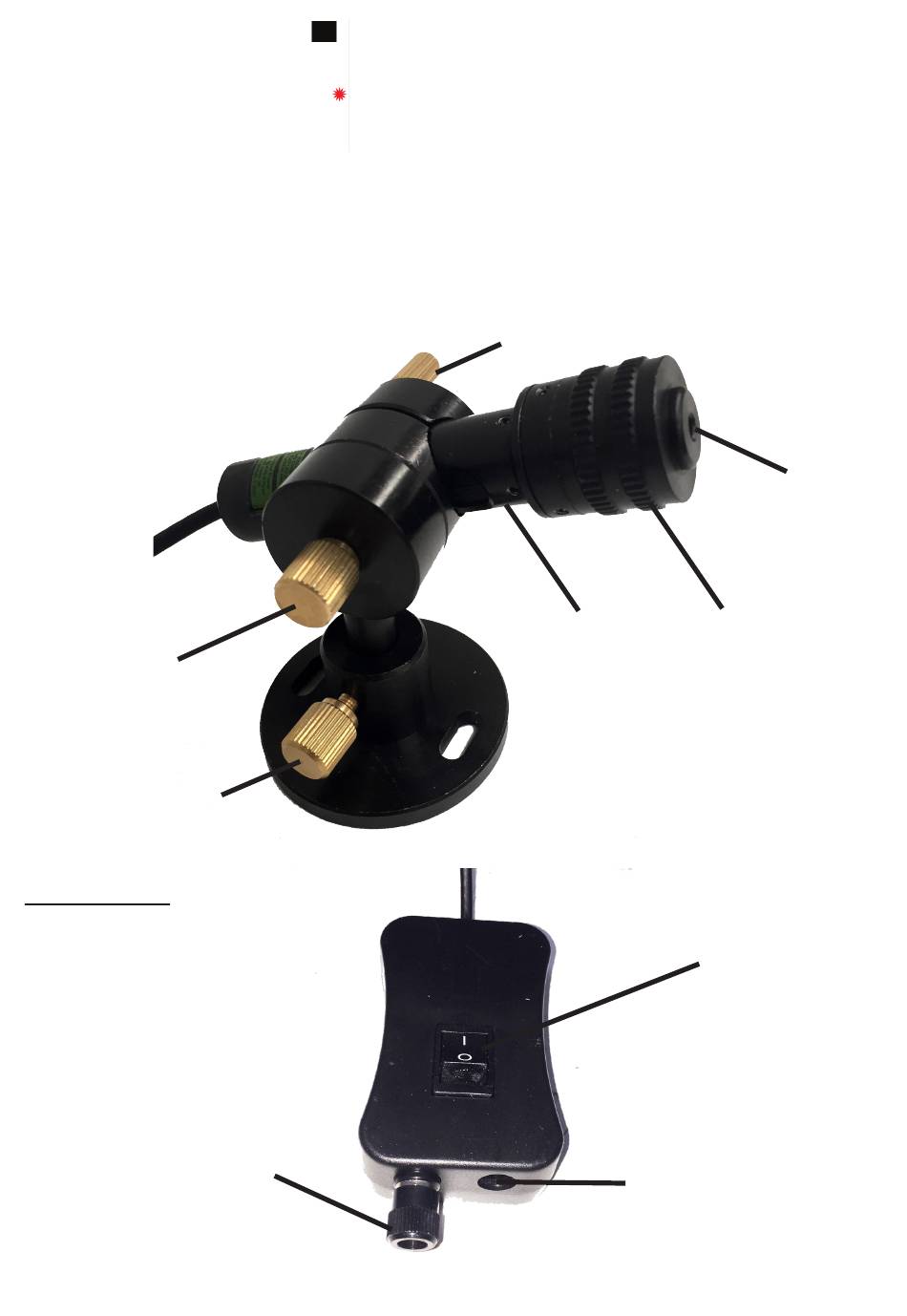

Pivot Up/Down
Adjustment
Rotation Adjustment
CONTROL BOX
Earth Connector if
required
DA530L
TM
LSR-LSG Single Line Lasers
Digital Angle
Instructions
Laser Alignment Adjustment
Laser Line Focus
12V input from
Mains Adaptor or
12V cable
Laser Line Output
Laser Line Length
Adjustment
Power Switch
Advertisement
Table of Contents
Related Manuals for RedBack Lasers LSR Series
Summary of Contents for RedBack Lasers LSR Series
- Page 1 DA530L Back LSR-LSG Single Line Lasers Digital Angle Lasers Instructions The following instructions cover the LSR and LSG single line indoor fixed laser range. (LSR-5MW-1, LSR-10MW-1, LSG-5MW-1 and LSG-10MW-1) These lasers produce a fixed line that can be directed exactly where you want them for various engineering and manufacturing requirements.
- Page 2 Set up Plug the supplied mains adaptor or 12v cigarette lighter cable into the control box power socket as shown overleaf. Power the laser on using the rocker switch located on the front of the control box. The laser should now be visible from the output, making sure not to look directly at the output.
