- Page 2 • Do not disassemble the instrument or attempt to perform any internal servicing. Repairs and service should be performed only authorised service centres of Redback Lasers. • This instrument complies with the safety Classification standards of laser radiation. D27xR CAUTION: Class 2 laser <1mW at 635nm.
- Page 3 D27xx INTRODUCTION Congratulations on purchasing one of the RedBack D27xx range of Auto Levelling multi dot laser levels. These instructions covers the operation of the following RedBack models D272R, D272G, D273R, D273G and D275R . Depending on which model you purchased you will have either 2, 3 or 5 laser dots on your laser level.

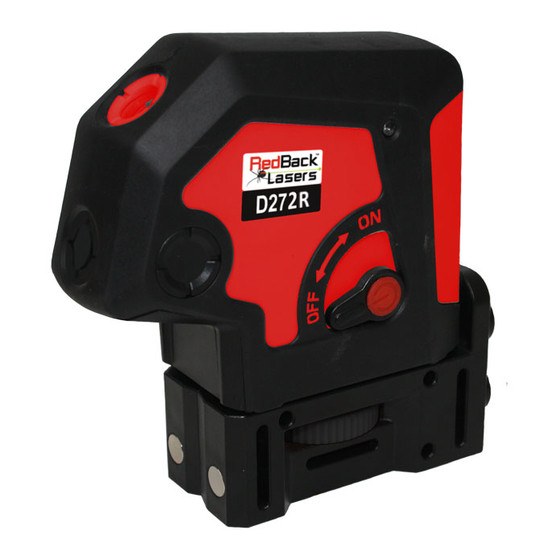

- Page 4 D27xx DIAGRAMS 3L360R & 3L360G Laser Units 1. Laser Output Windows (No. depends on model) 2. Rubberised Casing 3. Pendulum Locking & Power Knob 4. Base Attachment Screw 5. Magnetic Mounting...
- Page 5 Magnetic Base Attachment Screw Strong Magnets 5/8” Tripod Thread 1/4” Camera Tripod Thread Anti Slip Rubber Pads www.redbacklasers.com.au...
- Page 6 D27xx OPERATING INSTRUCTIONS Battery Instructions The D27xx models operate with 3x standard “AA” size Alkaline batteries. Use a small coin to open the rear battery cover and insert batteries as indicated inside the battery compartment. Make sure they are inserted correctly as damage may result from incorrectly fitted batteries.
- Page 7 D27xx OPERATING INSTRUCTIONS Turning On the D27xx To power up, simply unlock the pendulum by moving it to the “ON” position, this will automatically self level the laser and power up all the laser dots at the same time. For the D272R and D272G models you will see two laser dots one plumb up and one plumb down.
- Page 8 D27xx TECHNICAL SPECIFICATIONS Technical Specifications D272R, D273R & D275R - Red Beam Laser Wavelength 635nm Red Laser Class 2 <1mW Visible Range (light dependent) Up To 30m Accuracy ±2mm/10m Number Dots D272R x2, D273R x3, D275R x5 Self Levelling Range ±4.5 Temperature Range C - +45...
- Page 9 D272G & D273G - Green Beam Laser Wavelength 522nm Green Laser Class 3r <5mW Visible Range (light dependent) Up To 60m Accuracy ±2mm/10m Number Dots D272G x2, D273G x3 Self Levelling Range ±4.5 Temperature Range C - +40 IP Dust Water Resistance IP54 Power 3 x “AA”...
- Page 10 • Calibration & Self Check All Redback Lasers have been checked for calibration and certified by one of our technicians here in Australia prior to despatch and should under normal conditions not go out of calibration. A calibration certified sticker with the date and name of technician is located on the laser itself.
- Page 11 www.redbacklasers.com.au...
- Page 12 (03) 5240 3999 “You” or “Consumer” refers to the initial purchaser of the product. “Product” refers to goods manufactured by or for CMI Industries Pty Ltd under the brands of RedBack Lasers, Level1Laser and CMI Lasers. “Material” refers to material or component used in the construction and manufacture of the product.
