Summary of Contents for RedBack Lasers PRO5
- Page 2 CONTENTS User Safety Introduction and PRO5™ Accessories PRO5™Diagram Operating Instructions Batteries Power and turning On Magnetic Base Applications Calibration Self Check & Technical Specifications Care & Maintenance, Trouble Shooting Warranty User Safety • Laser output sign lies near the output aperture.

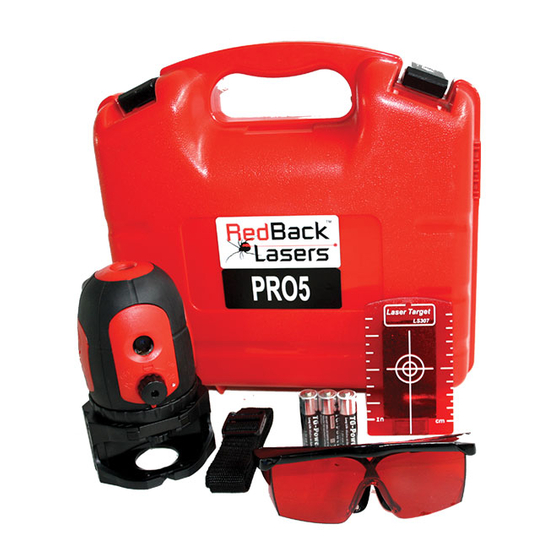

- Page 3 The PRO5™ is automatic levelling and features a secure pendulum lock to prevent accidental damage when not in use. The PRO5™ is ideal for all types of indoor installation work whether its electricians transcribing points from floor to ceiling, air conditioning installers, windows and garage doors.
-
Page 4: Laser Unit
PRO5 DIAGRAMS PRO5 Laser Unit 1. Laser Output Windows 2. Heavy Duty Rubberised Casing 3. Power LED 4. Pendulum Lock & Power On/Off 5. Magnetic Base 6. Battery Compartment 7. Base Locking Screw 8. Attachment Strap Slots Magnetic Base Base Slide Out Point Strong Magnets 5/8”... -
Page 5: Battery Instructions
PRO5 OPERATING INSTRUCTIONS Battery Instructions The PRO5 operates on 3 x standard “AA” batteries, simply lever open the battery compartment where indicated and insert batteries in the direction shown. When the power LED next to the pendulum locking knob flashes, the batteries need replacing. - Page 6 “ON” position at which point the 5 laser dots and power LED all turn on simultaneously. If the 5 laser dots flash together with a loud beeping sound then the PRO5 is out of self levelling range and the laser housing needs to be set up more level until it is in self levelling range.
- Page 7 “Base Locking Screw” secures the magnetic base onto the PRO5 The magnetic base has two positions; first with the laser plumb dot located within the inner cut out circle of the base and secondly with the PRO5 slid out so the plumb dot is located in the cut out “V” on the front of the base.
- Page 8 The PRO5 can even be useful outdoors as long as the conditions are not too bright.
-
Page 9: Technical Specifications
We at Redback Lasers provide a once off free calibration and check within the duration of the warranty period see page 12 for details. -
Page 10: Care And Maintenance
• Trouble Shooting - FAQ I hear a continuous beeping when turned on! This is the out of level alarm indicating that the PRO5 outside of self levelling range, re level the laser housing and try again. The Laser does not power up! Check the pendulum lock has been unlocked, rotated into the “ON”... - Page 11 Notes www.redbacklasers.com.au...
- Page 12 “Workmanship” refers to handling, assembly and manufacturing processes done by or for CMI Industries Pty Ltd in order to manufacture the products. “Warranty Period” For the PRO5 Two Years. Warranty period is from original purchase date, no extension is made in the event of warranty replacement products supplied or time spent being repaired.
